AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

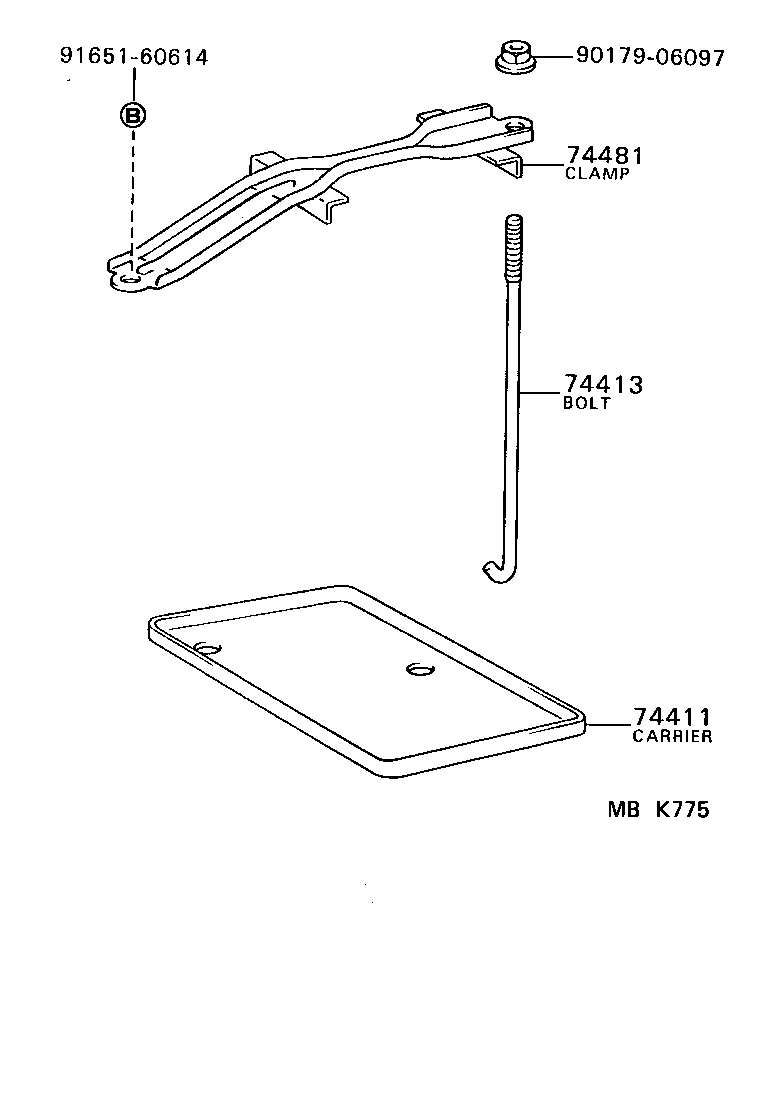

Click highlighted areas on diagram

diagram 74411 74413 74481 9017906097 9165160614
Part # Description Qty Price
74411 - CARRIER, BATTERY
74431-01010

AE82

 1
74413 - BOLT, BATTERY CLAMP
74451-01010

AE82

 1
74481 - CLAMP, BATTERY HOLD DOWN
74404-01010

AE82

 1
Common parts
90179-06097
91651-60614
