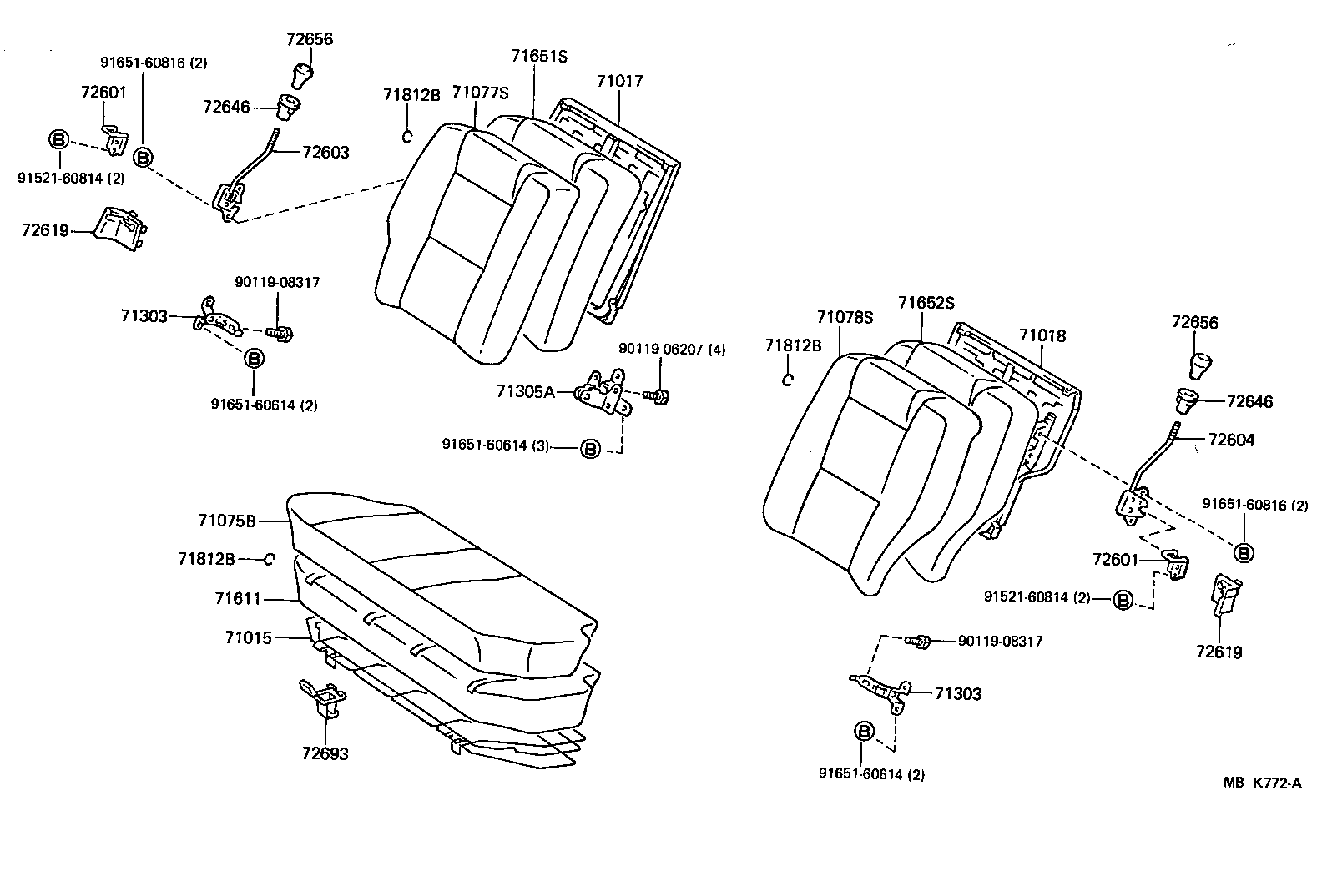

Toyota Corolla fx AE82 REAR SEAT & SEAT TRACK

Part #	Description	Period	Qty
71015 - FRAME SUB-ASSY, REAR SEAT CUSHION
71015-01010	AE82	09/1986 - 08/1988	1
71017 - FRAME SUB-ASSY, REAR SEAT BACK, RH
71017-01020	AE82	09/1986 - 08/1988	1
71018 - FRAME SUB-ASSY, REAR SEAT BACK, LH
71018-01020	AE82	09/1986 - 08/1988	1
71075B - COVER, REAR SEAT CUSHION (FOR BENCH TYPE)
71075-02010J7	AE82..Q DARK BLUE,DARK BLUE	09/1986 - 09/1987	1
71075-02011S3	AE82..Q DARK BLUE,DARK BLUE	09/1987 - 08/1988	1
71075-02010R7	AE82..Q CHARCOAL,CHARCOAL	09/1986 - 09/1987	1
71075-02011G5	AE82..Q CHARCOAL,CHARCOAL	09/1987 - 08/1988	1
71077S - COVER, REAR SEAT BACK, RH (FOR SEPARATE TYPE)
71077-02010R7	AE82..Q CHARCOAL,CHARCOAL	09/1986 - 09/1987	1
71077-02011S3	AE82..Q DARK BLUE,DARK BLUE	09/1987 - 08/1988	1
71077-02011G5	AE82..Q CHARCOAL,CHARCOAL	09/1987 - 08/1988	1
71077-02010J7	AE82..Q DARK BLUE,DARK BLUE	09/1986 - 09/1987	1
71078S - COVER, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71078-02010R7	AE82..Q CHARCOAL,CHARCOAL	09/1986 - 09/1987	1
71078-02010J7	AE82..Q DARK BLUE,DARK BLUE	09/1986 - 09/1987	1
71078-02011G5	AE82..Q CHARCOAL,CHARCOAL	09/1987 - 08/1988	1
71078-02011S3	AE82..Q DARK BLUE,DARK BLUE	09/1987 - 08/1988	1
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-12030	AE82	09/1986 - 08/1988	2
71303 - HINGE SUB-ASSY, REAR SEAT BACK
71303-12030	AE82	09/1986 - 08/1988	2
71305A - HINGE SUB-ASSY, REAR SEAT BACK, CENTER
71305-12030	AE82	09/1986 - 08/1988	1
71611 - PAD, REAR SEAT CUSHION
71611-01010	AE82	09/1986 - 08/1988	1
71651S - PAD, REAR SEAT BACK, RH(FOR SEPARATE TYPE)
71651-02010	AE82..GTS,Q	09/1986 - 08/1988	1
71652S - PAD, REAR SEAT BACK, LH(FOR SEPARATE TYPE)
71652-02010	AE82..GTS,Q	09/1986 - 08/1988	1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90080-46007	AE82	09/1986 - 08/1988	1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90080-46007	AE82	09/1986 - 08/1988	1
71812B - CLIP(FOR REAR SEAT CUSHION COVER)
90080-46007	AE82	09/1986 - 08/1988	1
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-12080	AE82	09/1986 - 08/1988	2
72601 - STRIKER SUB-ASSY, REAR SEAT LOCK
72601-12080	AE82	09/1986 - 08/1988	2
72603 - LOCK SUB-ASSY, REAR SEAT BACK, RH
72630-12120	AE82	09/1986 - 08/1988	1
72604 - LOCK SUB-ASSY, REAR SEAT BACK, LH
72640-12110	AE82	09/1986 - 08/1988	1
72619 - COVER, REAR SEAT BACK LOCK STRIKER
72615-01010P8	AE82 RH,CHARCOAL,CHARCOAL	09/1986 - 08/1988	1
72616-01010J9	AE82 LH,DARK BLUE,DARK BLUE	09/1986 - 08/1988	1
72616-01010P8	AE82 LH,CHARCOAL,CHARCOAL	09/1986 - 08/1988	1
72615-01010J9	AE82 RH,DARK BLUE,DARK BLUE	09/1986 - 08/1988	1
72619 - COVER, REAR SEAT BACK LOCK STRIKER
72615-01010P8	AE82 RH,CHARCOAL,CHARCOAL	09/1986 - 08/1988	1
72616-01010J9	AE82 LH,DARK BLUE,DARK BLUE	09/1986 - 08/1988	1
72616-01010P8	AE82 LH,CHARCOAL,CHARCOAL	09/1986 - 08/1988	1
72615-01010J9	AE82 RH,DARK BLUE,DARK BLUE	09/1986 - 08/1988	1
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-01010P8	AE82 CHARCOAL,CHARCOAL	09/1986 - 08/1988	2
72646-01010J9	AE82 DARK BLUE,DARK BLUE	09/1986 - 08/1988	2
72646 - GROMMET, REAR SEAT BACK STOP BUTTON
72646-01010P8	AE82 CHARCOAL,CHARCOAL	09/1986 - 08/1988	2
72646-01010J9	AE82 DARK BLUE,DARK BLUE	09/1986 - 08/1988	2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72661-01010P8	AE82 CHARCOAL,CHARCOAL	09/1986 - 08/1988	2
72661-01010J9	AE82 DARK BLUE,DARK BLUE	09/1986 - 08/1988	2
72656 - BUTTON, REAR SEAT BACK STOP RELEASE
72661-01010P8	AE82 CHARCOAL,CHARCOAL	09/1986 - 08/1988	2
72661-01010J9	AE82 DARK BLUE,DARK BLUE	09/1986 - 08/1988	2
72693 - HOOK, REAR SEAT CUSHION LOCK
72693-01010	AE82	09/1986 - 08/1988	2
Common parts
90119-06207
90119-08317
91521-60814
91651-60614
91651-60816

AE82L-EGMQFA (1986)

(8609- )
