AE82L-EGMQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )

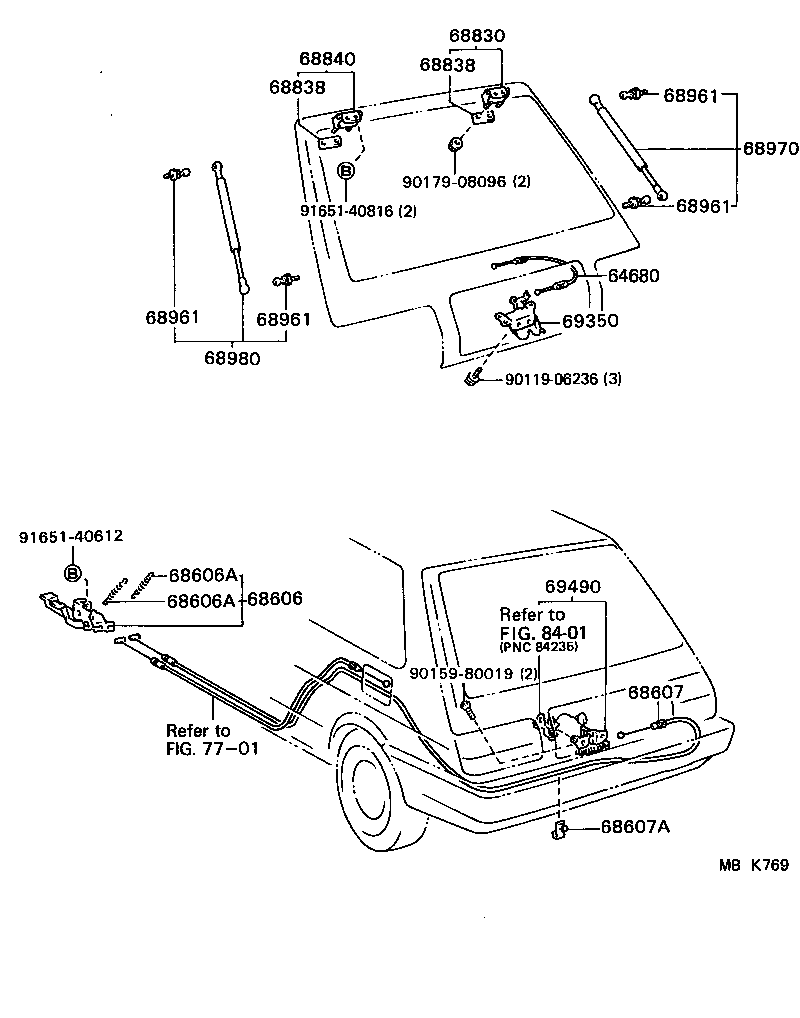

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 64680 - CABLE ASSY, BACK DOOR LOCK CONTROL | ||||
| 64680-02010 |
AE82 |
1 | ||
| 68606 - LEVER SUB-ASSY, BACK DOOR LOCK OPEN | ||||
| 64606-12050 |
AE82 |
1 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
AE82 |
2 | ||
| 68606A - SPRING, TENSION(FOR BACK DOOR LOCK OPEN LEVER) | ||||
| 90506-09034 |
AE82 |
2 | ||
| 68607 - CABLE SUB-ASSY, BACK DOOR LOCK CONTROL | ||||
| 64607-02010 |
AE82 |
1 | ||
| 68607A - CLAMP, NO.1(FOR BACK DOOR LOCK CONTROL CABLE) | ||||
| 69749-12010 |
AE82 |
1 | ||
| 68830 - HINGE ASSY, BACK DOOR, RH | ||||
| 68801-12020 |
AE82 |
1 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-14021 |
AE82 |
2 | ||
| 68838 - PAD, BACK DOOR HINGE, NO.1 | ||||
| 68838-14021 |
AE82 |
2 | ||
| 68840 - HINGE ASSY, BACK DOOR, LH | ||||
| 68801-12020 |
AE82 |
1 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-16010 |
AE82 |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-16010 |
AE82 |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-16010 |
AE82 |
4 | ||
| 68961 - BOLT, BACK DOOR STAY | ||||
| 68961-16010 |
AE82 |
4 | ||
| 68970 - STAY ASSY, BACK DOOR, RH | ||||
| 68950-19545 |
AE82 |
1 | ||
| 68980 - STAY ASSY, BACK DOOR | ||||
| 68950-19545 |
AE82 |
1 | ||
| 69350 - LOCK ASSY, BACK DOOR | ||||
| 69350-02010 |
AE82 |
1 | ||
| 69490 - STRIKER ASSY, BACK DOOR LOCK | ||||
| 69430-02010 |
AE82 |
1 | ||
| Common parts | ||||
| 90119-06236 | ||||
| 90159-80019 | ||||
| 90179-08096 | ||||
| 91651-40612 | ||||
| 91651-40816 | ||||
| Linked diagrams | ||||
| 7701 | ||||
| 8401 | ||||
