AE82L-EGMQFA (1986)
Toyota Corolla Fx
(8609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

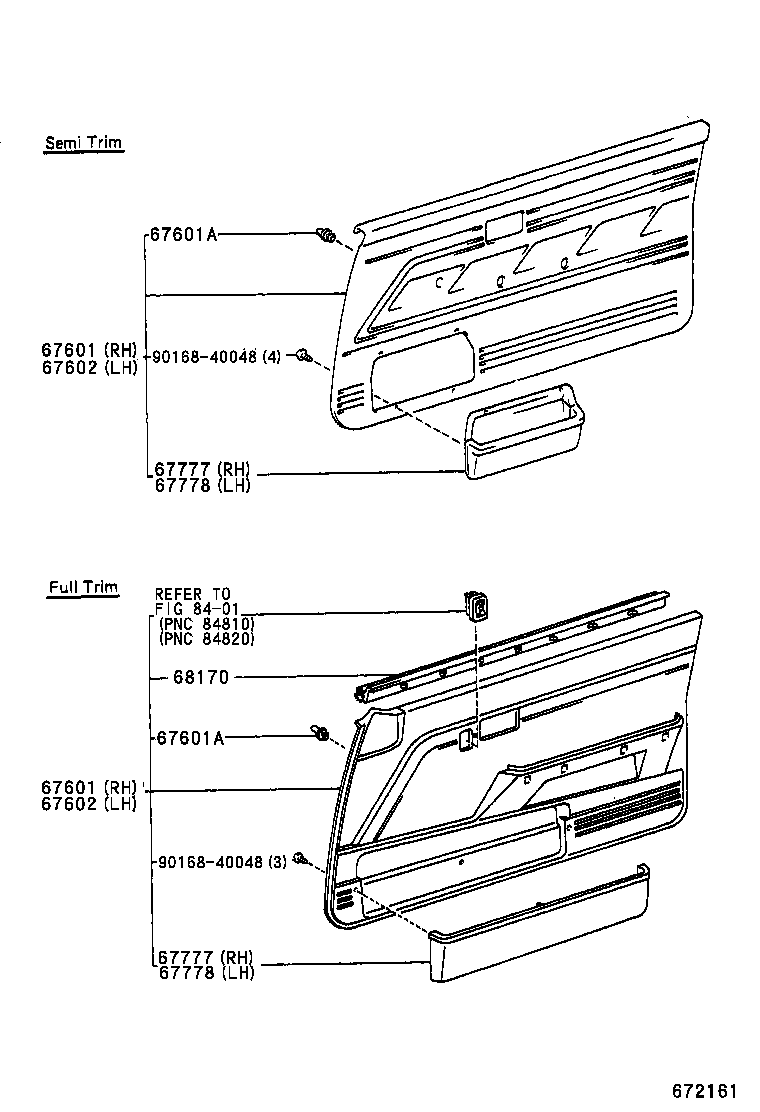

| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-02010J7 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67610-02011G5 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67610-02010R7 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67610-02011S3 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-02010J7 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67610-02011G5 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67610-02010R7 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67610-02011S3 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE82 |
24 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE82 |
24 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-02010R7 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67620-02011G5 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67620-02010J7 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67620-02011S3 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-02010R7 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67620-02011G5 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67620-02010J7 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67620-02011S3 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-02010J9 |
AE82..GTS,Q DARK BLUE,DARK BLUE |
1 | ||
| 67777-02010P8 |
AE82..GTS,Q CHARCOAL,CHARCOAL |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-02010J9 |
AE82..GTS,Q DARK BLUE,DARK BLUE |
1 | ||
| 67777-02010P8 |
AE82..GTS,Q CHARCOAL,CHARCOAL |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-02010J9 |
AE82..GTS,Q DARK BLUE,DARK BLUE |
1 | ||
| 67777-02010P8 |
AE82..GTS,Q CHARCOAL,CHARCOAL |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-02010J9 |
AE82..GTS,Q DARK BLUE,DARK BLUE |
1 | ||
| 67777-02010P8 |
AE82..GTS,Q CHARCOAL,CHARCOAL |
1 | ||
| 68170 - WEATHERSTRIP ASSY, FRONT DOOR GLASS, INNER | ||||
| 68171-12100 |
AE82 |
2 | ||
| Common parts | ||||
| 90168-40048 | ||||
| Linked diagrams | ||||
| 8401 | ||||
(8609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

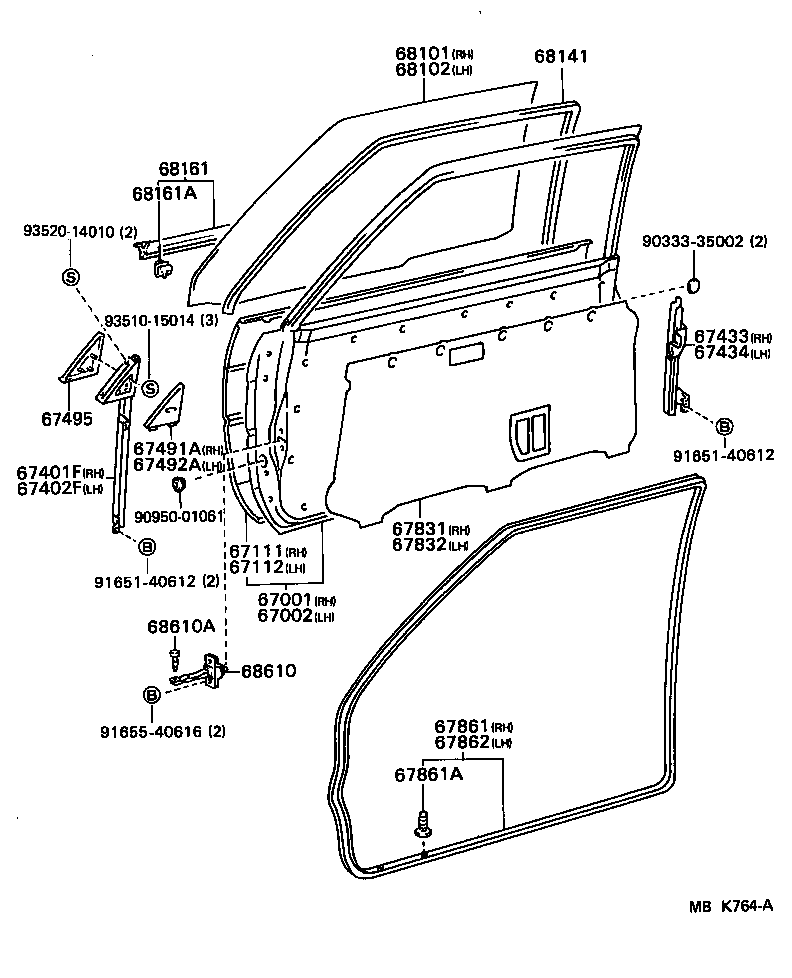

| 67001 - PANEL SUB-ASSY, FRONT DOOR, RH | ||||
| 67001-02010 |
AE82 |
1 | ||
| 67002 - PANEL SUB-ASSY, FRONT DOOR, LH | ||||
| 67002-02010 |
AE82 |
1 | ||
| 67111 - PANEL, FRONT DOOR, OUTER RH | ||||
| 67111-12431 |
AE82 |
1 | ||
| 67112 - PANEL, FRONT DOOR, OUTER LH | ||||
| 67112-12421 |
AE82 |
1 | ||
| 67401F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER RH | ||||
| 67401-12251 |
AE82 |
1 | ||
| 67402F - FRAME SUB-ASSY, FRONT DOOR, FRONT LOWER LH | ||||
| 67402-12271 |
AE82 |
1 | ||
| 67433 - FRAME, FRONT DOOR WINDOW, REAR LOWER RH | ||||
| 67403-02010 |
AE82 |
1 | ||
| 67434 - FRAME, FRONT DOOR WINDOW, REAR LOWER LH | ||||
| 67404-02010 |
AE82 |
1 | ||
| 67491A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, RH | ||||
| 67491-12131 |
AE82..Q |
1 | ||
| 67492A - GARNISH, FRONT DOOR LOWER FRAME BRACKET, LH | ||||
| 67492-12141 |
AE82..Q |
1 | ||
| 67831 - COVER, FRONT DOOR SERVICE HOLE, RH | ||||
| 67831-02010 |
AE82 |
1 | ||
| 67832 - COVER, FRONT DOOR SERVICE HOLE, LH | ||||
| 67832-02010 |
AE82 |
1 | ||
| 67861 - WEATHERSTRIP, FRONT DOOR, RH | ||||
| 67861-12580 |
AE82 |
1 | ||
| 67861-12581 |
AE82 |
1 | ||
| 67861A - RETAINER(FOR FRONT DOOR WEATHERSTRIP) | ||||
| 67868-30040 |
AE82 |
40 | ||
| 67862 - WEATHERSTRIP, FRONT DOOR, LH | ||||
| 67862-12560 |
AE82 |
1 | ||
| 67862-12561 |
AE82 |
1 | ||
| 68101 - GLASS SUB-ASSY, FRONT DOOR, RH | ||||
| 68111-02010 |
AE82 *TT,T=3.5,*TT,T=3.5 |
1 | ||
| 68102 - GLASS SUB-ASSY, FRONT DOOR, LH | ||||
| 68112-02010 |
AE82 *TT,T=3.5,*TT,T=3.5 |
1 | ||
| 68141 - RUN, FRONT DOOR GLASS | ||||
| 68141-12240 |
AE82 |
2 | ||
| 68610 - CHECK ASSY, FRONT DOOR | ||||
| 68610-12030 |
AE82 |
2 | ||
| 68610A - PIN(FOR FRONT DOOR CHECK) | ||||
| 68617-90A00 |
AE82 |
2 | ||
| Common parts | ||||
| 90333-35002 | ||||
| 90950-01061 | ||||
| 91651-40612 | ||||
| 91655-40616 | ||||
| 93510-15014 | ||||
| 93520-14010 | ||||
(8609- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

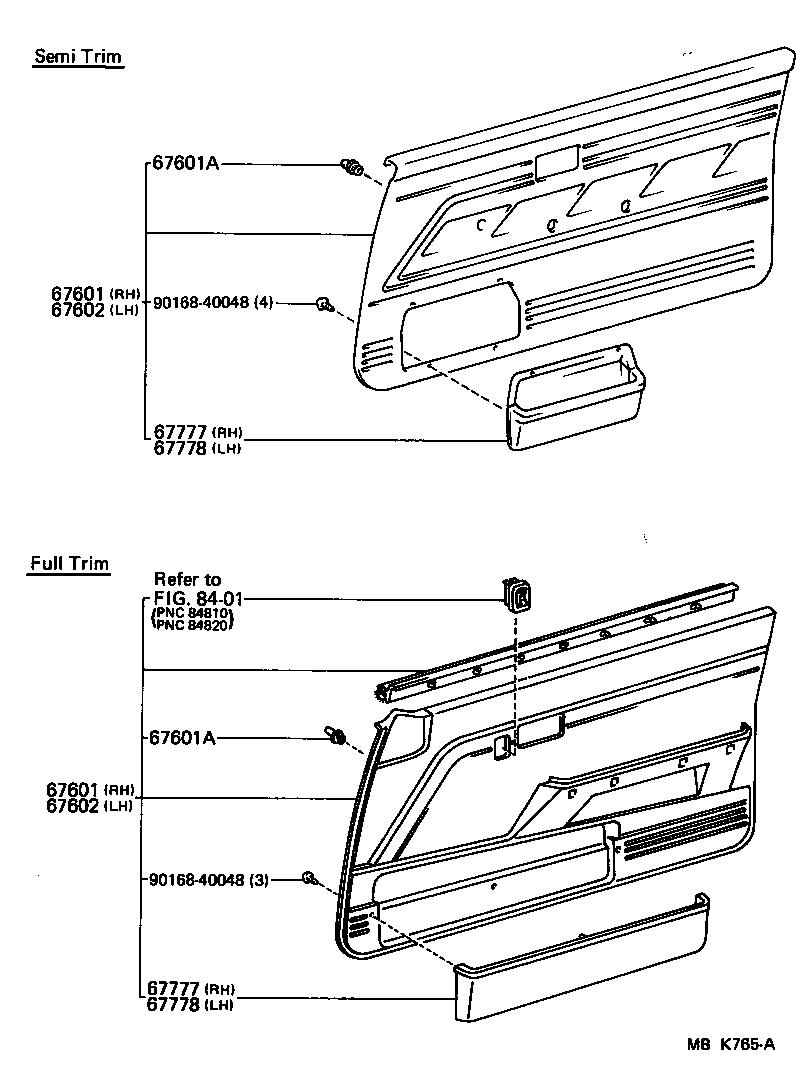

| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-02010J7 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67610-02011G5 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67610-02010R7 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67610-02011S3 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67601 - BOARD SUB-ASSY, FRONT DOOR TRIM, RH | ||||
| 67610-02010J7 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67610-02011G5 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67610-02010R7 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67610-02011S3 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE82 |
24 | ||
| 67601A - RETAINER(FOR FRONT DOOR TRIM BOARD) | ||||
| 67771-12010 |
AE82 |
24 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-02010R7 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67620-02011G5 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67620-02010J7 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67620-02011S3 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67602 - BOARD SUB-ASSY, FRONT DOOR TRIM, LH | ||||
| 67620-02010R7 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67620-02011G5 |
AE82..Q CHARCOAL,CHARCOAL |
1 | ||
| 67620-02010J7 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67620-02011S3 |
AE82..Q DARK BLUE,DARK BLUE |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-02010J9 |
AE82..GTS,Q DARK BLUE,DARK BLUE |
1 | ||
| 67777-02010P8 |
AE82..GTS,Q CHARCOAL,CHARCOAL |
1 | ||
| 67777 - POCKET, FRONT DOOR TRIM, RH | ||||
| 67777-02010J9 |
AE82..GTS,Q DARK BLUE,DARK BLUE |
1 | ||
| 67777-02010P8 |
AE82..GTS,Q CHARCOAL,CHARCOAL |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-02010J9 |
AE82..GTS,Q DARK BLUE,DARK BLUE |
1 | ||
| 67777-02010P8 |
AE82..GTS,Q CHARCOAL,CHARCOAL |
1 | ||
| 67778 - POCKET, FRONT DOOR TRIM, LH | ||||
| 67777-02010J9 |
AE82..GTS,Q DARK BLUE,DARK BLUE |
1 | ||
| 67777-02010P8 |
AE82..GTS,Q CHARCOAL,CHARCOAL |
1 | ||
| Common parts | ||||
| 90168-40048 | ||||
| Linked diagrams | ||||
| 8401 | ||||
