AE82L-EGMQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )

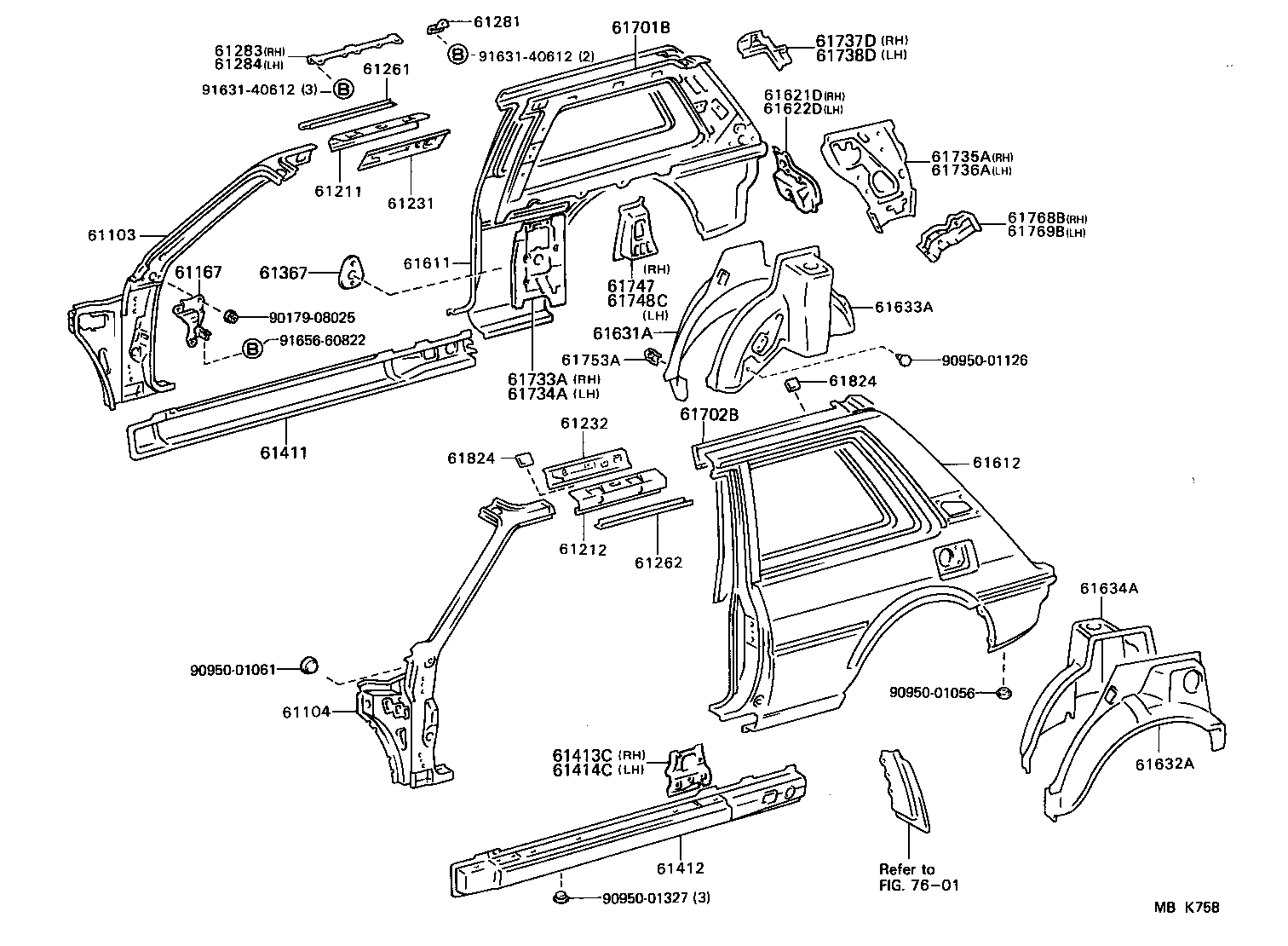

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 61103 - PILLAR SUB-ASSY, FRONT BODY, RH | ||||
| 61021-02010 |
AE82 |
1 | ||
| 61104 - PILLAR SUB-ASSY, FRONT BODY, LH | ||||
| 61022-02010 |
AE82 |
1 | ||
| 61167 - BRACKET, INSTRUMENT PANEL TO COWL SIDE, RH | ||||
| 61035-12030 |
AE82 |
1 | ||
| 61211 - RAIL, ROOF SIDE, OUTER RH | ||||
| 61211-12210 |
AE82 |
1 | ||
| 61212 - RAIL, ROOF SIDE, OUTER LH | ||||
| 61212-12210 |
AE82 |
1 | ||
| 61231 - RAIL, ROOF SIDE, INNER RH | ||||
| 61231-12570 |
AE82 |
1 | ||
| 61232 - RAIL, ROOF SIDE, INNER LH | ||||
| 61232-12420 |
AE82 |
1 | ||
| 61261 - CHANNEL, ROOF DRIP, RH | ||||
| 61265-12090 |
AE82 |
1 | ||
| 61262 - CHANNEL, ROOF DRIP, LH | ||||
| 61266-12090 |
AE82 |
1 | ||
| 61281 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.1 | ||||
| 61281-12020 |
AE82..GTS,Q |
2 | ||
| 61283 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 RH | ||||
| 61283-12020 |
AE82..GTS,Q |
1 | ||
| 61284 - BRACKET, SLIDING ROOF HOUSING MOUNTING, NO.3 LH | ||||
| 61284-12020 |
AE82..GTS,Q |
1 | ||
| 61367 - REINFORCEMENT, BELT ANCHOR TO CENTER PILLAR, LOWER | ||||
| 61367-14010 |
AE82 |
2 | ||
| 61411 - PANEL, ROCKER, OUTER RH | ||||
| 61401-02010 |
AE82 |
1 | ||
| 61412 - PANEL, ROCKER, OUTER LH | ||||
| 61402-02010 |
AE82 |
1 | ||
| 61413C - REINFORCEMENT, ROCKER PANEL, NO.2 RH | ||||
| 61413-02010 |
AE82 |
1 | ||
| 61414C - REINFORCEMENT, ROCKER PANEL, NO.2 LH | ||||
| 61414-02010 |
AE82 |
1 | ||
| 61611 - PANEL, QUARTER, RH | ||||
| 61601-02900 |
AE82 |
1 | ||
| 61612 - PANEL, QUARTER, LH | ||||
| 61602-02900 |
AE82 |
1 | ||
| 61621D - TROUGH, BACK DOOR OPENING, RH | ||||
| 61621-12900 |
AE82 |
1 | ||
| 61622D - TROUGH, BACK DOOR OPENING, LH | ||||
| 61622-12900 |
AE82 |
1 | ||
| 61631A - PANEL, QUARTER WHEEL HOUSE, OUTER RH | ||||
| 61631-12180 |
AE82 |
1 | ||
| 61632A - PANEL, QUARTER WHEEL HOUSE, OUTER LH | ||||
| 61632-12180 |
AE82 |
1 | ||
| 61633A - PANEL, QUARTER WHEEL HOUSE, INNER RH | ||||
| 61607-12902 |
AE82 |
1 | ||
| 61634A - PANEL, QUARTER WHEEL HOUSE, INNER LH | ||||
| 61608-12902 |
AE82 |
1 | ||
| 61701B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER RH | ||||
| 61701-02010 |
AE82 |
1 | ||
| 61702B - PANEL SUB-ASSY, ROOF SIDE, INNER UPPER LH | ||||
| 61702-02010 |
AE82 |
1 | ||
| 61733A - PANEL, ROOF SIDE, INNER FRONT RH | ||||
| 61733-02010 |
AE82 |
1 | ||
| 61734A - PANEL, ROOF SIDE, INNER FRONT LH | ||||
| 61734-02010 |
AE82 |
1 | ||
| 61735A - PANEL, ROOF SIDE, INNER REAR RH | ||||
| 61735-12230 |
AE82 |
1 | ||
| 61736A - PANEL, ROOF SIDE, INNER REAR LH | ||||
| 61736-12200 |
AE82 |
1 | ||
| 61737D - REINFORCEMENT, ROOF SIDE, INNER RH | ||||
| 61737-02010 |
AE82 |
1 | ||
| 61738D - REINFORCEMENT, ROOF SIDE, INNER LH | ||||
| 61738-02010 |
AE82 |
1 | ||
| 61747 - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, RH | ||||
| 61747-12080 |
AE82 |
1 | ||
| 61748C - BRACE, ROOF SIDE INNER TO WHEEL HOUSE, LH | ||||
| 61748-12080 |
AE82 |
1 | ||
| 61753A - RETAINER, QUARTER TRIM, LOWER | ||||
| 61753-16010 |
AE82 |
6 | ||
| 61768B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR RH | ||||
| 61768-12110 |
AE82 |
1 | ||
| 61769B - REINFORCE, BELT ANCHOR TO ROOF SIDE, INNER REAR LH | ||||
| 61769-12080 |
AE82 |
1 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-01010 |
AE82 |
4 | ||
| 61824 - PLATE, NOISE CONTROL, NO.1 | ||||
| 61824-01010 |
AE82 |
4 | ||
| Common parts | ||||
| 90179-08025 | ||||
| 90950-01056 | ||||
| 90950-01061 | ||||
| 90950-01126 | ||||
| 90950-01327 | ||||
| 91631-40612 | ||||
| 91656-60822 | ||||
| Linked diagrams | ||||
| 7601 | ||||
