AE82L-EGMQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )

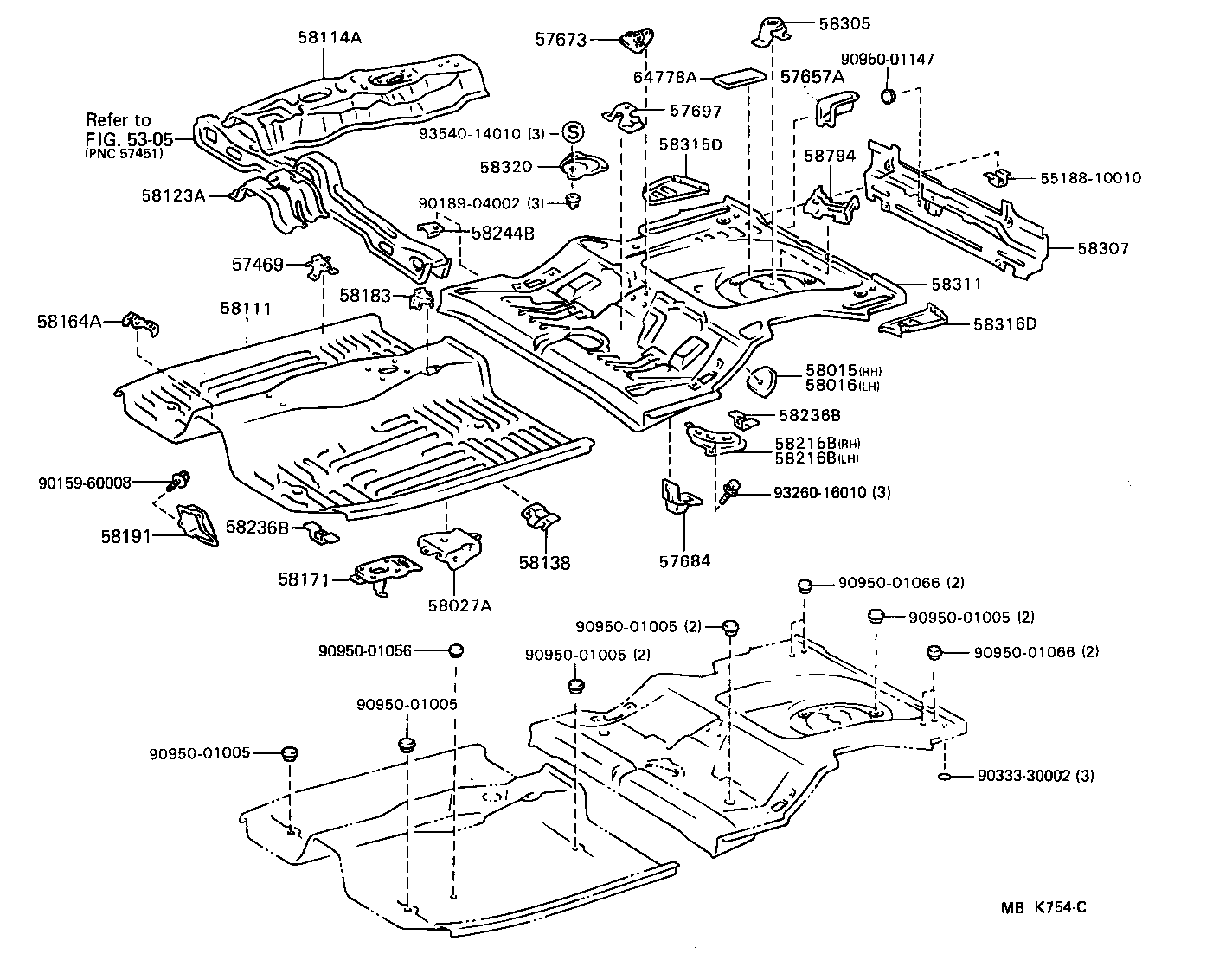

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 57469 - BRACKET, FRONT SEAT, OUTSIDE | ||||
| 57469-12010 |
AE82 LH |
1 | ||
| 57468-12010 |
AE82 RH |
1 | ||
| 57657A - BRACKET, EXHAUST PIPE MOUNTING, NO.2 | ||||
| 57657-16010 |
AE82 |
1 | ||
| 57673 - BRACKET, REAR SEAT BACK HINGE MOUNTING | ||||
| 57607-12020 |
AE82 |
1 | ||
| 57684 - BRACKET, FUEL TANK, REAR | ||||
| 57686-16011 |
AE82 RH |
1 | ||
| 57687-16011 |
AE82 LH |
1 | ||
| 57697 - RETAINER, REAR SEAT CUSHION | ||||
| 57697-16010 |
AE82 |
1 | ||
| 58015 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, RH | ||||
| 58015-12010 |
AE82 |
1 | ||
| 58016 - REINFORCEMENT, BELT ANCHOR TO FLOOR PAN, LH | ||||
| 58015-12010 |
AE82 |
1 | ||
| 58027A - REINFORCE SUB-ASSY, SEAT BELT ANCHOR | ||||
| 58027-12020 |
AE82 |
1 | ||
| 58111 - PAN, FRONT FLOOR | ||||
| 58111-01011 |
AE82 |
1 | ||
| 58114A - REINFORCEMENT, FRONT FLOOR PANEL | ||||
| 58114-12020 |
AE82 |
1 | ||
| 58123A - SUPPORT, SHIFT & SELECT LEVER | ||||
| 58013-12010 |
AE82 |
1 | ||
| 58138 - BRACKET, FRONT FLOOR HEAT INSULATOR, NO.4 | ||||
| 58134-12010 |
AE82 |
1 | ||
| 58164A - RETAINER, CONSOLE BOX MOUNTING | ||||
| 58164-12020 |
AE82 |
1 | ||
| 58171 - REINFORCEMENT, PARKING BRAKE BASE | ||||
| 58107-12010 |
AE82 |
1 | ||
| 58183 - BRACKET, FRONT SEAT MOUNTING, INNER | ||||
| 58183-12060 |
AE82 RH |
1 | ||
| 58184-12080 |
AE82 LH |
1 | ||
| 58191 - FOOTREST, FRONT FLOOR | ||||
| 58192-01010 |
AE82..GTS,Q |
1 | ||
| 58215B - BRACKET, REAR SEAT MOUNTING, RH | ||||
| 58215-16010 |
AE82 |
1 | ||
| 58216B - BRACKET, REAR SEAT MOUNTING, LH | ||||
| 58216-16010 |
AE82 |
1 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AE82 |
8 | ||
| 58236B - BRACKET, CENTER FLOOR HEAT INSULATOR | ||||
| 58236-14010 |
AE82 |
8 | ||
| 58244B - BRACKET, REAR SEAT CUSHION MOUNTING | ||||
| 58244-16030 |
AE82 |
4 | ||
| 58305 - BRACKET SUB-ASSY, SPARE WHEEL CLAMP | ||||
| 58305-10011 |
AE82 |
1 | ||
| 58307 - PANEL SUB-ASSY, BODY LOWER BACK | ||||
| 58307-02010 |
AE82 |
1 | ||
| 58311 - PAN, REAR FLOOR | ||||
| 58311-16050 |
AE82 |
1 | ||
| 58315D - EXTENSION, REAR FLOOR PAN, RH | ||||
| 58315-12020 |
AE82 |
1 | ||
| 58316D - EXTENSION, REAR FLOOR PAN, LH | ||||
| 58316-12020 |
AE82 |
1 | ||
| 58320 - COVER, REAR FLOOR SERVICE HOLE | ||||
| 58325-16020 |
AE82 |
1 | ||
| 58794 - CARRIER, JACK | ||||
| 58791-12090 |
AE82 |
1 | ||
| 64778A - PROTECTOR, SPARE WHEEL | ||||
| 64759-16030 |
AE82 230 X 125 |
1 | ||
| 64778-12020 |
AE82 110 X 240 |
1 | ||
| Common parts | ||||
| 55188-10010 | ||||
| 90159-60008 | ||||
| 90189-04002 | ||||
| 90333-30002 | ||||
| 90950-01005 | ||||
| 90950-01056 | ||||
| 90950-01066 | ||||
| 90950-01147 | ||||
| 93260-16010 | ||||
| 93540-14010 | ||||
| Linked diagrams | ||||
| 5305 | ||||
