AE82L-EGMQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )

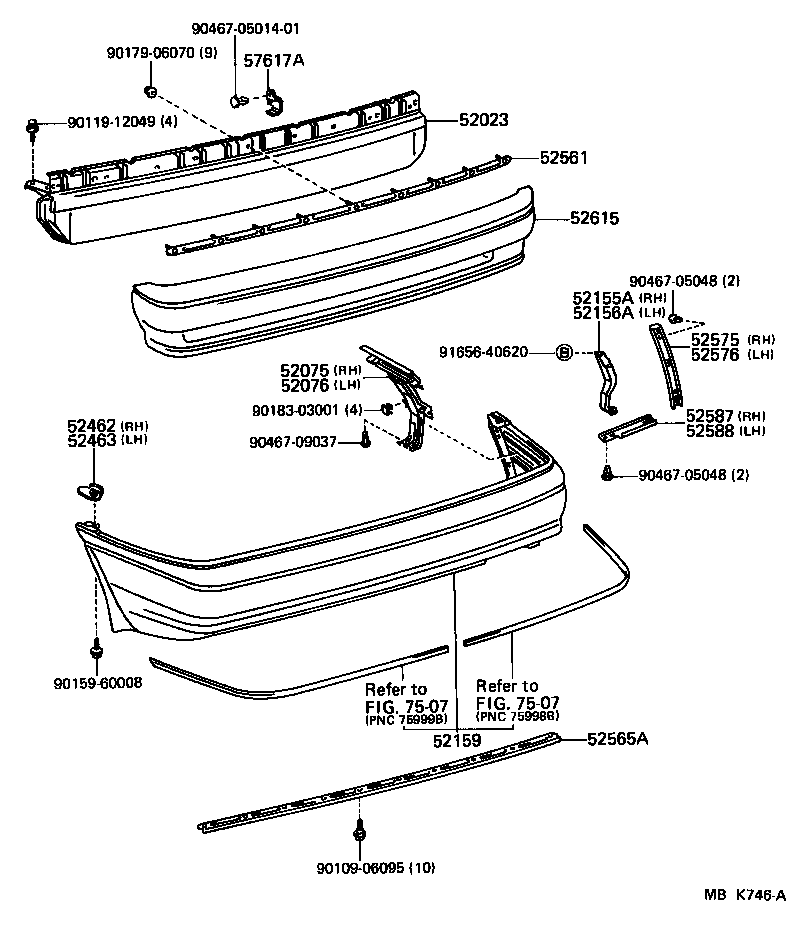

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52023 - REINFORCEMENT SUB-ASSY, REAR BUMPER | ||||
| 52023-02010 |
AE82 |
1 | ||
| 52075 - RETAINER SUB-ASSY, REAR BUMPER SIDE, RH | ||||
| 52075-02010 |
AE82 |
1 | ||
| 52076 - RETAINER SUB-ASSY, REAR BUMPER SIDE, LH | ||||
| 52076-02010 |
AE82 |
1 | ||
| 52155A - SUPPORT, REAR BUMPER SIDE, RH | ||||
| 52155-02010 |
AE82 |
1 | ||
| 52156A - SUPPORT, REAR BUMPER SIDE, LH | ||||
| 52156-02010 |
AE82 |
1 | ||
| 52159 - COVER, REAR BUMPER | ||||
| 52159-02010D3 |
AE82 BLACK,BLACK |
1 | ||
| 52462 - PAD, REAR BUMPER, RH | ||||
| 52462-02010 |
AE82 |
1 | ||
| 52463 - PAD, REAR BUMPER, LH | ||||
| 52463-02010 |
AE82 |
1 | ||
| 52561 - RETAINER, REAR BUMPER, UPPER CENTER | ||||
| 52561-02010 |
AE82 |
1 | ||
| 52565A - RETAINER, REAR BUMPER, LOWER | ||||
| 52565-02010 |
AE82 |
1 | ||
| 52575 - RETAINER, REAR BUMPER SIDE, RH | ||||
| 52575-02010 |
AE82 |
1 | ||
| 52576 - RETAINER, REAR BUMPER SIDE, LH | ||||
| 52575-02010 |
AE82 |
1 | ||
| 52587 - RETAINER, REAR BUMPER END, RH | ||||
| 52587-02010 |
AE82 |
1 | ||
| 52588 - RETAINER, REAR BUMPER END, LH | ||||
| 52588-02010 |
AE82 |
1 | ||
| 52615 - ABSORBER, REAR BUMPER ENERGY | ||||
| 52615-02010 |
AE82 |
1 | ||
| 57617A - RETAINER, EXHAUST PIPE BRACKET | ||||
| 57617-02010 |
AE82 |
1 | ||
| Common parts | ||||
| 90109-06095 | ||||
| 90119-12049 | ||||
| 90159-60008 | ||||
| 90179-06070 | ||||
| 90183-03001 | ||||
| 90467-0501401 | ||||
| 90467-05048 | ||||
| 90467-09037 | ||||
| 91656-40620 | ||||
| Linked diagrams | ||||
| 7507 | ||||
