AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

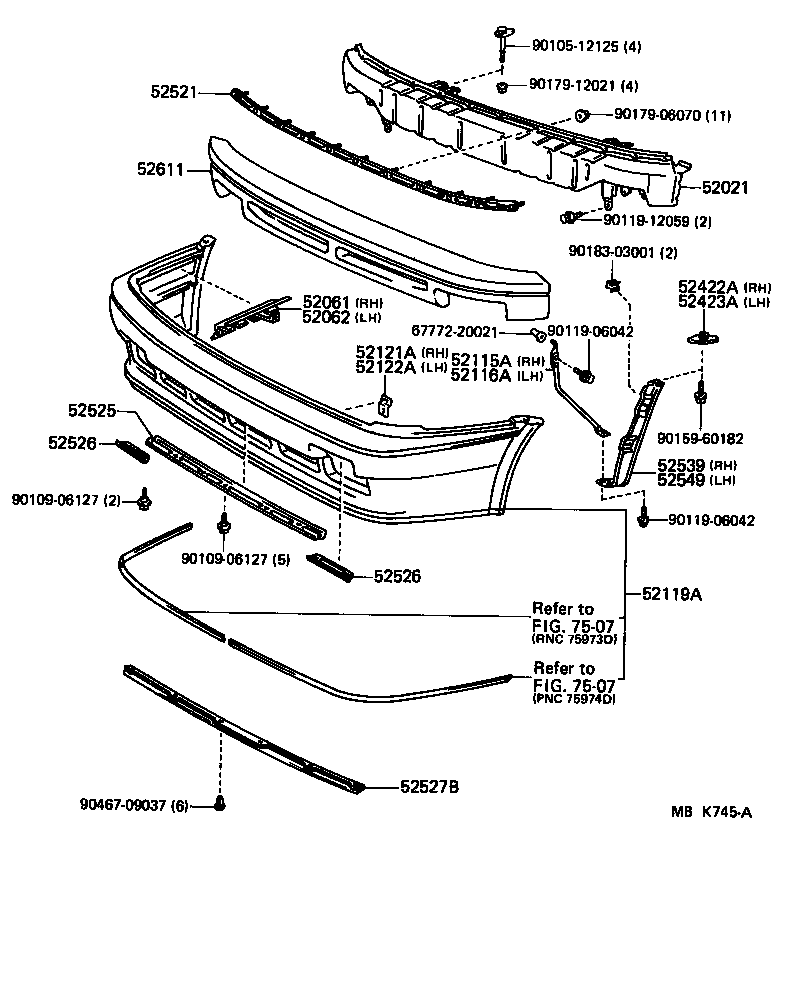

Click highlighted areas on diagram

diagram 52021 52061 52062 52115A 52116A 52119A 52121A 52122A 52422A 52423A 52521 52525 52526 52526 52527B 52539 52549 52611 6777220021 7507 7507 9010512125 9010906127 9010906127 9011906042 9011906042 9011912059 9015960182 9017906070 9017912021 9018303001 9046709037
Part # Description Qty Price
52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER
52021-02010

AE82

 1
52061 - SUPPORT SUB-ASSY, FRONT BUMPER SIDE, RH
52061-02010

AE82

 1
52062 - SUPPORT SUB-ASSY, FRONT BUMPER SIDE, LH
52062-02010

AE82

 1
52115A - SUPPORT, FRONT BUMPER SIDE, RH
52115-02010

AE82

 1
52116A - SUPPORT, FRONT BUMPER SIDE, LH
52116-02010

AE82

 1
52119A - COVER, FRONT BUMPER
52119-02010D3

AE82

BLACK,BLACK

 1
52121A - BRACKET, FRONT LICENSE PLATE MOUNTING, RH
52121-02010

AE82

 2
52122A - BRACKET, FRONT LICENSE PLATE MOUNTING, LH
52121-02010

AE82

 1
52422A - PAD, FRONT BUMPER, RH
52422-02010

AE82

 1
52423A - PAD, FRONT BUMPER, LH
52423-02010

AE82

 1
52521 - RETAINER, FRONT BUMPER, UPPER CENTER
52521-02010

AE82

 1
52525 - RETAINER, FRONT BUMPER, LOWER CENTER
52525-02020

AE82

 1
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-12010

AE82

 2
52526 - RETAINER, FRONT BUMPER, LOWER SIDE
52526-12010

AE82

 2
52527B - RETAINER, FRONT BUMPER, LOWER NO.2
52527-02010

AE82

 1
52539 - RETAINER, FRONT BUMPER SIDE, NO.3 RH
52539-02010

AE82

 1
52549 - RETAINER, FRONT BUMPER SIDE, NO.3 LH
52549-02010

AE82

 1
52611 - ABSORBER, FRONT BUMPER ENERGY
52611-02010

AE82

 1
Common parts
67772-20021
90105-12125
90109-06127
90119-06042
90119-12059
90159-60182
90179-06070
90179-12021
90183-03001
90467-09037
Linked diagrams
7507
