AE82L-EGMQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )

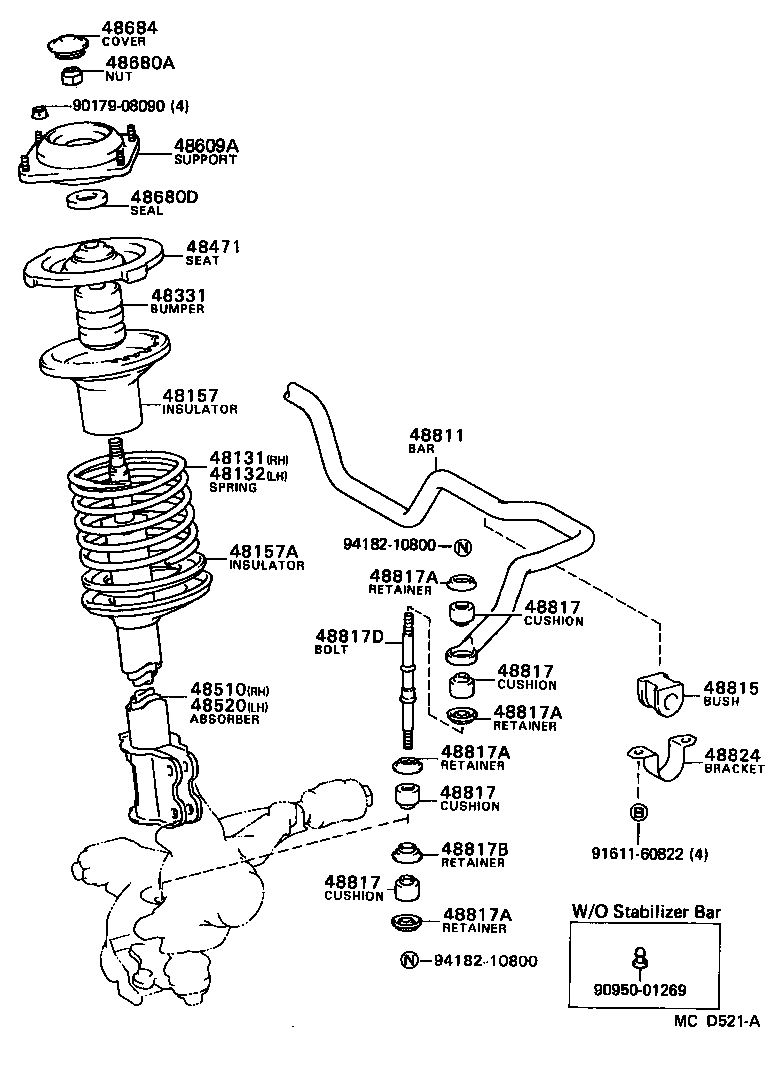

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 48131 - SPRING, FRONT COIL, RH | ||||
| 48131-02020 |
AE82..MTM..(GTS,Q) W/COOLER |
1 | ||
| 48131-02010 |
AE82..MTM..(GTS,Q) |
1 | ||
| 48132 - SPRING, FRONT COIL, LH | ||||
| 48131-02010 |
AE82..MTM..(GTS,Q) |
1 | ||
| 48131-02020 |
AE82..MTM..(GTS,Q) W/COOLER |
1 | ||
| 48131-1E520 |
AE82..MTM..(GTS,Q) |
1 | ||
| 48131-1E590 |
AE82..MTM..(GTS,Q) W/COOLER |
1 | ||
| 48157 - INSULATOR, FRONT COIL SPRING, UPPER | ||||
| 48157-02010 |
AE82..GTS,Q |
2 | ||
| 48157A - INSULATOR, FRONT COIL SPRING, LOWER | ||||
| 48158-02010 |
AE82..GTS,Q |
2 | ||
| 48158-12030 |
AE82..GTS,Q |
2 | ||
| 48331 - BUMPER, FRONT SPRING, NO.1 | ||||
| 48331-20040 |
AE82..GTS,Q |
2 | ||
| 48471 - SEAT, FRONT SPRING, UPPER | ||||
| 48044-32010 |
AE82..GTS,Q |
2 | ||
| 48510 - ABSORBER ASSY, SHOCK, FRONT RH | ||||
| 48510-12460 |
AE82..GTS,Q |
1 | ||
| 48510-12461 |
AE82..GTS,Q |
1 | ||
| 48520 - ABSORBER ASSY, SHOCK, FRONT LH | ||||
| 48520-12331 |
AE82..GTS,Q |
1 | ||
| 48520-12330 |
AE82..GTS,Q |
1 | ||
| 48609A - SUPPORT SUB-ASSY, FRONT SUSPENSION | ||||
| 48609-12151 |
AE82..GTS,Q |
2 | ||
| 48680A - NUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER) | ||||
| 94182-11400 |
AE82 |
2 | ||
| 48680D - SEAL, DUST(FOR FRONT SUSPENSION SUPPORT) | ||||
| 90303-22049 |
AE82 |
2 | ||
| 48684 - COVER, BEARING DUST | ||||
| 48684-01010 |
AE82 |
2 | ||
| 48811 - BAR, STABILIZER, FRONT | ||||
| 48811-12420 |
AE82..GTS,Q |
1 | ||
| 48815 - BUSH, FRONT STABILIZER BAR, NO.1 | ||||
| 48815-24010 |
AE82..GTS,Q |
2 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE82..GTS,Q |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE82..GTS,Q |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE82..GTS,Q |
8 | ||
| 48817 - CUSHION, FRONT STABILIZER | ||||
| 48817-30020 |
AE82..GTS,Q |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE82..GTS,Q |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE82..GTS,Q |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE82..GTS,Q |
8 | ||
| 48817A - RETAINER, CUSHION, NO.1(FOR FRONT STABILIZER BAR) | ||||
| 90948-02032 |
AE82..GTS,Q |
8 | ||
| 48817B - RETAINER, CUSHION, NO.2(FOR FRONT STABILIZER BAR) | ||||
| 90948-02015 |
AE82..GTS,Q |
2 | ||
| 48817D - BOLT(FOR FRONT STABILIZER) | ||||
| 48819-20030 |
AE82..GTS,Q |
2 | ||
| 48824 - BRACKET, STABILIZER, FRONT | ||||
| 48824-20040 |
AE82..GTS,Q |
2 | ||
| Common parts | ||||
| 90179-08090 | ||||
| 90950-01269 | ||||
| 91611-60822 | ||||
| 94182-10800 | ||||
