AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

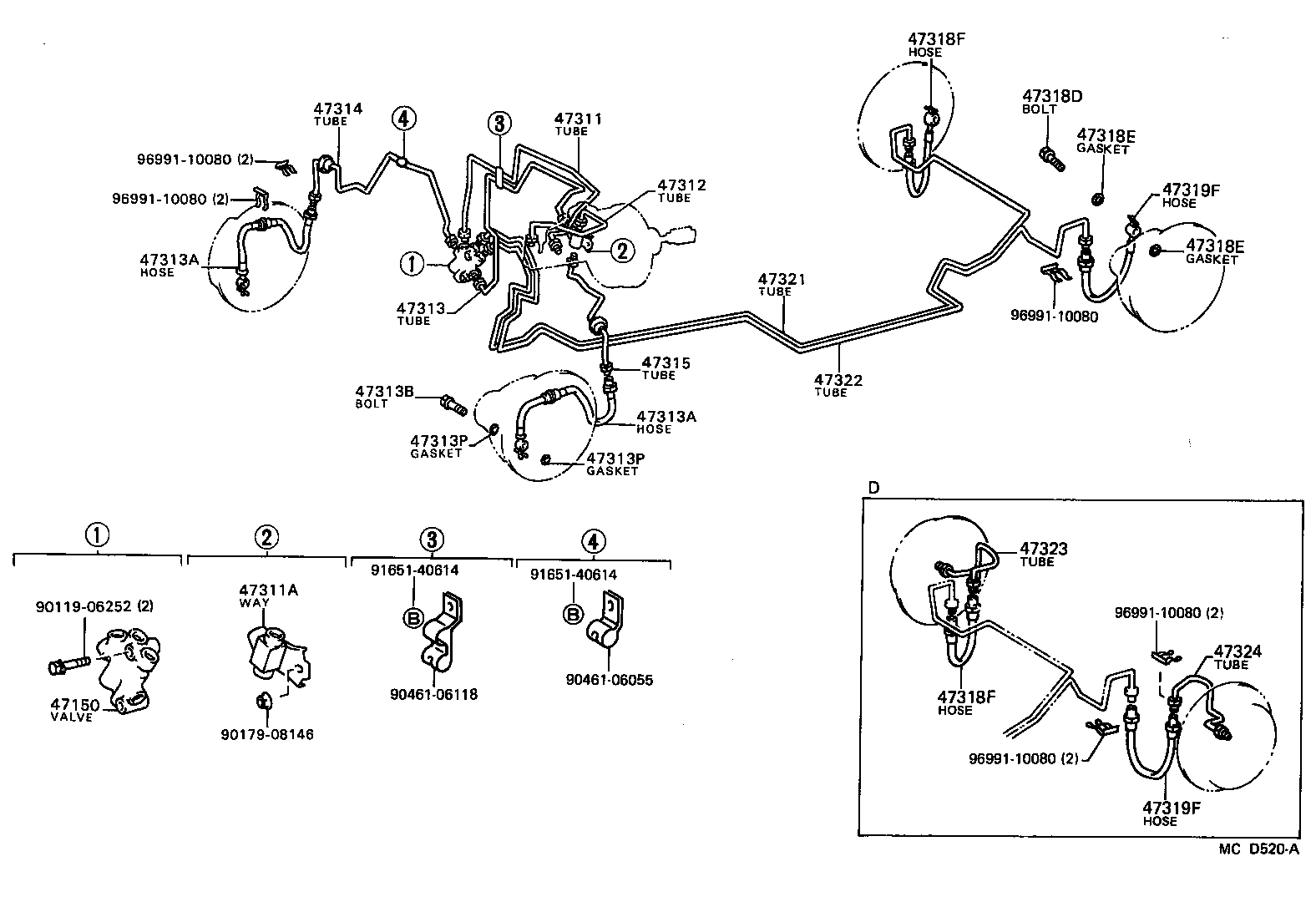

Click highlighted areas on diagram

diagram 47150 47311 47311A 47312 47313 47313A 47313A 47313B 47313P 47313P 47314 47315 47318D 47318E 47318E 47318F 47318F 47319F 47319F 47321 47322 47323 47324 9011906252 9017908146 9046106055 9046106118 9165140614 9165140614 9699110080 9699110080 9699110080 9699110080 9699110080
Part # Description Qty Price
47150 - VALVE ASSY, PROPORTIONING
47150-12070

AE82..GTS,Q

 1
47311 - TUBE, FRONT BRAKE, NO.1
47311-01010

AE82

 1
47311A - WAY(FOR FRONT BRAKE TUBE)
90413-10155

AE82

 1
47312 - TUBE, FRONT BRAKE, NO.2
47312-12210

AE82

 1
47313 - TUBE, FRONT BRAKE, NO.3
47313-01010

AE82

 1
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02455

AE82

 2
47313A - HOSE, FLEXIBLE, NO.1(FOR FRONT)
90947-02455

AE82

 2
47313B - BOLT, UNION(FOR FRONT FLEXIBLE HOSE)
90401-10015

AE82

 2
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE82

 4
47313P - GASKET(FOR FRONT FLEXIBLE HOSE)
90430-10074

AE82

 4
47314 - TUBE, FRONT BRAKE, NO.4
47314-01010

AE82

 1
47315 - TUBE, FRONT BRAKE, NO.5
47315-01010

AE82

 1
47318D - BOLT, UNION(FOR REAR FLEXIBLE HOSE)
90401-10015

AE82..GTS,Q

 2
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

AE82..GTS,Q

 4
47318E - GASKET(FOR REAR FLEXIBLE HOSE)
90430-10074

AE82..GTS,Q

 4
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02463

AE82..GTS,Q

 1
47318F - HOSE, FLEXIBLE(FOR REAR RH)
90947-02463

AE82..GTS,Q

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02463

AE82..GTS,Q

 1
47319F - HOSE, FLEXIBLE(FOR REAR LH)
90947-02463

AE82..GTS,Q

 1
47321 - TUBE, REAR BRAKE, NO.1
47321-01010

AE82

 1
47322 - TUBE, REAR BRAKE, NO.2
47322-01010

AE82

 1
Common parts
90119-06252
90179-08146
90461-06055
90461-06118
91651-40614
96991-10080
