AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )GTS,Q

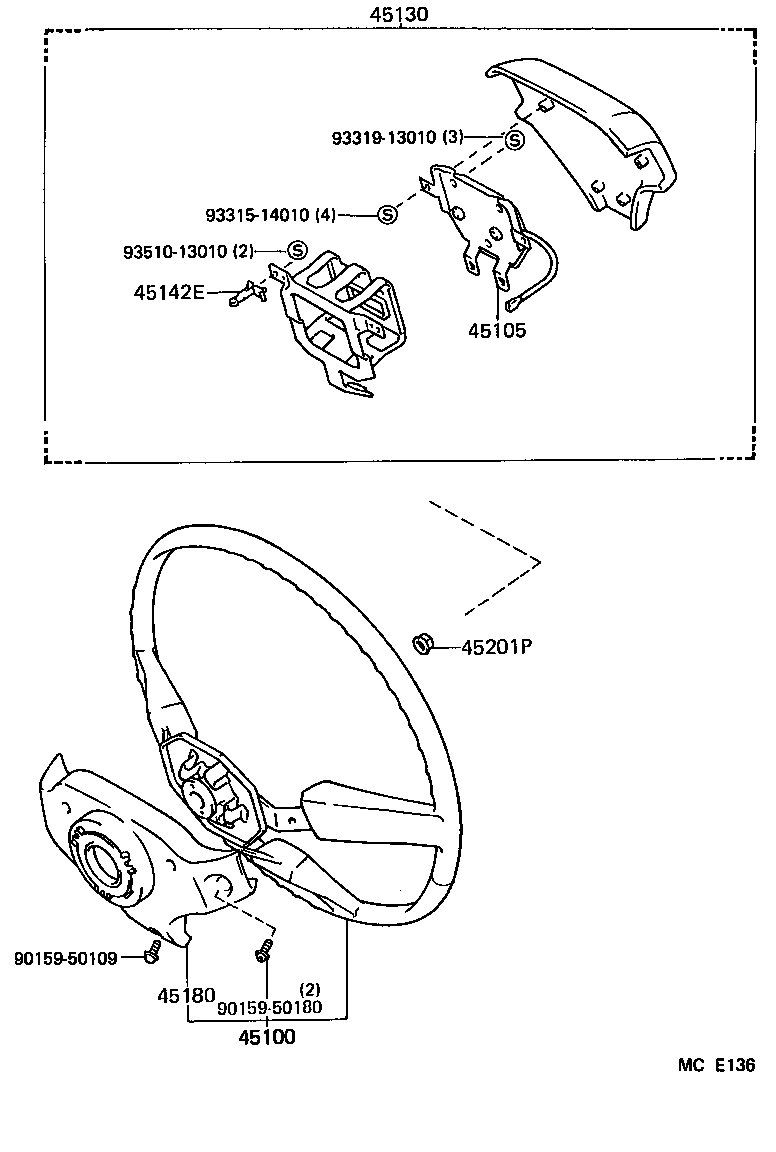

Click highlighted areas on diagram

diagram 45100 45105 45130 45142E 45180 45201P 9015950109 9015950180 9331514010 9331913010 9351013010
Part # Description Qty Price
45100 - WHEEL ASSY, STEERING
45100-02030P8

AE82..Q

CHARCOAL,CHARCOAL

 1
45100-02030J9

AE82..Q

BLUE,DARK BLUE

 1
45105 - PLATE SUB-ASSY, HORN BUTTON CONTACT, NO.1
45105-17030

AE82..GTS,Q

 1
45130 - BUTTON ASSY, HORN
45130-02021J9

AE82..GTS,Q

BLUE,DARK BLUE

 1
45130-02021P8

AE82..GTS,Q

CHARCOAL,CHARCOAL

 1
45142E - PIECE, HORN CONTACT
45142-20060

AE82..GTS,Q

 1
45180 - COVER SUB-ASSY, STEERING WHEEL
45180-02010P8

AE82..GTS,Q

CHARCOAL,CHARCOAL

 1
45180-02010J9

AE82..GTS,Q

BLUE,DARK BLUE

 1
45201P - NUT, STEERING WHEEL SET
90179-12086

AE82

 1
Common parts
90159-50109
90159-50180
93315-14010
93319-13010
93510-13010
