AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )GTS,Q

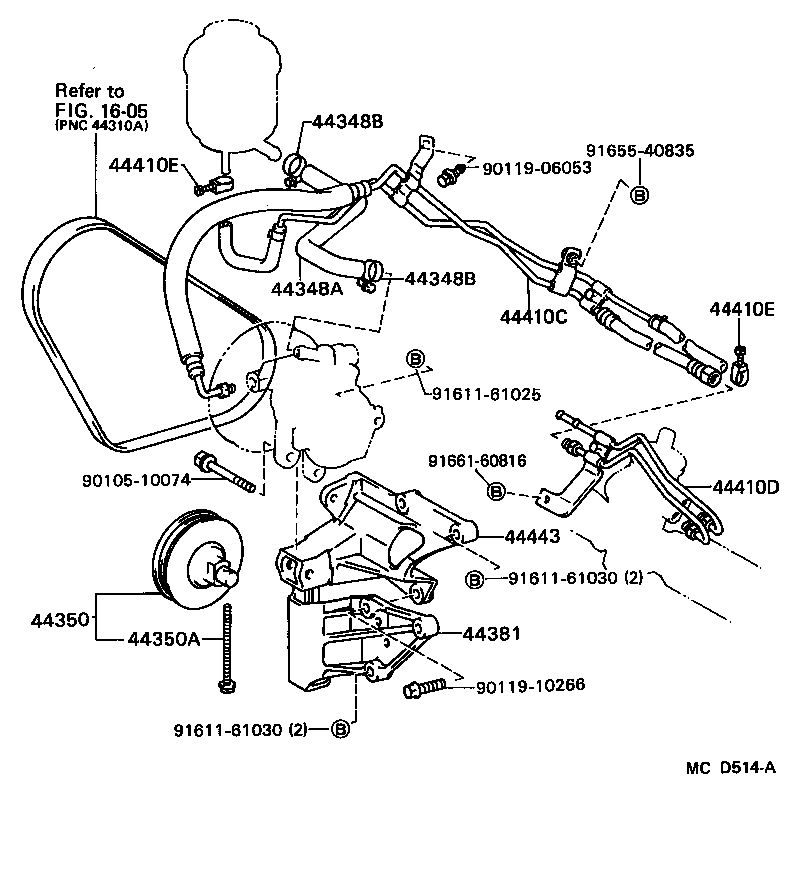

Click highlighted areas on diagram

diagram 1605 44348A 44348B 44348B 44350 44350A 44381 44410C 44410D 44410E 44410E 44443 9010510074 9011906053 9011910266 9161161025 9161161030 9161161030 9165540835 9166160816
Part # Description Qty Price
44348A - HOSE, OIL RESERVOIR TO PUMP, NO.1
44348-12040

AE82..GTS,Q

 1
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

AE82..GTS,Q

 2
44348B - CLAMP(FOR OIL RESERVOIR TO PUMP HOSE)
90460-26001

AE82..GTS,Q

 2
44350 - PULLEY ASSY, POWER STEERING IDLE
44350-12060

AE82..GTS,Q

 1
44350A - BOLT(FOR POWER STEERING IDLE PULLEY)
90105-08099

AE82..GTS,Q

 1
44381 - BRACKET, POWER STEERING IDLE PULLEY
44381-12030

AE82..GTS,Q

 1
44410C - TUBE ASSY, PRESSURE FEED, NO.1
44410-02020

AE82..GTS,Q

 1
44410D - TUBE ASSY, PRESSURE FEED, NO.2
44410-02010

AE82..GTS,Q

 1
44410E - CLAMP(FOR PRESSURE FEED TUBE)
90460-01001

AE82

 2
44410E - CLAMP(FOR PRESSURE FEED TUBE)
90460-01001

AE82

 2
44443 - BRACKET, PUMP
44443-12060

AE82..GTS,Q

 1
Common parts
90105-10074
90119-06053
90119-10266
91611-61025
91611-61030
91655-40835
91661-60816
Linked diagrams
1605
