AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )

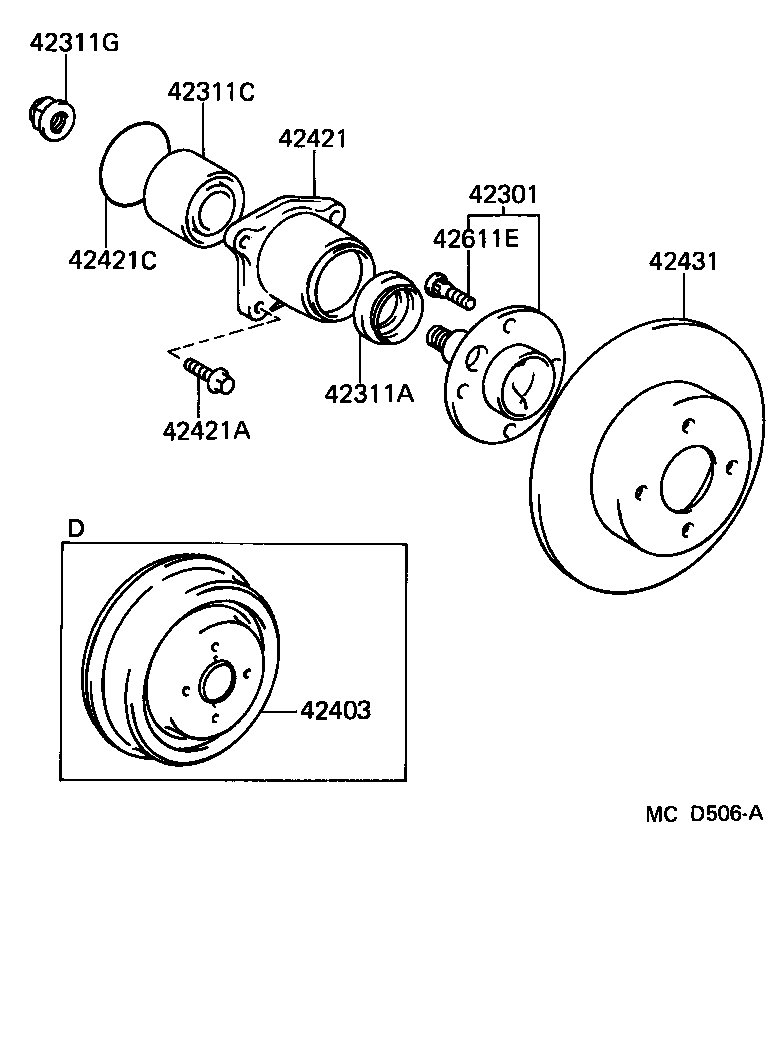

Click highlighted areas on diagram

diagram 42301 42311A 42311C 42311G 42403 42421 42421A 42421C 42431 42611E
Part # Description Qty Price
42301 - SHAFT SUB-ASSY, REAR AXLE
43502-17010

AE82..GTS,Q

 2
42311A - SEAL, OIL (FOR REAR AXLE SHAFT)
90311-41004

AE82..GTS,Q

 2
42311C - BEARING (FOR REAR AXLE SHAFT)
90369-28006

AE82

 2
42311G - NUT (FOR REAR AXLE SHAFT)
90179-20003

AE82

 2
42421 - CASE, REAR AXLE BEARING
42421-12020

AE82..GTS,Q

 2
42421A - BOLT (FOR REAR AXLE BEARING CASE)
90105-10124

AE82

 8
42421C - RING, O (FOR REAR AXLE BEARING CASE)
90301-61002

AE82

 2
42431 - DISC, REAR
42431-12090

AE82..GTS,Q

 2
42611E - BOLT, HUB (FOR REAR AXLE)
90942-02047

AE82

 8
