AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )MTM

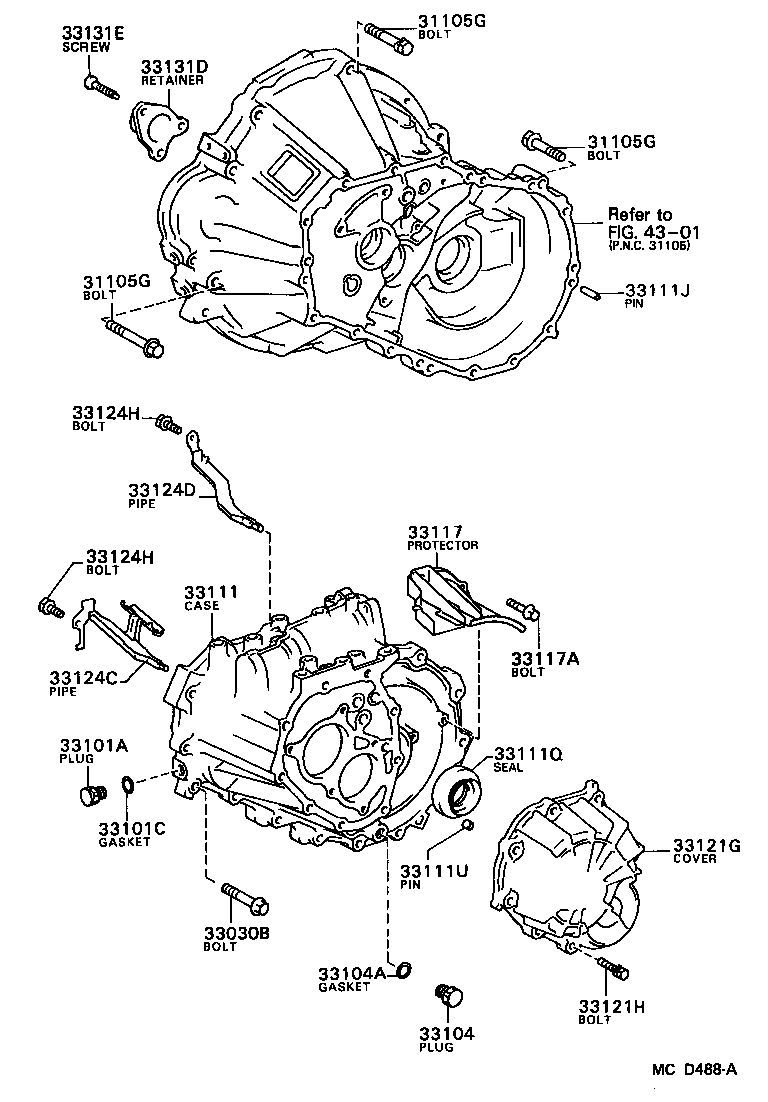

Click highlighted areas on diagram

diagram 31105G 31105G 31105G 33030B 33101A 33101C 33104 33104A 33111 33111J 33111Q 33111U 33117 33117A 33121G 33121H 33124C 33124D 33124H 33124H 33131D 33131E 4301
Part # Description Qty Price
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AE82..MTM

*10-1.25PX43-26,*10-1.25PX43-26

 1
90119-12042

AE82..MTM

*12-1.25PX75-30,*12-1.25PX75-30

 1
90119-12168

AE82..MTM

*12-1.25PX55-30,*10-1.25PX55-30

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AE82..MTM

*10-1.25PX43-26,*10-1.25PX43-26

 1
90119-12042

AE82..MTM

*12-1.25PX75-30,*12-1.25PX75-30

 1
90119-12168

AE82..MTM

*12-1.25PX55-30,*10-1.25PX55-30

 2
31105G - BOLT(FOR TRANSAXLE CASE & ENGINE SETTING)
90105-10077

AE82..MTM

*10-1.25PX43-26,*10-1.25PX43-26

 1
90119-12042

AE82..MTM

*12-1.25PX75-30,*12-1.25PX75-30

 1
90119-12168

AE82..MTM

*12-1.25PX55-30,*10-1.25PX55-30

 2
33030B - BOLT(FOR TRANSAXLE CASE & TRANSMISSION CASE SETTING)
90105-08064

AE82..MTM

*8-1.25PX51-28

 16
33101A - PLUG(FOR MANUAL TRANSMISSION FILLER)
90341-18006

AE82..MTM

 1
33101C - GASKET(FOR MANUAL TRANSMISSION FILLER PLUG)
90430-18008

AE82..MTM

 1
33104 - PLUG SUB-ASSY, DRAIN(MTM)
90341-18006

AE82..MTM

 1
33104A - GASKET, DRAIN PLUG(MTM)
90430-18008

AE82..MTM

 1
33111 - CASE, MANUAL TRANSMISSION
33111-16040

AE82..MTM

 1
33111J - PIN, STRAIGHT(FOR MANUAL TRANSMISSION CASE)
90250-08054

AE82..MTM

L=23,OD=8

 4
33111Q - SEAL, OIL(FOR TRANSMISSION CASE)
90311-34008

AE82..MTM

 1
33111U - PIN, RING(FOR MANUAL TRANSMISSION CASE)
90253-11001

AE82..MTM

L=11,OD=11

 2
33117 - PROTECTOR, MANUAL TRANSMISSION CASE
33117-17010

AE82..MTM..(GTS,Q)

 1
33117A - BOLT(FOR MANUAL TRANSMISSION CASE PROTECTOR)
90105-08040

AE82..MTM

 2
33121G - COVER, MANUAL TRANSMISSION CASE
33102-12020

AE82..MTM

 1
33121H - BOLT, W/WASHER(FOR TRANSMISSION CASE COVER)
91611-60835

AE82..MTM

 9
33124C - PIPE, OIL RECEIVER, NO.1(MTM)
33124-12010

AE82..MTM

 1
33124D - PIPE, OIL RECEIVER, NO.2(MTM)
33124-12020

AE82..MTM

 1
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

AE82..MTM

 2
33124H - BOLT(FOR OIL RECEIVER PIPE)
91611-60820

AE82..MTM

 2
33131D - RETAINER, BEARING, FRONT
33131-12070

AE82..MTM

 1
33131-12071

AE82..MTM

 1
33131E - SCREW(FOR BEARING RETAINER FRONT)
90149-60028

AE82..MTM

 3
Linked diagrams
4301
