AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )MTM

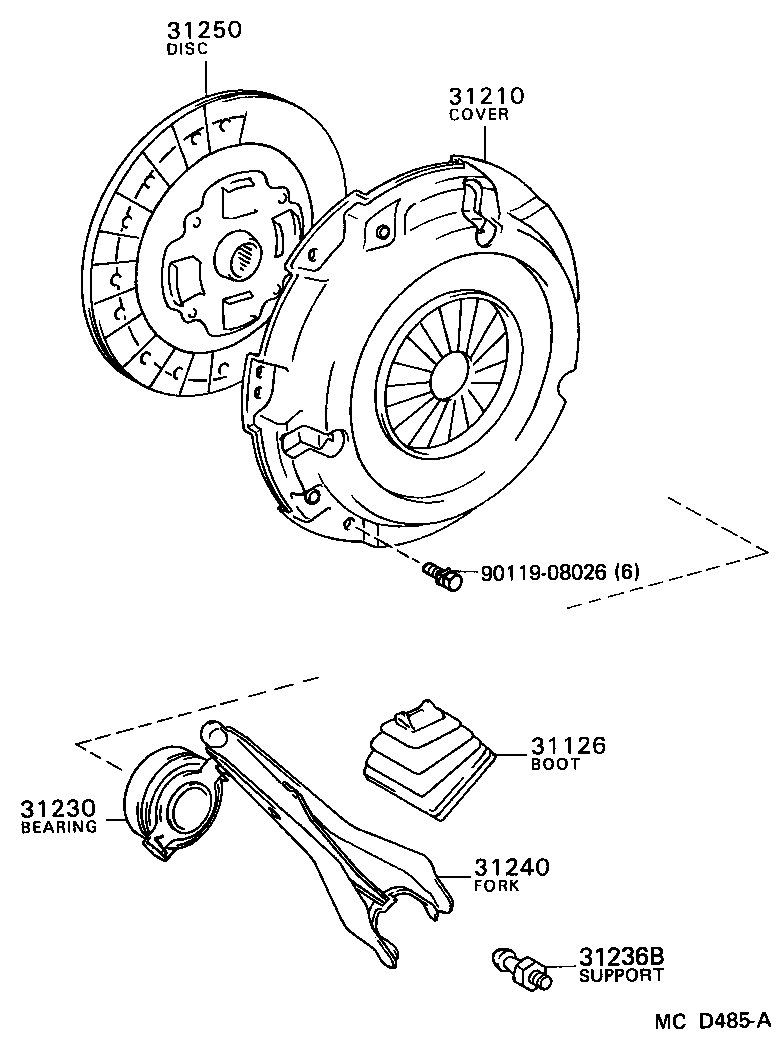

Click highlighted areas on diagram

diagram 31126 31210 31230 31236B 31240 31250 9011908026
Part # Description Qty Price
31126 - BOOT, CLUTCH RELEASE FORK
31126-12050

AE82..MTM

 1
31126-12051

AE82..MTM

 1
31210 - COVER ASSY, CLUTCH
31210-12120

AE82..MTM..(GTS,Q)

 1
31210-12080

AE82..MTM..(GTS,Q)

 1
31230 - BEARING ASSY, CLUTCH RELEASE
31230-12140

AE82..MTM

 1
31230-16060

AE82..MTM

 1
31230-12100

AE82..MTM

 1
31236B - SUPPORT, RELEASE FORK
31236-12011

AE82..MTM

 1
31240 - FORK ASSY, CLUTCH RELEASE
31204-12050

AE82..MTM

 1
31250 - DISC ASSY, CLUTCH
31250-17010

AE82..MTM..(GTS,Q)

 1
Common parts
90119-08026
