AE82L-EGMQFA (1986)
Toyota Corolla Fx
Production
Sep 1986
-
Aug 1988
Engine
4AGELC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8609- )4AGELC

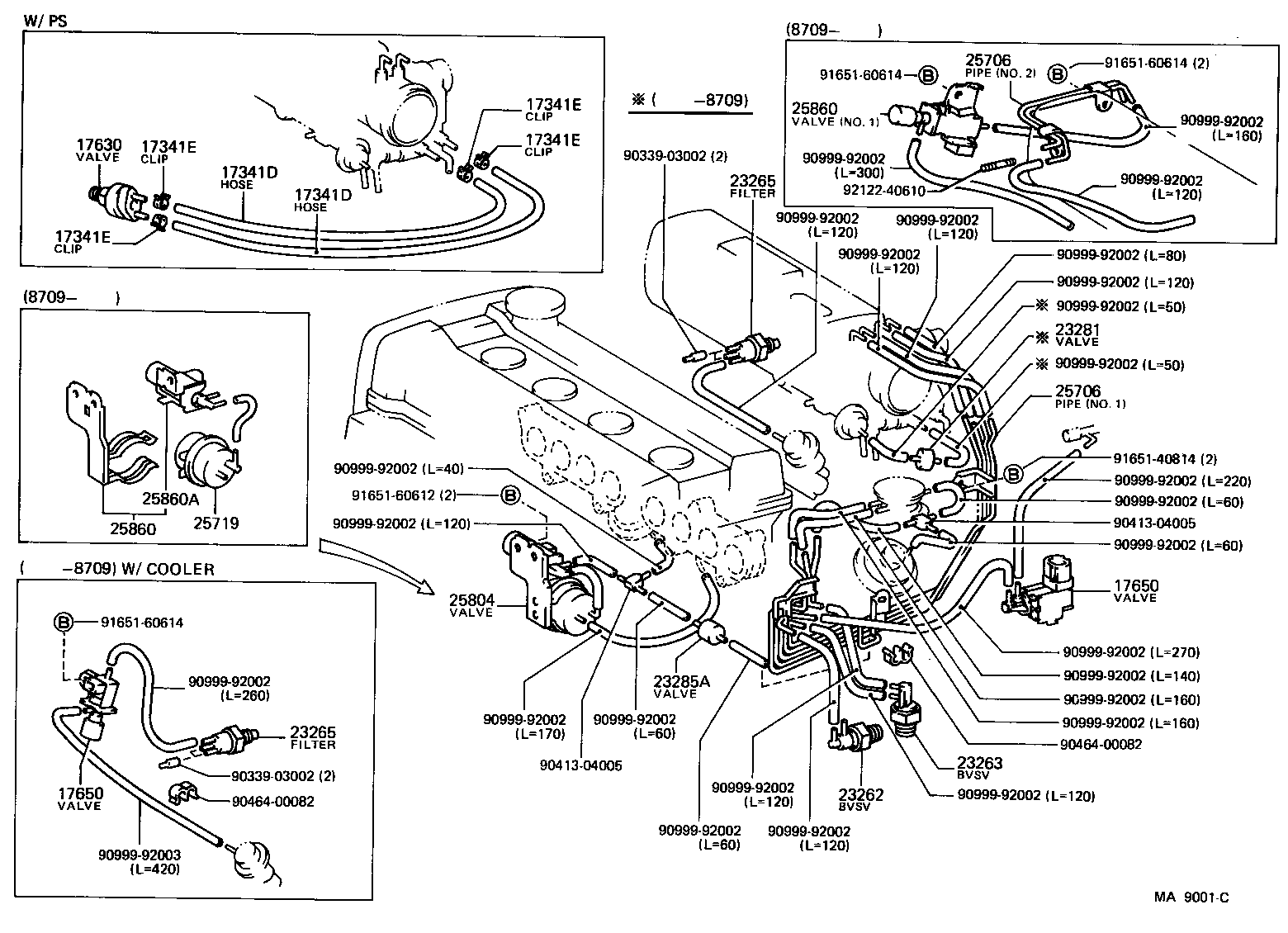

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-16090 |
4AGELC..AE82 W/PS |
2 | ||
| 17341D - HOSE, NO.1(FOR IDLE-UP) | ||||
| 17341-16090 |
4AGELC..AE82 W/PS |
2 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGELC..AE82 W/PS |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGELC..AE82 W/PS |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGELC..AE82 W/PS |
4 | ||
| 17341E - CLIP, NO.1(FOR IDLE-UP HOSE) | ||||
| 96132-30400 |
4AGELC..AE82 W/PS |
4 | ||
| 17630 - VALVE ASSY, AIR CONTROL | ||||
| 17630-70010 |
4AGELC..AE82 W/PS |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90081-91002 |
4AGELC..AE82 W/COOLER |
1 | ||
| 90081-91004 |
4AGELC..AE82 |
1 | ||
| 17650 - VALVE ASSY, VACUUM SWITCHING | ||||
| 90081-91002 |
4AGELC..AE82 W/COOLER |
1 | ||
| 90081-91004 |
4AGELC..AE82 |
1 | ||
| 23262 - VALVE, BIMETAL VACUUM SWITCHING, NO.1 | ||||
| 90925-05068 |
4AGELC..AE82 |
1 | ||
| 23263 - VALVE, BIMETAL VACUUM SWITCHING, NO.2 | ||||
| 90925-05047 |
4AGELC..AE82 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
4AGELC..AE82 |
1 | ||
| 23265 - FILTER, GAS, NO.1 | ||||
| 90917-11027 |
4AGELC..AE82 |
1 | ||
| 23281 - VALVE, VACUUM TRANSMITTING, NO.1 | ||||
| 90925-01014 |
4A#..AE82 |
1 | ||
| 23285A - VALVE, CHECK, NO.1 | ||||
| 90917-10049 |
4A#..AE82 |
2 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16110 |
4AGELC..AE82 NO.1 |
1 | ||
| 25706-16240 |
4AGELC..AE82 NO.2 |
1 | ||
| 25706 - PIPE SUB-ASSY, VACUUM TRANSMITTING, NO.1 | ||||
| 25706-16110 |
4AGELC..AE82 NO.1 |
1 | ||
| 25706-16240 |
4AGELC..AE82 NO.2 |
1 | ||
| 25719 - TANK, VACUUM SURGE | ||||
| 25719-16020 |
4AGELC..AE82 |
1 | ||
| 25804 - VALVE SET, VACUUM CONTROL | ||||
| 25804-16010 |
4AGELC..AE82 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-01020 |
4AGELC..AE82 NO.1 |
1 | ||
| 25860-16070 |
4AGELC..AE82 NO.2 |
1 | ||
| 25860 - VALVE ASSY, VACUUM SWITCHING, NO.1 | ||||
| 25860-01020 |
4AGELC..AE82 NO.1 |
1 | ||
| 25860-16070 |
4AGELC..AE82 NO.2 |
1 | ||
| 25860A - VALVE, VACUUM SWITCHING, NO.1 | ||||
| 90910-12052 |
4AGELC..AE82 |
1 | ||
| Common parts | ||||
| 90339-03002 | ||||
| 90413-04005 | ||||
| 90464-00082 | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 91651-60614 | ||||
| 92122-40610 | ||||
(8609- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| Common parts | ||||
| 90999-92002 | ||||
| 90999-92003 | ||||
| 90999-92004 | ||||
| 90999-92006 | ||||
| 90999-92007 | ||||
| 90999-92008 | ||||
