AE82L-EGMQFA (1986)

Toyota Corolla Fx

Production Sep 1986 - Aug 1988
Engine 4AGELC
Transmission MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8609- )4AGELC

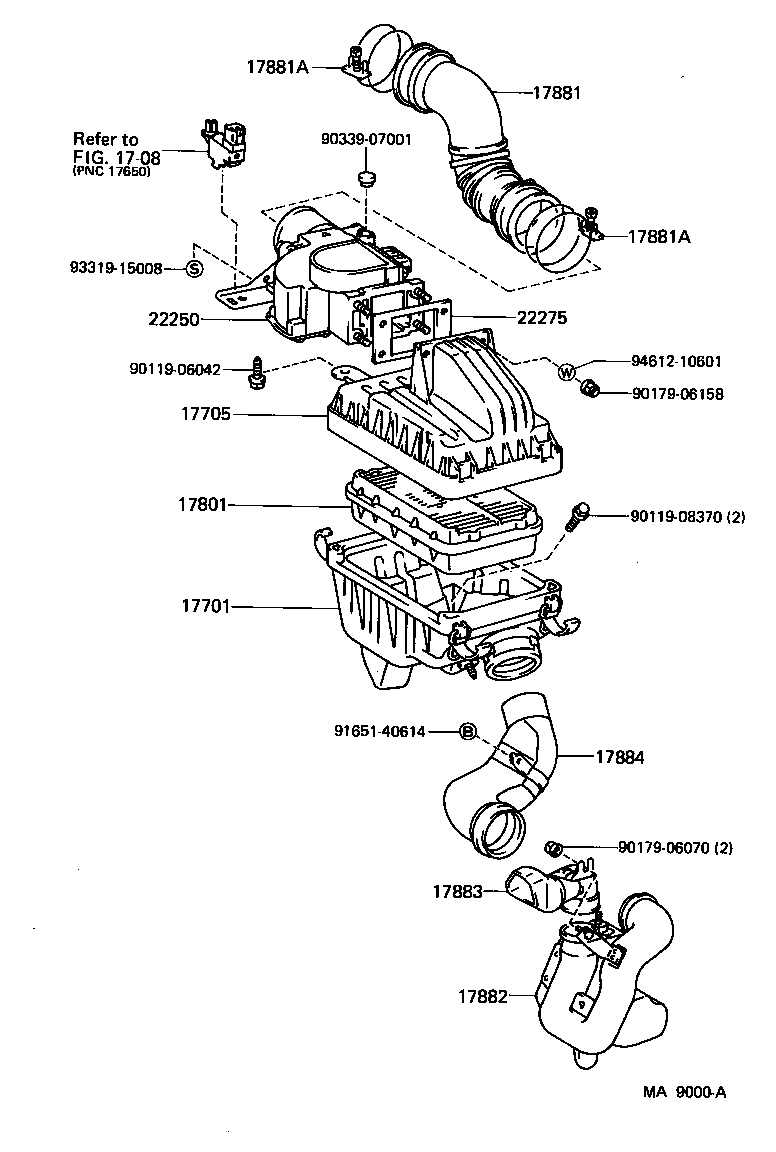

Click highlighted areas on diagram

diagram 1708 17701 17705 17801 17881 17881A 17881A 17882 17883 17884 22250 22275 9011906042 9011908370 9017906070 9017906158 9033907001 9165140614 9331915008 9461210601
Part # Description Qty Price
17701 - CASE SUB-ASSY, AIR CLEANER
17701-16040

4AGELC..AE82

 1
17705 - CAP SUB-ASSY, AIR CLEANER
17705-74061

4AGELC..AE82

 1
17801 - ELEMENT SUB-ASSY, AIR CLEANER FILTER
17801-74010

4AGELC..AE82

 1
17801-01020

4AGELC..AE82

 1
17881 - HOSE, AIR CLEANER, NO.1
17881-16170

4AGELC..AE82

 1
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

4AGELC..AE82

 2
17881A - CLAMP(FOR AIR CLEANER HOSE, NO.1)
96111-10800

4AGELC..AE82

 2
17882 - HOSE, AIR CLEANER, NO.2
17880-12050

4AGELC..AE82

 1
17883 - HOSE, AIR CLEANER, NO.3
17884-12020

4AGELC..AE82

 1
17884-02011

4AGELC..AE82

 1
17884 - HOSE, AIR CLEANER, NO.4
17881-12080

4AGELC..AE82

 1
22250 - METER ASSY, INTAKE AIR FLOW
22250-02010

4AGELC..AE82

 1
22250-02011

4AGELC..AE82

 1
22275 - GASKET, AIR FLOW METER
22275-41010

4AGELC..AE82

 1
Common parts
90119-06042
90119-08370
90179-06070
90179-06158
90339-07001
91651-40614
93319-15008
94612-10601
Linked diagrams
1708
