AE82L-EGMDCA (1987)
Toyota Corolla Fx
Production
Feb 1987
-
Aug 1988
Engine
4ALC
Transmission
MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8702- )4ALC

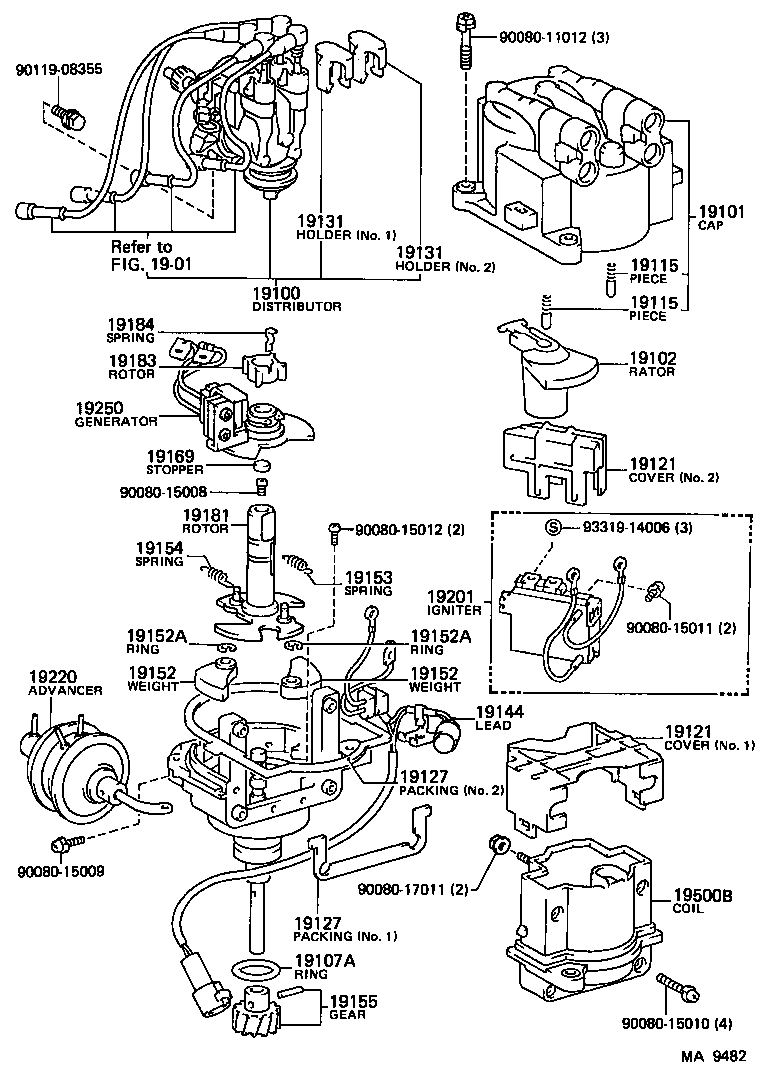

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 19100 - DISTRIBUTOR ASSY | ||||
| 19030-16082 |
4ALC..AE82 |
1 | ||
| 19101 - CAP SUB-ASSY, DISTRIBUTOR | ||||
| 19101-15090 |
4ALC..AE82 |
1 | ||
| 19102 - ROTOR SUB-ASSY, DISTRIBUTOR | ||||
| 19102-73021 |
4ALC..AE82 |
1 | ||
| 19102-16060 |
4A#..AE82 |
1 | ||
| 19107A - RING, O, DISTRIBUTOR HOUSING | ||||
| 96711-35030 |
4A#..AE82 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
4ALC..AE82 |
1 | ||
| 19115 - PIECE, DISTRIBUTOR CAP, CENTER | ||||
| 19115-63010 |
4ALC..AE82 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19121-63040 |
4ALC..AE82 NO.1 |
1 | ||
| 19121 - COVER, DUST PROOF | ||||
| 19121-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19121-63040 |
4ALC..AE82 NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19127-63020 |
4ALC..AE82 NO.1 |
1 | ||
| 19127 - PACKING, DUST PROOF | ||||
| 19127-15090 |
4ALC..AE82 NO.2 |
1 | ||
| 19127-63020 |
4ALC..AE82 NO.1 |
1 | ||
| 19131 - HOLDER, CORD | ||||
| 19131-15020 |
4ALC..AE82 NO.2 |
1 | ||
| 19131-15010 |
4ALC..AE82 NO.1 |
1 | ||
| 19131 - HOLDER, CORD | ||||
| 19131-15020 |
4ALC..AE82 NO.2 |
1 | ||
| 19131-15010 |
4ALC..AE82 NO.1 |
1 | ||
| 19144 - LEAD, DISTRIBUTOR BREAKER | ||||
| 19144-16011 |
4ALC..AE82 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
4ALC..AE82 |
1 | ||
| 19152 - WEIGHT, GOVERNOR | ||||
| 19152-15160 |
4ALC..AE82 |
1 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
4ALC..AE82 |
1 | ||
| 19152A - RING, SNAP(FOR GOVERNOR WEIGHT) | ||||
| 90099-07122 |
4ALC..AE82 |
1 | ||
| 19153 - SPRING, GOVERNOR, A | ||||
| 19153-01021 |
4ALC..AE82 |
1 | ||
| 19154 - SPRING, GOVERNOR, B | ||||
| 19154-01021 |
4ALC..AE82 |
1 | ||
| 19155 - GEAR, SPIRAL, DISTRIBUTOR | ||||
| 19195-15021 |
4ALC..AE82 |
1 | ||
| 19169 - STOPPER, CAM GREASE | ||||
| 19169-63011 |
4ALC..AE82 |
1 | ||
| 19181 - ROTOR, DISTRIBUTOR, SIGNAL | ||||
| 19181-01031 |
4ALC..AE82 |
1 | ||
| 19183 - ROTOR, SIGNAL | ||||
| 19183-63010 |
4ALC..AE82 |
1 | ||
| 19184 - SPRING, ROTOR SET | ||||
| 19184-63010 |
4ALC..AE82 |
1 | ||
| 19201 - IGNITER | ||||
| 89620-16080 |
4ALC..AE82 |
1 | ||
| 19220 - ADVANCER ASSY, VACUUM, DISTRIBUTOR | ||||
| 19220-01021 |
4ALC..AE82 |
1 | ||
| 19250 - GENERATOR ASSY, SIGNAL | ||||
| 19251-15091 |
4ALC..AE82 |
1 | ||
| 19500B - COIL ASSY, IGNITION | ||||
| 90919-02135 |
4ALC..AE82 |
1 | ||
| Common parts | ||||
| 90080-11012 | ||||
| 90080-15008 | ||||
| 90080-15009 | ||||
| 90080-15010 | ||||
| 90080-15011 | ||||
| 90080-15012 | ||||
| 90080-17011 | ||||
| 90119-08355 | ||||
| 93319-14006 | ||||
| Linked diagrams | ||||
| 1901 | ||||
