AE82L-EGHDCA (1987)
Toyota Corolla Fx
Production
Feb 1987
-
Aug 1988
Engine
4ALC
Transmission
ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8702- )4ALC

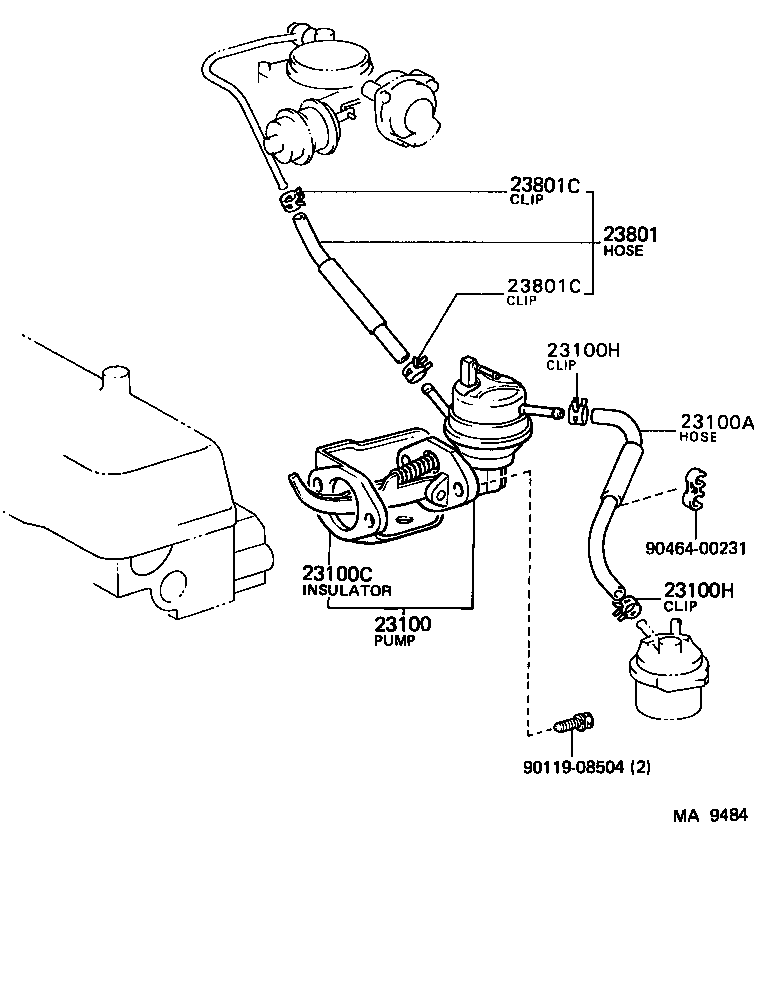

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 23100 - PUMP ASSY, FUEL | ||||
| 23100-19225 |
4ALC..AE82 |
1 | ||
| 23100A - HOSE, FUEL | ||||
| 23271-15070 |
4ALC..AE82 |
1 | ||
| 23100C - INSULATOR, FUEL PUMP | ||||
| 23915-15011 |
4ALC..AE82 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4ALC..AE82 |
1 | ||
| 23100H - CLIP(FOR FUEL HOSE) | ||||
| 96132-30600 |
4ALC..AE82 |
1 | ||
| 23801 - PIPE OR HOSE SUB-ASSY, CARBURETOR FUEL, NO.1 | ||||
| 23271-15010 |
4ALC..AE82 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4ALC..AE82 |
1 | ||
| 23801C - CLIP(FOR CARBURETOR FUEL HOSE) | ||||
| 96132-30600 |
4ALC..AE82 |
1 | ||
| Common parts | ||||
| 90119-08504 | ||||
| 90464-00231 | ||||
