AE82L-EGHDCA (1987)

Toyota Corolla Fx

Production Feb 1987 - Aug 1988
Engine 4ALC
Transmission ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8702- )4ALC

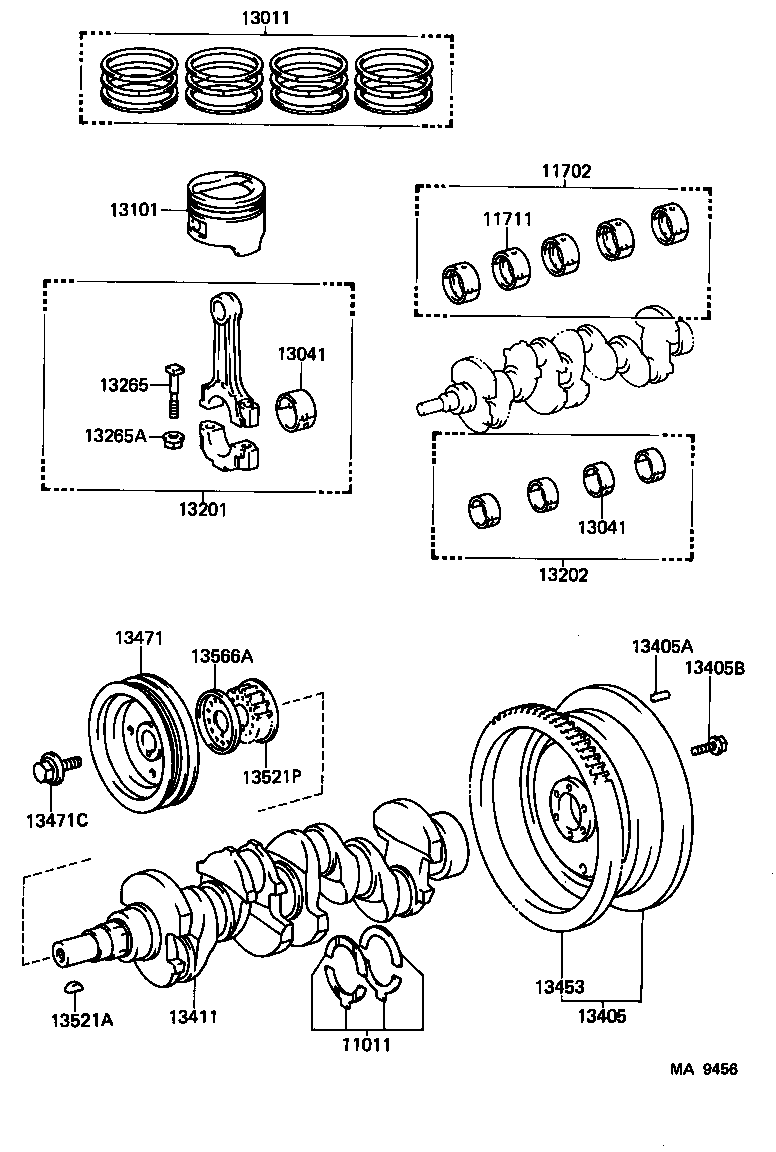

Click highlighted areas on diagram

diagram 11011 11702 11711 13011 13041 13041 13101 13201 13202 13265 13265A 13405 13405A 13405B 13411 13453 13471 13471C 13521A 13521P 13566A
Part # Description Qty Price
11011 - WASHER SET, CRANKSHAFT THRUST
11011-15010

4A#..AE82

STD

 1
11702 - BEARING SET, CRANKSHAFT
11704-15050

4A#..AE82

U/S 0.25,U/S 0.25

 1
11711 - BEARING, CRANKSHAFT
11701-1505003

4A#..AE82

MARK"3",MARK 3

 5
11701-1505001

4A#..AE82

MARK"1",MARK 1

 5
11701-1505004

4A#..AE82

MARK"4",MARK 4

 5
11701-1505005

4A#..AE82

MARK"5",MARK 5

 5
11701-1505002

4A#..AE82

MARK"2",MARK 2

 5
13011 - RING SET, PISTON
13013-16011

4ALC..AE82

O/S 0.50

 1
13011-16011

4ALC..AE82

STD

 1
13041 - BEARING, CONNECTING ROD
13041-1503001

4ALC..AE82

MARK"1",MARK 1

 4
13041-1503003

4ALC..AE82

MARK"3",MARK 3

 4
13041-1503002

4ALC..AE82

MARK"2",MARK 2

 4
13041 - BEARING, CONNECTING ROD
13041-1503001

4ALC..AE82

MARK"1",MARK 1

 4
13041-1503003

4ALC..AE82

MARK"3",MARK 3

 4
13041-1503002

4ALC..AE82

MARK"2",MARK 2

 4
13101 - PISTON SUB-ASSY, W/PIN
13101-16010

4ALC..AE82

STD,STD

 4
13103-16010

4ALC..AE82

O/S 0.50,O/S 0.50

 4
13101-1601003

4ALC..AE82

STD,STD,MARK 3,MARK 3

 4
13101-1601002

4ALC..AE82

STD,STD,MARK 2,MARK 2

 4
13101-1601001

4ALC..AE82

STD,STD,MARK 1,MARK 1

 4
13201 - ROD SUB-ASSY, CONNECTING
13201-19055

4ALC..AE82

 4
13202 - BEARING SET, CONNECTING ROD
13204-15030

4ALC..AE82

U/S 0.25,U/S 0.25

 1
13265 - BOLT, CONNECTING ROD
13265-16010

4A#..AE82

 8
13265-15020

4A#..AE82

 8
13265A - NUT, HEXAGON(FOR CONNECTING ROD BOLT)
90170-09001

4A#..AE82

 8
90170-09003

4A#..AE82

 8
13411 - CRANKSHAFT
13411-15040

4ALC..AE82

 1
13471 - PULLEY, CRANKSHAFT
13470-15020

4ALC..AE82

 1
13471C - BOLT(FOR CRANKSHAFT PULLEY SET)
90119-12101

4ALC..AE82

 1
13521A - KEY(FOR CRANKSHAFT TIMING GEAR)
95161-10519

4A#..AE82

 1
90280-05010

4A#..AE82

 1
13521P - PULLEY, CRANKSHAFT TIMING
13521-15010

4ALC..AE82

 1
13566A - GUIDE, TIMING BELT
13566-15010

4A#..AE82

 1
