AE92L-ACMXUK (1987)
Toyota Corolla Cp
Production
Aug 1987
-
Aug 1989
Engine
4AF
Transmission
5F MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8708-8908)4AF ; (8908- )4AFE

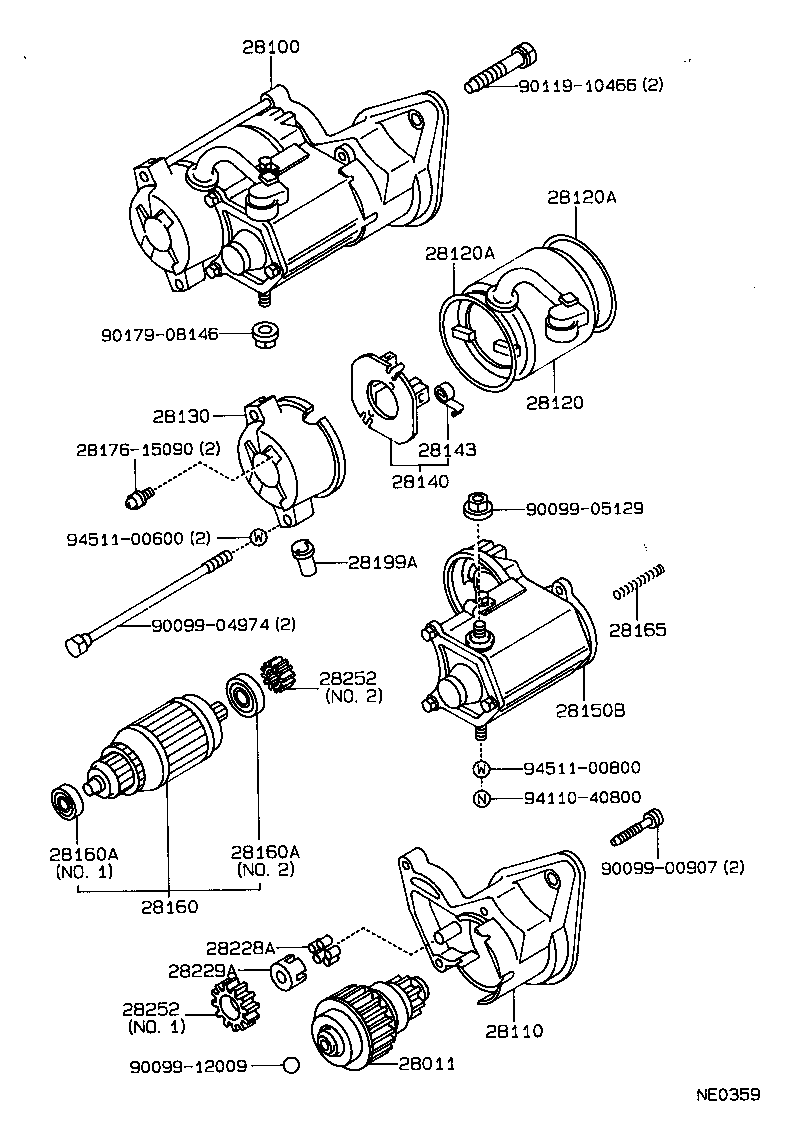

Click highlighted areas on diagram
12V 1.4KW
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 28011 - CLUTCH SUB-ASSY, STARTER | ||||
| 28011-26042 |
4AF#,4AGE..AE92 |
1 | ||
| 28100 - STARTER ASSY | ||||
| 28100-16050 |
4AF..AE92..CND 12V 1.4KW |
1 | ||
| 28110 - HOUSING ASSY, STARTER DRIVE | ||||
| 28110-16050 |
4AF#..AE92..CND |
1 | ||
| 28120 - YOKE ASSY, STARTER | ||||
| 28120-15090 |
4AF#,4AGE..AE92..CND |
1 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
4AF#,4AGE..AE92..CND |
2 | ||
| 28120A - RING, O(FOR STARTER YOKE) | ||||
| 90099-14064 |
4AF#,4AGE..AE92..CND |
2 | ||
| 28130 - FRAME ASSY, STARTER COMMUTATOR END | ||||
| 28130-72020 |
4AF#..AE92..CND |
1 | ||
| 28140 - HOLDER ASSY, STARTER BRUSH | ||||
| 28140-15090 |
4AF#,4AGE..AE92..CND |
1 | ||
| 28143 - SPRING, STARTER BRUSH | ||||
| 90099-17112 |
4AF#,4AGE..AE92 |
4 | ||
| 28150B - SWITCH ASSY, MAGNETIC | ||||
| 28150-72090 |
4AF#..AE92..CND |
1 | ||
| 28160 - ARMATURE ASSY, STARTER | ||||
| 28160-15090 |
4A#..AE92..CND |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
4AF#,4AGE..AE92..CND NO.2 |
1 | ||
| 90099-10144 |
4AF#,4AGE..AE92..CND NO.1 |
1 | ||
| 28160A - BEARING, STARTER ARMATURE | ||||
| 90099-10143 |
4AF#,4AGE..AE92..CND NO.2 |
1 | ||
| 90099-10144 |
4AF#,4AGE..AE92..CND NO.1 |
1 | ||
| 28165 - SPRING, STARTER MAGNET SWITCH RETURN | ||||
| 28165-26040 |
4AF#,4AGE..AE92 |
1 | ||
| 28199A - PROTECTOR, DUST STARTER | ||||
| 28199-72020 |
4AF#..AE92..CND |
1 | ||
| 28228A - ROLLER, STARTER CLUTCH | ||||
| 28228-26040 |
4AF#,4AGE..AE92 |
5 | ||
| 28229A - RETAINER, STARTER IDLE GEAR | ||||
| 28229-26040 |
4AF#,4AGE..AE92 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28251-15090 |
4AF#,4AGE..AE92..CND NO.2 |
1 | ||
| 28254-45020 |
4AF#,4AGE..AE92..CND NO.1 |
1 | ||
| 28252 - GEAR, STARTER IDLE | ||||
| 28251-15090 |
4AF#,4AGE..AE92..CND NO.2 |
1 | ||
| 28254-45020 |
4AF#,4AGE..AE92..CND NO.1 |
1 | ||
| Common parts | ||||
| 28176-15090 | ||||
| 90099-00907 | ||||
| 90099-04974 | ||||
| 90099-05129 | ||||
| 90099-12009 | ||||
| 90119-10466 | ||||
| 90179-08146 | ||||
| 94110-40800 | ||||
| 94511-00600 | ||||
| 94511-00800 | ||||
