Toyota Corolla cp AE92 ALTERNATOR

AE92L-ACMVFK (1987)

Toyota Corolla Cp

Production Aug 1987 - Jun 1991

Engine 4AGE

Transmission 5F MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8908- )4A#..CND

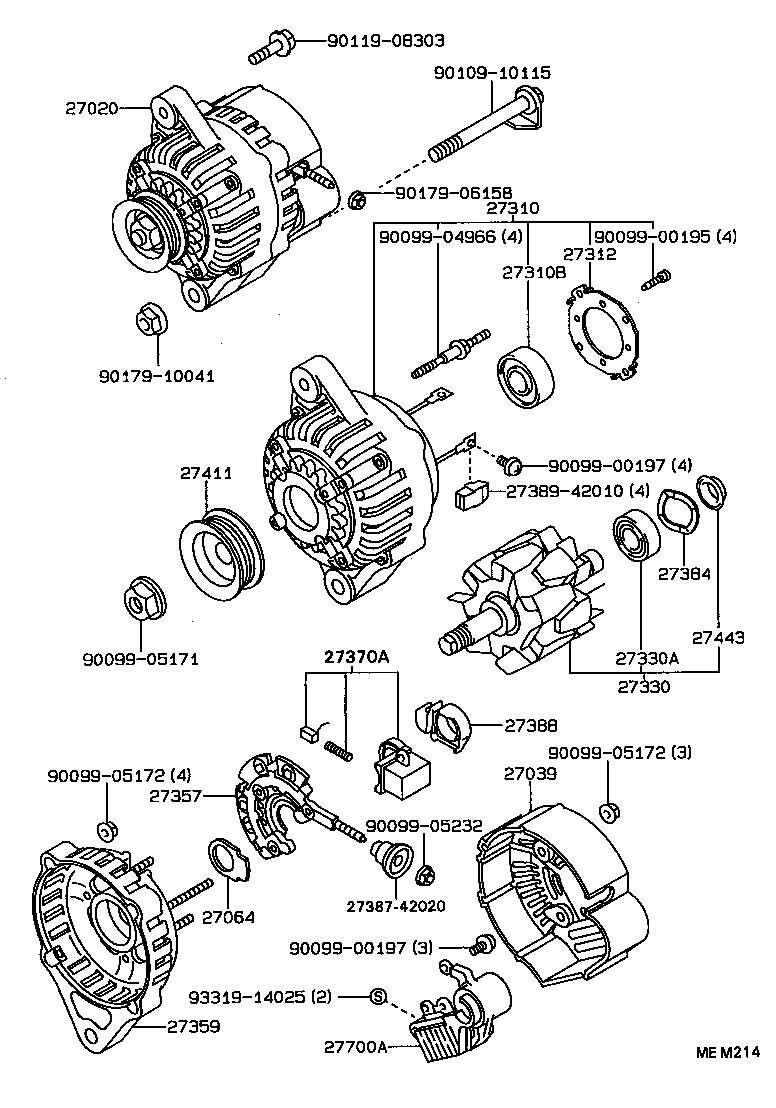

Click highlighted areas on diagram

12V 70A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-16151	4AGE..AE92 12V 60A	08/1987 - 08/1989	1
27060-16240	4AGE..AE92..CND 12V 70A	08/1989 - 06/1991	1
27039 - COVER, ALTERNATOR REAR END
27039-42010	4A#..AE92..CND	08/1989 - 06/1991	1
27039-72010	4A#..AE92	08/1987 - 08/1989	1
27064 - SEAL, ALTERNATOR PLATE
27064-42010	4A#..AE92..CND	08/1989 - 06/1991	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16270	4AGE..AE92..CND	08/1989 - 06/1991	1
27310-16181	4AGE..AE92	08/1987 - 08/1989	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178	4A#..AE92	08/1987 - 08/1989	1
90099-10160	4AGE..AE92..CND	05/1991 - 06/1991	1
90099-10160	4A#..AE92..CND	08/1989 - 05/1991	1
27312 - PLATE, RETAINER
27312-70200	4A#..AE92	08/1987 - 08/1989	1
27312-42010	4A#..AE92..CND	08/1989 - 06/1991	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101	4A#..AE92	08/1987 - 09/1987	1
27330-42010	4A#..AE92..CND	08/1989 - 12/1990	1
27330-76030	4A#..AE92..CND	12/1990 - 06/1991	1
27330-72101	4A#..AE92	09/1987 - 08/1989	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	4AF#,4AGE..AE92	08/1987 - 06/1991	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	4AGE..AE92	08/1987 - 08/1989	1
27357-74050	4A#..AE92..CND	08/1989 - 06/1991	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16270	4AGE..AE92..CND	08/1989 - 06/1991	1
27359-16180	4AGE..AE92	08/1987 - 08/1989	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-42010	4A#..AE92..CND	08/1989 - 05/1991	1
27370-16011	4AGE..AE92	08/1987 - 08/1989	1
27370-42010	4AGE..AE92..CND	05/1991 - 06/1991	1
27384 - WASHER
27384-42010	4AGE..AE92..CND	05/1991 - 06/1991	1
27384-42010	4A#..AE92..CND	08/1989 - 05/1991	1
27388 - COVER, ALTERNATOR BRUSH
27388-42010	4A#..AE92..CND	08/1989 - 06/1991	1
27411 - PULLEY, ALTERNATOR
27411-16180	4AGE..AE92	08/1987 - 08/1989	1
27411-16270	4A#..AE92..CND	08/1989 - 12/1990	1
27411-16270	4AGE..AE92..CND	12/1990 - 06/1991	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	4AF#,4AGE..AE92	08/1987 - 06/1991	1
27700A - REGULATOR ASSY, GENERATOR
27700-16010	4AGE..AE92	08/1987 - 06/1991	1
Common parts
27387-42020
27389-42010
90099-00195
90099-00197
90099-04966
90099-05171
90099-05172
90099-05232
90109-10115
90119-08303
90179-06158
90179-10041
93319-14025

(8708-8908)4AGE

Click highlighted areas on diagram

12V 60A

Part #	Description	Period	Qty
27020 - ALTERNATOR ASSY
27060-16151	4AGE..AE92 12V 60A	08/1987 - 08/1989	1
27060-16240	4AGE..AE92..CND 12V 70A	08/1989 - 06/1991	1
27039 - COVER, ALTERNATOR REAR END
27039-42010	4A#..AE92..CND	08/1989 - 06/1991	1
27039-72010	4A#..AE92	08/1987 - 08/1989	1
27310 - FRAME ASSY, DRIVE END, ALTERNATOR
27310-16270	4AGE..AE92..CND	08/1989 - 06/1991	1
27310-16181	4AGE..AE92	08/1987 - 08/1989	1
27310B - BEARING(FOR ALTERNATOR DRIVE END FRAME)
90099-10178	4A#..AE92	08/1987 - 08/1989	1
90099-10160	4AGE..AE92..CND	05/1991 - 06/1991	1
90099-10160	4A#..AE92..CND	08/1989 - 05/1991	1
27312 - PLATE, RETAINER
27312-70200	4A#..AE92	08/1987 - 08/1989	1
27312-42010	4A#..AE92..CND	08/1989 - 06/1991	1
27330 - ROTOR ASSY, ALTERNATOR
27330-72101	4A#..AE92	08/1987 - 09/1987	1
27330-42010	4A#..AE92..CND	08/1989 - 12/1990	1
27330-76030	4A#..AE92..CND	12/1990 - 06/1991	1
27330-72101	4A#..AE92	09/1987 - 08/1989	1
27330A - BEARING(FOR ALTERNATOR ROTOR)
90099-10140	4AF#,4AGE..AE92	08/1987 - 06/1991	1
27357 - HOLDER, ALTERNATOR, W/RECTIFIER
27357-63020	4AGE..AE92	08/1987 - 08/1989	1
27357-74050	4A#..AE92..CND	08/1989 - 06/1991	1
27359 - FRAME, ALTERNATOR RECTIFIER END
27359-16270	4AGE..AE92..CND	08/1989 - 06/1991	1
27359-16180	4AGE..AE92	08/1987 - 08/1989	1
27370A - HOLDER ASSY, ALTERNATOR BRUSH
27370-42010	4A#..AE92..CND	08/1989 - 05/1991	1
27370-16011	4AGE..AE92	08/1987 - 08/1989	1
27370-42010	4AGE..AE92..CND	05/1991 - 06/1991	1
27371 - BRUSH, ALTERNATOR
27371-63020	4A#..AE92	08/1987 - 08/1989	2
27372 - SPRING, ALTERNATOR BRUSH
27372-72100	4A#..AE92	08/1987 - 08/1989	2
27411 - PULLEY, ALTERNATOR
27411-16180	4AGE..AE92	08/1987 - 08/1989	1
27411-16270	4A#..AE92..CND	08/1989 - 12/1990	1
27411-16270	4AGE..AE92..CND	12/1990 - 06/1991	1
27443 - COVER, ALTERNATOR BEARING
27443-63020	4AF#,4AGE..AE92	08/1987 - 06/1991	1
27700A - REGULATOR ASSY, GENERATOR
27700-16010	4AGE..AE92	08/1987 - 06/1991	1
Common parts
27387-70170
27389-63020
90099-00949
90099-00959
90099-04966
90099-05119
90099-05171
90099-05172
90101-10123
90119-08303
90179-06158
90179-10067
90201-10344
93319-14025

AE92L-ACMVFK (1987)

(8908- )4A#..CND

(8708-8908)4AGE
