AE86L-ESPXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
2D ATM
Displacement
2500cc
Power
168 HP (125 kW)

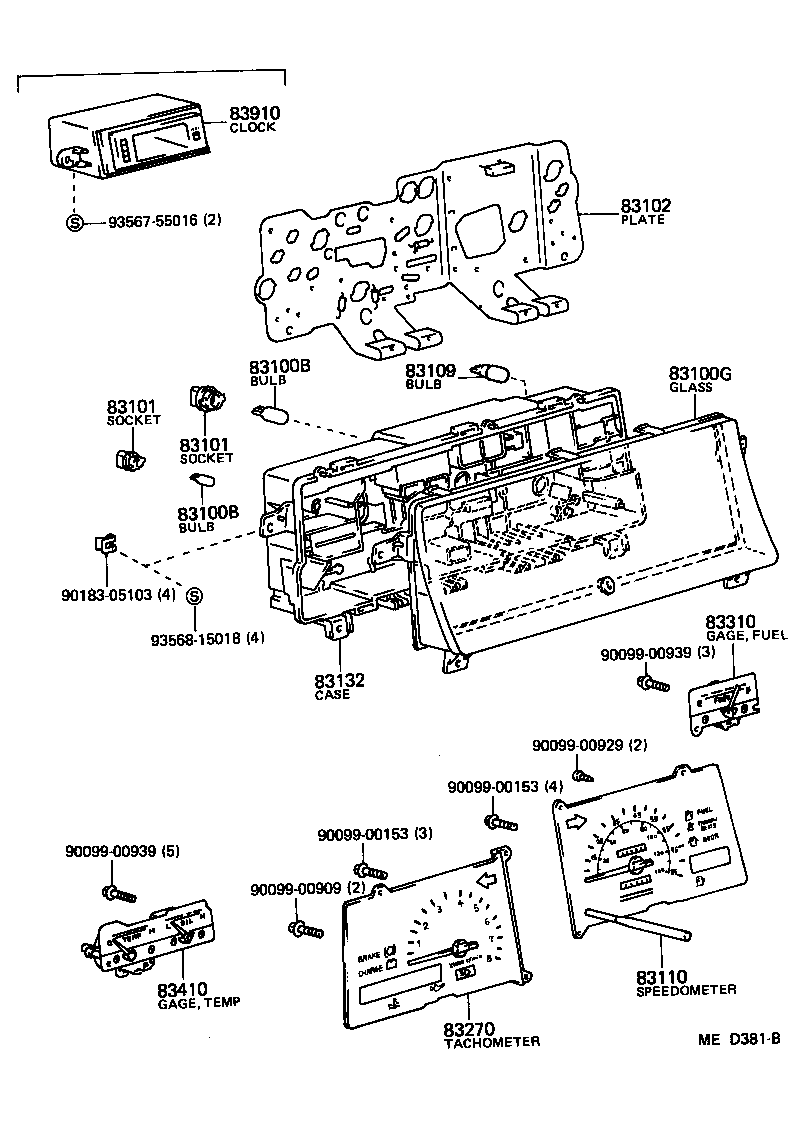

(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE86 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 99132-12034 |
AE86 12V 3.4W,12V 3.4W |
8 | ||
| 83100B - BULB, COMBINATION METER, NO.1 | ||||
| 90981-11018 |
AE86 12V 1.2W W/O SOCKET,12V 1.4W |
5 | ||
| 99132-12034 |
AE86 12V 3.4W,12V 3.4W |
8 | ||
| 83100G - GLASS, COMBINATION METER | ||||
| 83133-12730 |
AE86 |
1 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE86 BULB=12V 3.4W |
8 | ||
| 83101-14040 |
AE86 BULB=12V 1.4W |
5 | ||
| 83101 - SOCKET SUB-ASSY, COMBINATION METER BULB | ||||
| 83101-14030 |
AE86 BULB=12V 3.4W |
8 | ||
| 83101-14040 |
AE86 BULB=12V 1.4W |
5 | ||
| 83102 - PLATE SUB-ASSY, COMBINATION METER CIRCUIT, NO.1 | ||||
| 83247-1E330 |
AE86..DX,SR5 |
1 | ||
| 83247-1E330 |
AE86..(DX,SR5)..USA W/*CRC |
1 | ||
| 83247-1E810 |
AE86..(DX,SR5)..USA |
1 | ||
| 83109 - BULB, COMBINATION METER, NO.2 | ||||
| 83109-12010 |
AE86 12V 3.4W,BLUE CAP,12V 3.4W |
4 | ||
| 83110 - SPEEDOMETER ASSY | ||||
| 83110-1A311 |
AE86..(DX,SR5)..USA |
1 | ||
| 83110-1A311 |
AE86..(DX,SR5)..USA W/*CRC |
1 | ||
| 83110-1A310 |
AE86..(DX,SR5)..USA |
1 | ||
| 83110-1A790 |
AE86..(DX,SR5)..USA |
1 | ||
| 83132 - CASE, COMBINATION METER | ||||
| 83132-12710 |
AE86 |
1 | ||
| 83132-12710 |
AE86..DX,SR5 |
1 | ||
| 83270 - TACHOMETER ASSY, ENGINE | ||||
| 83242-1A050 |
AE86..(DX,SR5)..USA |
1 | ||
| 83242-1A051 |
AE86..(DX,SR5)..USA |
1 | ||
| 83310 - GAGE ASSY, FUEL RECEIVER | ||||
| 83243-12690 |
AE86 |
1 | ||
| 83243-12691 |
AE86 |
1 | ||
| 83410 - GAGE ASSY, WATER TEMPERATURE RECEIVER | ||||
| 83244-1A111 |
AE86 |
1 | ||
| 83244-1A110 |
AE86 |
1 | ||
| 83910 - CLOCK ASSY | ||||
| 83910-12351 |
AE86 |
1 | ||
| 83910-12351 |
AE86..GTS,SR5 |
1 | ||
| 83910-12350 |
AE86 |
1 | ||
| Common parts | ||||
| 90099-00153 | ||||
| 90099-00909 | ||||
| 90099-00929 | ||||
| 90099-00939 | ||||
| 90183-05103 | ||||
| 93567-55016 | ||||
| 93568-15018 | ||||

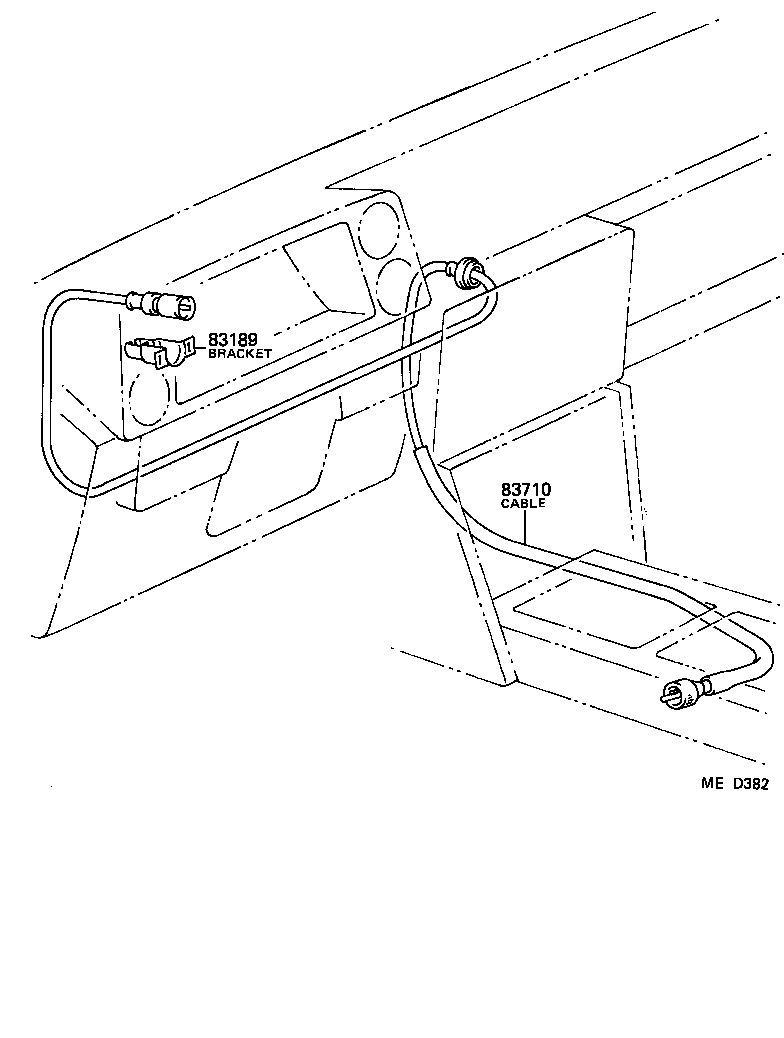

(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83189 - BRACKET, METER | ||||
| 83189-20020 |
AE86 |
1 | ||
| 83710 - CABLE ASSY, SPEEDOMETER DRIVE, NO.1 | ||||
| 83710-12270 |
AE86..4FC |
1 | ||
| 83710-12270 |
AE86 |
1 | ||
