AE86L-ESPXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 2D ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

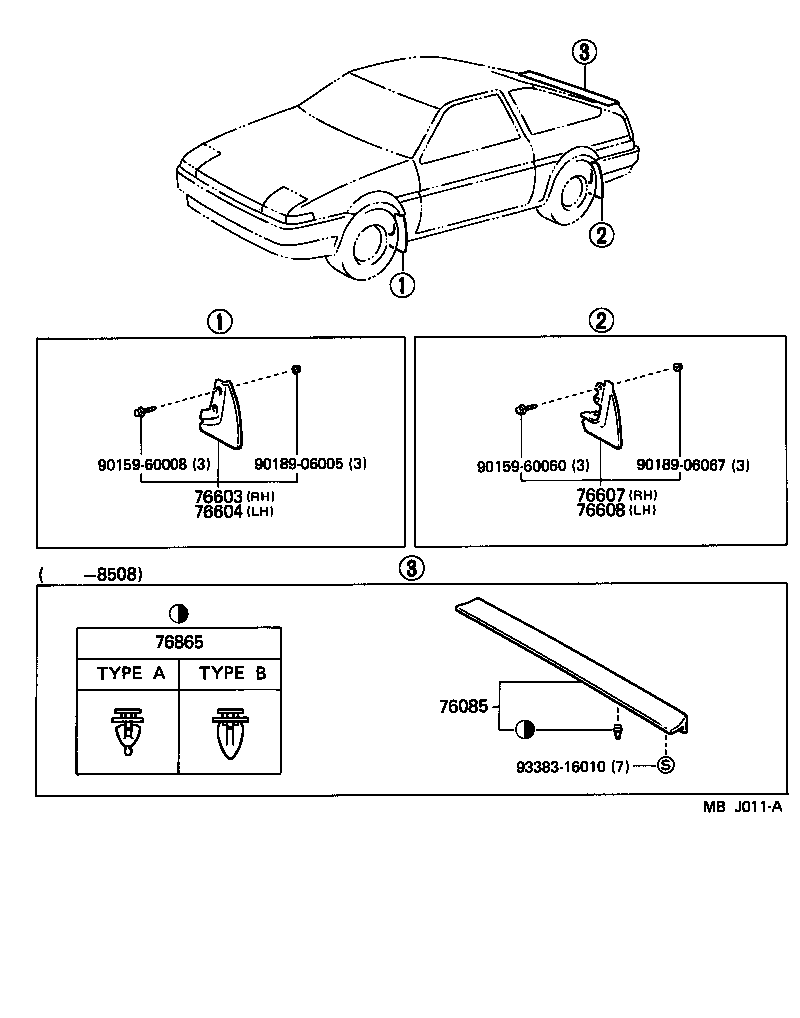

Click highlighted areas on diagram

diagram 76085 76603 76604 76607 76608 76865 9015960008 9015960060 9018906005 9018906067 9338316010
Part # Description Qty Price
76603 - MUDGUARD SUB-ASSY, FRONT FENDER, RH
76621-19075

AE86..GTS,SR5

 1
76621-19076

AE86..GTS,SR5

 1
76604 - MUDGUARD SUB-ASSY, FRONT FENDER, LH
76622-19076

AE86..GTS,SR5

 1
76622-19075

AE86..GTS,SR5

 1
76607 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR RH
76607-19185

AE86..GTS,SR5

 1
76608 - MUDGUARD SUB-ASSY, QUARTER PANEL, REAR LH
76608-19185

AE86..GTS,SR5

 1
Common parts
90159-60008
90159-60060
90189-06005
90189-06067
93383-16010
