AE86L-ESPXCA (1983)
Toyota Corolla Cp

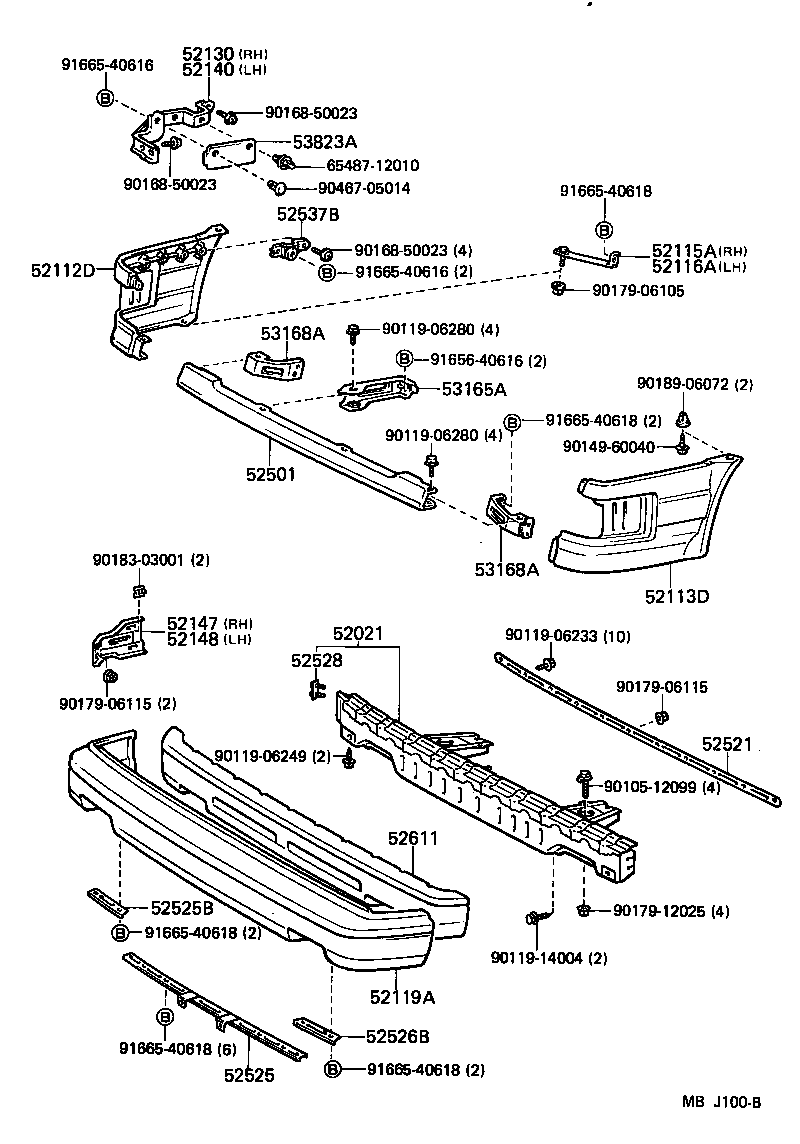

(8308-8508)
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-12100 |
AE86..DX,SR5 |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-12100 |
AE86 |
1 | ||
| 52112-12102 |
AE86..DX,SR5 |
1 | ||
| 52112-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52112-12101 |
AE86..DX,SR5 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52113-12102 |
AE86..DX,SR5 |
1 | ||
| 52113-12101 |
AE86..DX,SR5 |
1 | ||
| 52113-12100 |
AE86 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12160 |
AE86..DX,SR5 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-12160 |
AE86..DX,SR5 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-12160 |
AE86..DX,SR5 |
1 | ||
| 52119-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52119-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52130-12010 |
AE86 |
1 | ||
| 52130-12011 |
AE86 |
1 | ||
| 52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52140-12010 |
AE86 |
1 | ||
| 52140-12011 |
AE86 |
1 | ||
| 52145B - BRACKET, FRONT BUMPER SIDE MOUNTING | ||||
| 52145-12080 |
AE86 |
2 | ||
| 52147 - SUPPORT, FRONT BUMPER, RH | ||||
| 52115-12170 |
AE86 |
1 | ||
| 52148 - SUPPORT, FRONT BUMPER, LH | ||||
| 52116-12140 |
AE86 |
1 | ||
| 52501 - FILLER SUB-ASSY, FRONT BUMPER | ||||
| 52511-12030 |
AE86..DX,SR5 |
1 | ||
| 52511-12031 |
AE86..DX,SR5 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-12060 |
AE86 |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52072-12010 |
AE86 |
1 | ||
| 52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH | ||||
| 52526-12010 |
AE86 |
1 | ||
| 52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH | ||||
| 52526-12010 |
AE86 |
1 | ||
| 52528 - RETAINER, FRONT BUMPER, LOWER CORNER | ||||
| 52528-12020 |
AE86 |
2 | ||
| 52528-12020 |
AE86..DX,SR5 |
2 | ||
| 52537B - SUPPORT, FRONT BUMPER SIDE NO.2 | ||||
| 52537-12010 |
AE86 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-12090 |
AE86 |
1 | ||
| 52671 - EXTENSION, FRONT BUMPER ARM | ||||
| 52671-12010 |
AE86 |
2 | ||
| 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 | ||||
| 53165-12030 |
AE86..DX,SR5 |
2 | ||
| 53168A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.2 | ||||
| 53168-12020 |
AE86..DX,SR5 LH |
1 | ||
| 53167-12030 |
AE86..DX,SR5 RH |
1 | ||
| 52061-12010 |
AE86..DX,SR5 RH |
1 | ||
| 52062-12010 |
AE86..DX,SR5 LH |
1 | ||
| 53168A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.2 | ||||
| 53168-12020 |
AE86..DX,SR5 LH |
1 | ||
| 53167-12030 |
AE86..DX,SR5 RH |
1 | ||
| 52061-12010 |
AE86..DX,SR5 RH |
1 | ||
| 52062-12010 |
AE86..DX,SR5 LH |
1 | ||
| 53823A - PROTECTOR, FRONT SIDE PANEL, NO.2 | ||||
| 53823-12010 |
AE86 |
2 | ||
| Common parts | ||||
| 65487-12010 | ||||
| 90105-12099 | ||||
| 90119-06233 | ||||
| 90119-06249 | ||||
| 90119-06280 | ||||
| 90119-14004 | ||||
| 90159-60008 | ||||
| 90168-50023 | ||||
| 90179-06105 | ||||
| 90179-06115 | ||||
| 90179-12025 | ||||
| 90183-03001 | ||||
| 90189-06006 | ||||
| 90189-06036 | ||||
| 90189-06051 | ||||
| 90467-05014 | ||||
| 91665-40616 | ||||
| 91665-40618 | ||||

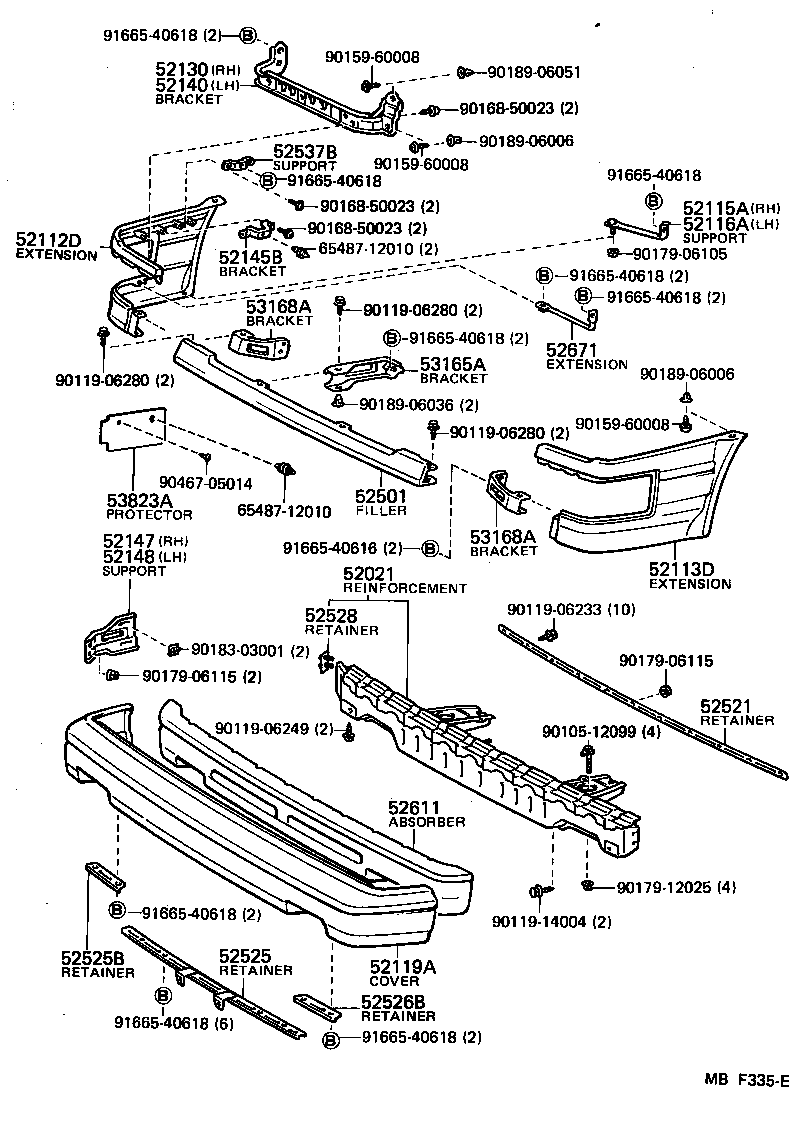

(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 52021 - REINFORCEMENT SUB-ASSY, FRONT BUMPER | ||||
| 52021-12100 |
AE86..DX,SR5 |
1 | ||
| 52112D - EXTENSION, FRONT BUMPER, RH | ||||
| 52112-12100 |
AE86 |
1 | ||
| 52112-12102 |
AE86..DX,SR5 |
1 | ||
| 52112-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52112-12101 |
AE86..DX,SR5 |
1 | ||
| 52113D - EXTENSION, FRONT BUMPER, LH | ||||
| 52113-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52113-12102 |
AE86..DX,SR5 |
1 | ||
| 52113-12101 |
AE86..DX,SR5 |
1 | ||
| 52113-12100 |
AE86 |
1 | ||
| 52115A - SUPPORT, FRONT BUMPER SIDE, RH | ||||
| 52115-12160 |
AE86..DX,SR5 |
1 | ||
| 52116A - SUPPORT, FRONT BUMPER SIDE, LH | ||||
| 52115-12160 |
AE86..DX,SR5 |
1 | ||
| 52119A - COVER, FRONT BUMPER | ||||
| 52119-12160 |
AE86..DX,SR5 |
1 | ||
| 52119-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52119-12900 |
AE86..SR5 TWO TONE COLOR |
1 | ||
| 52130 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, RH | ||||
| 52130-12010 |
AE86 |
1 | ||
| 52130-12011 |
AE86 |
1 | ||
| 52140 - BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH | ||||
| 52140-12010 |
AE86 |
1 | ||
| 52140-12011 |
AE86 |
1 | ||
| 52147 - SUPPORT, FRONT BUMPER, RH | ||||
| 52115-12170 |
AE86 |
1 | ||
| 52148 - SUPPORT, FRONT BUMPER, LH | ||||
| 52116-12140 |
AE86 |
1 | ||
| 52501 - FILLER SUB-ASSY, FRONT BUMPER | ||||
| 52511-12030 |
AE86..DX,SR5 |
1 | ||
| 52511-12031 |
AE86..DX,SR5 |
1 | ||
| 52521 - RETAINER, FRONT BUMPER, UPPER CENTER | ||||
| 52521-12060 |
AE86 |
1 | ||
| 52525 - RETAINER, FRONT BUMPER, LOWER CENTER | ||||
| 52072-12010 |
AE86 |
1 | ||
| 52525B - RETAINER, FRONT BUMPER, LOWER SIDE RH | ||||
| 52526-12010 |
AE86 |
1 | ||
| 52526B - RETAINER, FRONT BUMPER, LOWER SIDE LH | ||||
| 52526-12010 |
AE86 |
1 | ||
| 52528 - RETAINER, FRONT BUMPER, LOWER CORNER | ||||
| 52528-12020 |
AE86 |
2 | ||
| 52528-12020 |
AE86..DX,SR5 |
2 | ||
| 52537B - SUPPORT, FRONT BUMPER SIDE NO.2 | ||||
| 52537-12010 |
AE86 |
2 | ||
| 52611 - ABSORBER, FRONT BUMPER ENERGY | ||||
| 52611-12090 |
AE86 |
1 | ||
| 53165A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.1 | ||||
| 53165-12030 |
AE86..DX,SR5 |
2 | ||
| 53168A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.2 | ||||
| 53168-12020 |
AE86..DX,SR5 LH |
1 | ||
| 53167-12030 |
AE86..DX,SR5 RH |
1 | ||
| 52061-12010 |
AE86..DX,SR5 RH |
1 | ||
| 52062-12010 |
AE86..DX,SR5 LH |
1 | ||
| 53168A - BRACKET, FRONT BUMPER STONE DEFLECTOR, NO.2 | ||||
| 53168-12020 |
AE86..DX,SR5 LH |
1 | ||
| 53167-12030 |
AE86..DX,SR5 RH |
1 | ||
| 52061-12010 |
AE86..DX,SR5 RH |
1 | ||
| 52062-12010 |
AE86..DX,SR5 LH |
1 | ||
| 53823A - PROTECTOR, FRONT SIDE PANEL, NO.2 | ||||
| 53823-12010 |
AE86 |
2 | ||
| Common parts | ||||
| 65487-12010 | ||||
| 90105-12099 | ||||
| 90119-06233 | ||||
| 90119-06249 | ||||
| 90119-06280 | ||||
| 90119-14004 | ||||
| 90149-60040 | ||||
| 90168-50023 | ||||
| 90179-06105 | ||||
| 90179-06115 | ||||
| 90179-12025 | ||||
| 90183-03001 | ||||
| 90189-06072 | ||||
| 90467-05014 | ||||
| 91656-40616 | ||||
| 91665-40616 | ||||
| 91665-40618 | ||||
