AE86L-ESPXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 2D ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )DX,SR5

Click highlighted areas on diagram

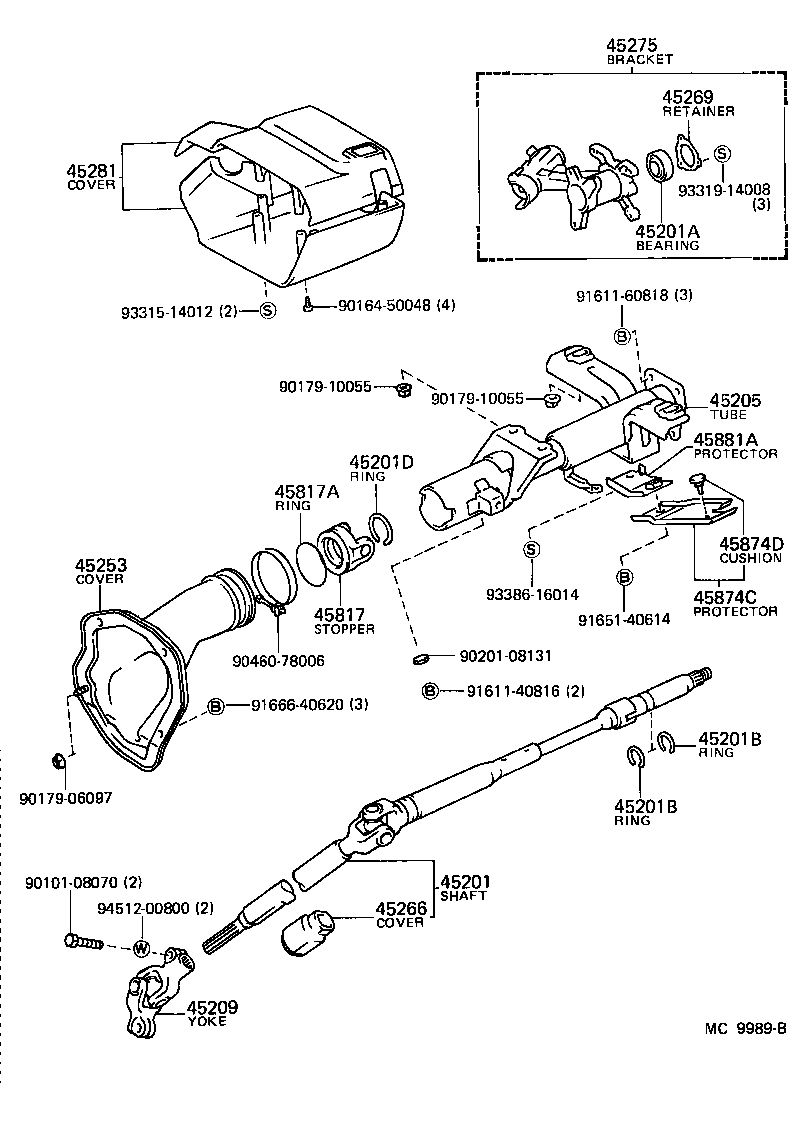

diagram 45201 45201A 45201B 45201B 45201D 45205 45209 45253 45266 45269 45275 45281 45817 45817A 45874C 45874D 45881A 9010108070 9016450048 9017906097 9017910055 9017910055 9020108131 9046078006 9161140816 9161160818 9165140614 9166640620 9331514012 9331914008 9338616014 9451200800
Part # Description Qty Price
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-12260

AE86

 1
45210-12270

AE86

W/POWER STEERING

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

AE86

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

AE86

T=1.35-1.45,T=1.4

 2
90520-17042

AE86

T=1.20,T=1.2

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

AE86

T=1.35-1.45,T=1.4

 2
90520-17042

AE86

T=1.20,T=1.2

 2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300

AE86

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45870-12230

AE86..GTS,SR5

W/TILT STEERING

 1
45870-12230

AE86

W/TILT STEERING

 1
45870-12220

AE86..DX,SR5

 1
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-32020

AE86

W/POWER STEERING

 1
45209-32010

AE86

 1
45253 - COVER, STEERING COLUMN HOLE
45025-12150

AE86

 1
45266 - COVER, STEERING INTERMEDIATE SHAFT DUST
45266-12020

AE86

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-10010

AE86

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-12050

AE86

 1
45280-12052

AE86

 1
45281 - HOUSING, STEERING COLUMN
45286-12938

AE86

W/CRUISE CONTROL & *TIS

 1
45286-12938

AE86..GTS,SR5

W/CRUISE CONTROL & *TIS

 1
45286-1293201

AE86..GTS,SR5

W/*TIS,BLACK,BLACK

 1
45286-12932

AE86

W/*TIS

 1
45286-1293801

AE86..GTS,SR5

W/CRUISE CONTROL & *TIS,BLACK,BLACK

 1
45286-12937

AE86..DX,SR5

W/CRUISE CONTROL

 1
45286-12931

AE86..DX,SR5

 1
45286-12932

AE86..GTS,SR5

W/*TIS

 1
45817 - STOPPER, STEERING SHAFT THRUST
45808-20020

AE86

 1
45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER)
90301-54002

AE86

 1
96711-24056

AE86

 1
45874C - PROTECTOR, STEERING COLUMN, NO.1
45802-12010

AE86..(DX,SR5)..USA

 1
45874D - CUSHION(FOR STEERING COLUMN PROTECTOR)
90541-06008

AE86..(DX,SR5)..USA

 1
45881A - PROTECTOR, STEERING COLUMN, NO.2
45881-12020

AE86..(DX,SR5)..USA

 1
Common parts
90101-08070
90164-50048
90179-06097
90179-10055
90201-08131
90460-78006
91611-40816
91611-60818
91651-40614
91666-40620
93315-14012
93319-14008
93386-16014
94512-00800

(8308-8508) ; (8508- )GTS,SR5

Click highlighted areas on diagram

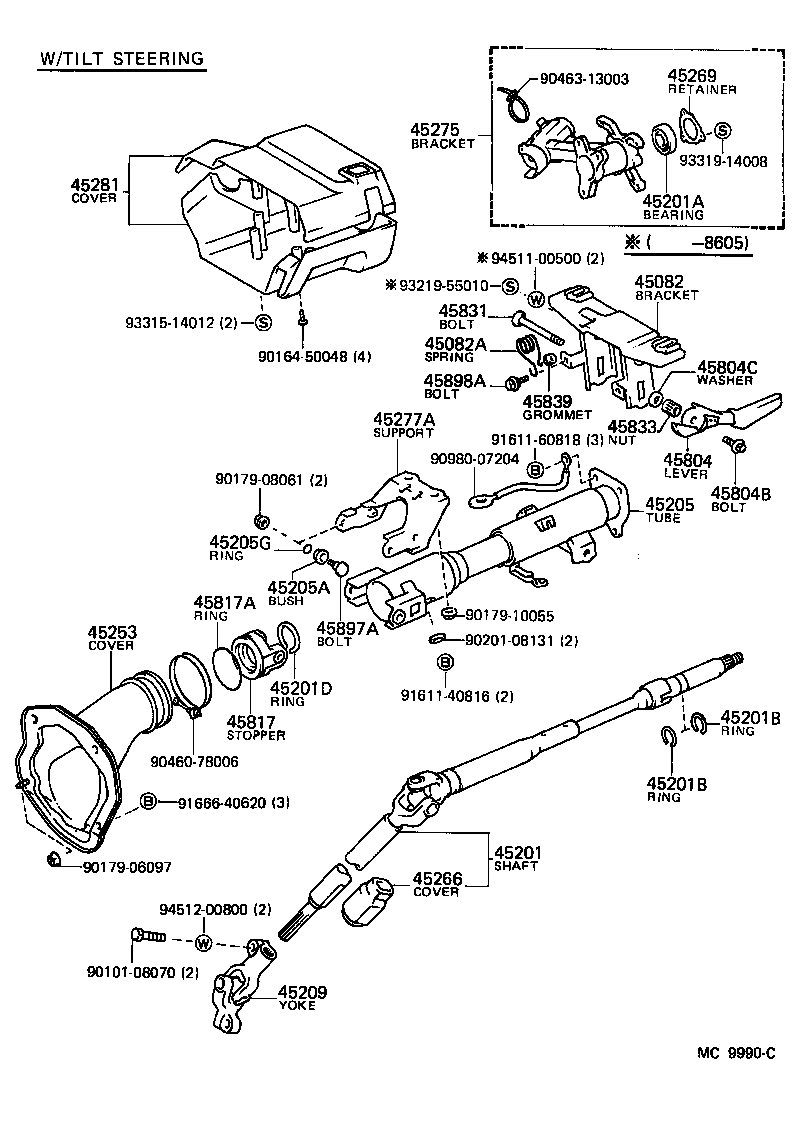

diagram 45082 45082A 45201 45201A 45201B 45201B 45201D 45205 45205A 45205G 45209 45253 45266 45269 45275 45277A 45281 45804 45804B 45804C 45817 45817A 45831 45833 45839 45897A 45898A 9010108070 9016450048 9017906097 9017908061 9017910055 9020108131 9046078006 9046313003 9098007204 9161140816 9161160818 9166640620 9321955010 9331514012 9331914008 9451100500 9451200800
Part # Description Qty Price
45082 - BRACKET SUB-ASSY, BREAK AWAY W/CAPSULE
45082-12021

AE86..GTS,SR5

 1
45082-12020

AE86

 1
45082-12020

AE86..GTS,SR5

 1
45082A - SPRING, TORSION(FOR TILT STEERING RETURN)
90508-29015

AE86

 2
90508-29015

AE86..GTS,SR5

 2
45201 - SHAFT SUB-ASSY, STEERING MAIN
45210-12260

AE86

 1
45210-12270

AE86

W/POWER STEERING

 1
45201A - BEARING(FOR STEERING MAIN SHAFT)
90363-18038

AE86

 1
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

AE86

T=1.35-1.45,T=1.4

 2
90520-17042

AE86

T=1.20,T=1.2

 2
45201B - RING, SHAFT SNAP(FOR STEERING MAIN SHAFT)
90520-17196

AE86

T=1.35-1.45,T=1.4

 2
90520-17042

AE86

T=1.20,T=1.2

 2
45201D - RING(FOR STEERING MAIN SHAFT)
96152-00300

AE86

 1
45205 - TUBE SUB-ASSY, STEERING COLUMN
45870-12230

AE86..GTS,SR5

W/TILT STEERING

 1
45870-12230

AE86

W/TILT STEERING

 1
45870-12220

AE86..DX,SR5

 1
45205A - BUSH(FOR STEERING COLUMN TUBE)
90389-11005

AE86..GTS,SR5

 4
90389-11005

AE86

 4
45205G - RING, O(FOR STEERING COLUMN TUBE)
90301-11005

AE86..GTS,SR5

 2
90301-11005

AE86

 2
45209 - YOKE SUB-ASSY, STEERING SLIDING
45209-32020

AE86

W/POWER STEERING

 1
45209-32010

AE86

 1
45253 - COVER, STEERING COLUMN HOLE
45025-12150

AE86

 1
45266 - COVER, STEERING INTERMEDIATE SHAFT DUST
45266-12020

AE86

 1
45269 - RETAINER, MAIN SHAFT BEARING
45269-10010

AE86

 1
45275 - BRACKET, STEERING COLUMN, UPPER
45280-12050

AE86

 1
45280-12052

AE86

 1
45277A - SUPPORT, TILT STEERING
45277-12020

AE86

 1
45277-12020

AE86..GTS,SR5

 1
45281 - HOUSING, STEERING COLUMN
45286-12938

AE86

W/CRUISE CONTROL & *TIS

 1
45286-12938

AE86..GTS,SR5

W/CRUISE CONTROL & *TIS

 1
45286-1293201

AE86..GTS,SR5

W/*TIS,BLACK,BLACK

 1
45286-12932

AE86

W/*TIS

 1
45286-1293801

AE86..GTS,SR5

W/CRUISE CONTROL & *TIS,BLACK,BLACK

 1
45286-12937

AE86..DX,SR5

W/CRUISE CONTROL

 1
45286-12931

AE86..DX,SR5

 1
45286-12932

AE86..GTS,SR5

W/*TIS

 1
45804 - LEVER SUB-ASSY, STEERING TILT
45804-12020

AE86..GTS,SR5

 1
45804-12020

AE86

 1
45804B - BOLT(FOR STEERING TILT LEVER)
90105-08060

AE86..GTS,SR5

 1
90105-08060

AE86

 1
45804C - WASHER, PLATE(FOR STEERING TILT LEVER)
90201-08029

AE86

 1
90201-08029

AE86..GTS,SR5

 1
45817 - STOPPER, STEERING SHAFT THRUST
45808-20020

AE86

 1
45817A - RING, O(FOR STEERING SHAFT THRUST STOPPER)
90301-54002

AE86

 1
96711-24056

AE86

 1
45831 - BOLT, TILT LEVER LOCK, NO.1
45831-20010

AE86

 1
45831-20010

AE86..GTS,SR5

 1
45833 - NUT, TILT STEERING ADJUSTING, NO.1
45833-20010

AE86..GTS,SR5

 1
45833-20010

AE86

 1
45839 - GROMMET, RETURN SPRING
45839-20010

AE86..GTS,SR5

 2
45839-20010

AE86

 2
45897A - BOLT, TILT STEERING PAWL SET
45897-26010

AE86

 2
45897-26010

AE86..GTS,SR5

 2
45898A - BOLT, RETURN SPRING SET
45898-20020

AE86..GTS,SR5

 2
45898-20020

AE86

 2
Common parts
90101-08070
90164-50048
90179-06097
90179-08061
90179-10055
90201-08131
90460-78006
90463-13003
90980-07204
91611-40816
91611-60818
91666-40620
93219-55010
93315-14012
93319-14008
94511-00500
94512-00800
