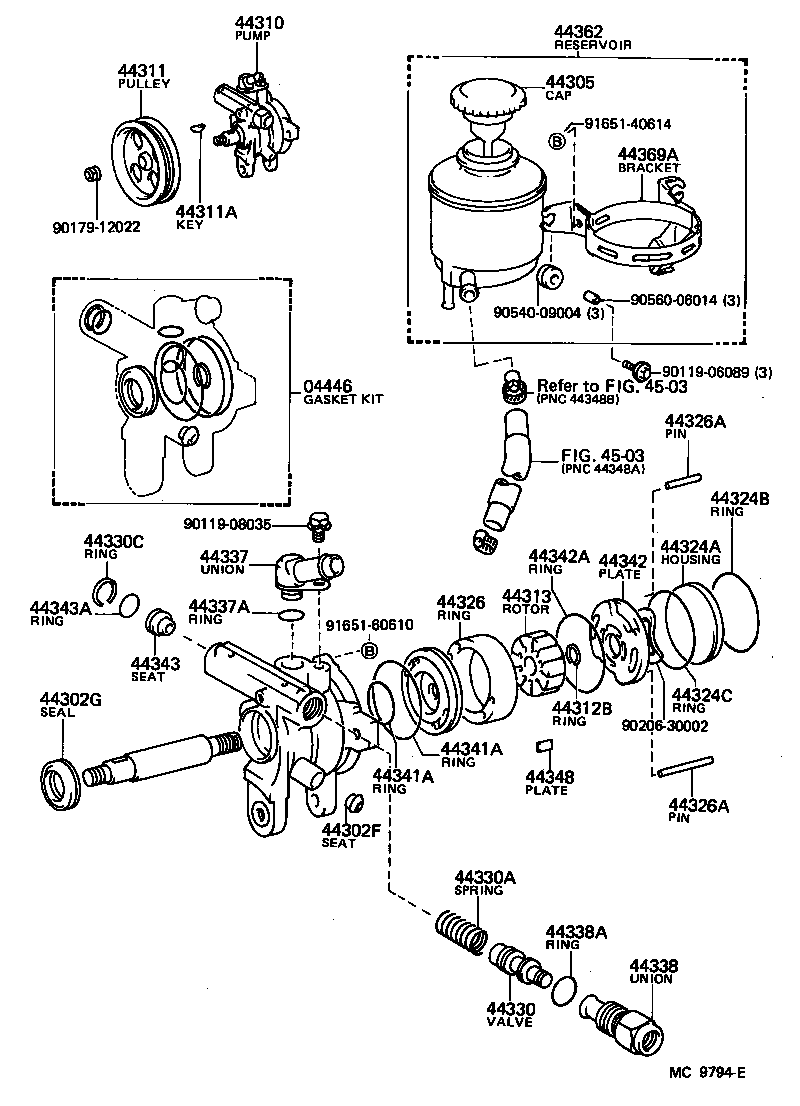

Toyota Corolla cp AE86 VANE PUMP & RESERVOIR (POWER STEERING)

Part #	Description	Period	Qty
04446 - GASKET KIT, POWER STEERING PUMP
04446-12020	AE86	08/1983 - 07/1987	1
44302F - SEAT, UNION(FOR VANE PUMP HOUSING)
90410-05035	AE86..GTS	08/1984 - 07/1987	1
44302G - SEAL, OIL, NO.2(FOR VANE PUMP HOUSING)
90311-18007	AE86	08/1983 - 07/1987	1
44305 - CAP SUB-ASSY, VANE PUMP OIL RESERVOIR
44305-32010	AE86..GTS	08/1984 - 07/1987	1
44310 - PUMP ASSY, VANE
44320-12071	AE86..GTS	08/1984 - 07/1985	1
44320-12072	AE86..GTS	07/1985 - 07/1987	1
44311 - PULLEY, VANE PUMP
44311-12050	AE86..GTS	08/1984 - 07/1987	1
44311A - KEY, VANE PUMP PULLEY
90280-05008	AE86	08/1983 - 07/1987	1
44312B - RING, SNAP, NO.1(FOR VANE PUMP SHAFT)
90520-10003	AE86	08/1983 - 07/1987	1
44313 - ROTOR, VANE PUMP
44313-12040	AE86 MARK 3,MARK 3	08/1983 - 07/1987	1
44313-12020	AE86 MARK 1,MARK 1	08/1983 - 07/1987	1
44313-12010	AE86 NO MARK,NO MARK	08/1983 - 07/1987	1
44313-12050	AE86 MARK 4,MARK 4	08/1983 - 07/1987	1
44313-12030	AE86 MARK 2,MARK 2	08/1983 - 07/1987	1
44324A - HOUSING, PUMP, REAR
44324-12031	AE86	07/1985 - 07/1987	1
44324-12030	AE86	08/1983 - 07/1985	1
44324B - RING, HOLE SNAP(FOR PUMP HOUSING REAR)
90521-62002	AE86	08/1983 - 07/1987	1
44324C - RING, O(FOR PUMP HOUSING REAR)
90301-52001	AE86	08/1983 - 07/1987	1
44326 - RING, CAM(FOR VANE PUMP)
44325-12120	AE86 MARK 1,MARK 1	08/1983 - 07/1987	1
44325-12150	AE86 MARK 4,MARK 4	08/1983 - 07/1987	1
44325-12140	AE86 MARK 3,MARK 3	08/1983 - 07/1987	1
44325-12130	AE86 MARK 2,MARK 2	08/1983 - 07/1987	1
44325-12110	AE86 NO MARK,NO MARK	08/1983 - 07/1987	1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047	AE86 L=28,OD=4.0,L=28	08/1983 - 07/1987	1
90250-04049	AE86 L=43,OD=4.0,L=43	08/1983 - 07/1987	1
44326A - PIN, STRAIGHT(FOR VANE PUMP CAM RING)
90250-04047	AE86 L=28,OD=4.0,L=28	08/1983 - 07/1987	1
90250-04049	AE86 L=43,OD=4.0,L=43	08/1983 - 07/1987	1
44330 - VALVE ASSY, FLOW CONTROL
44330-14030	AE86 MARK C,MARK C	08/1983 - 07/1987	1
44330-14010	AE86 MARK A,MARK A	08/1983 - 07/1987	1
44330-14060	AE86 MARK F,MARK F	08/1983 - 07/1987	1
44330-14020	AE86 MARK B,MARK B	08/1983 - 07/1987	1
44330-14050	AE86 MARK E,MARK E	08/1983 - 07/1987	1
44330-14040	AE86 MARK D,MARK D	08/1983 - 07/1987	1
44330A - SPRING, COMPRESSION(FOR FLOW CONTROL VALVE)
90501-12447	AE86	08/1983 - 07/1985	1
90501-12103	AE86	07/1985 - 07/1987	1
44330C - RING, SNAP(FOR FLOW CONTROL VALVE)
96151-01700	AE86	08/1983 - 07/1987	1
44337 - UNION, POWER STEERING SUCTION PORT
44337-12030	AE86..GTS	08/1984 - 07/1987	1
44337A - RING, O(FOR POWER STEERING SUCTION PORT)
90301-12003	AE86..GTS	08/1984 - 07/1987	1
44338 - UNION, PRESSURE PORT
44308-12042	AE86	07/1985 - 07/1987	1
44308-12041	AE86	08/1984 - 07/1985	1
44308-12040	AE86	08/1983 - 08/1984	1
44338A - RING, O(FOR PRESSURE PORT UNION)
90301-19003	AE86 ID=19.5,OD=22.5	08/1983 - 07/1987	1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-52001	AE86 OUTER	08/1983 - 07/1987	1
90301-25001	AE86 INNER	08/1983 - 07/1987	1
44341A - RING, O(FOR VANE PUMP FRONT SIDE PLATE)
90301-52001	AE86 OUTER	08/1983 - 07/1987	1
90301-25001	AE86 INNER	08/1983 - 07/1987	1
44342 - PLATE, VANE PUMP SIDE, REAR
44342-12020	AE86	08/1983 - 07/1985	1
44342-12021	AE86	07/1985 - 07/1987	1
44342A - RING, O(FOR VANE PUMP SIDE PLATE REAR)
90301-52001	AE86	08/1983 - 07/1987	1
44343 - SEAT, FLOW CONTROL SPRING
44343-12010	AE86	08/1983 - 07/1987	1
44343A - RING, O(FOR FLOW CONTROL SPRING SEAT)
96711-19014	AE86	08/1983 - 07/1987	1
44348 - PLATE, VANE PUMP
44345-12020	AE86 L=14.995,L=14.994-14.996,ROTOR MARK 1	08/1983 - 07/1987	10
44345-12040	AE86 L=14.991,L=14.990-14.992,ROTOR MARK 3	08/1983 - 07/1987	10
44345-12010	AE86 L=14.997,L=14.996-14.998,ROTOR NO MARK	08/1983 - 07/1987	10
44345-12030	AE86 L=14.993,L=14.992-14.994,ROTOR MARK 2	08/1983 - 07/1987	10
44345-12050	AE86 L=14.989,L=14.988-14.990,ROTOR MARK 4	08/1983 - 07/1987	10
44362 - RESERVOIR, OIL(FOR VANE PUMP)
44360-12010	AE86..GTS	08/1984 - 07/1987	1
44369A - BRACKET, OIL RESERVOIR, NO.1
44369-12010	AE86..GTS	08/1984 - 07/1987	1
Common parts
90119-06089
90119-08035
90179-12022
90206-30002
90540-09004
90560-06014
91651-40614
91651-60610
