AE86L-ESMDCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
2D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )4AC

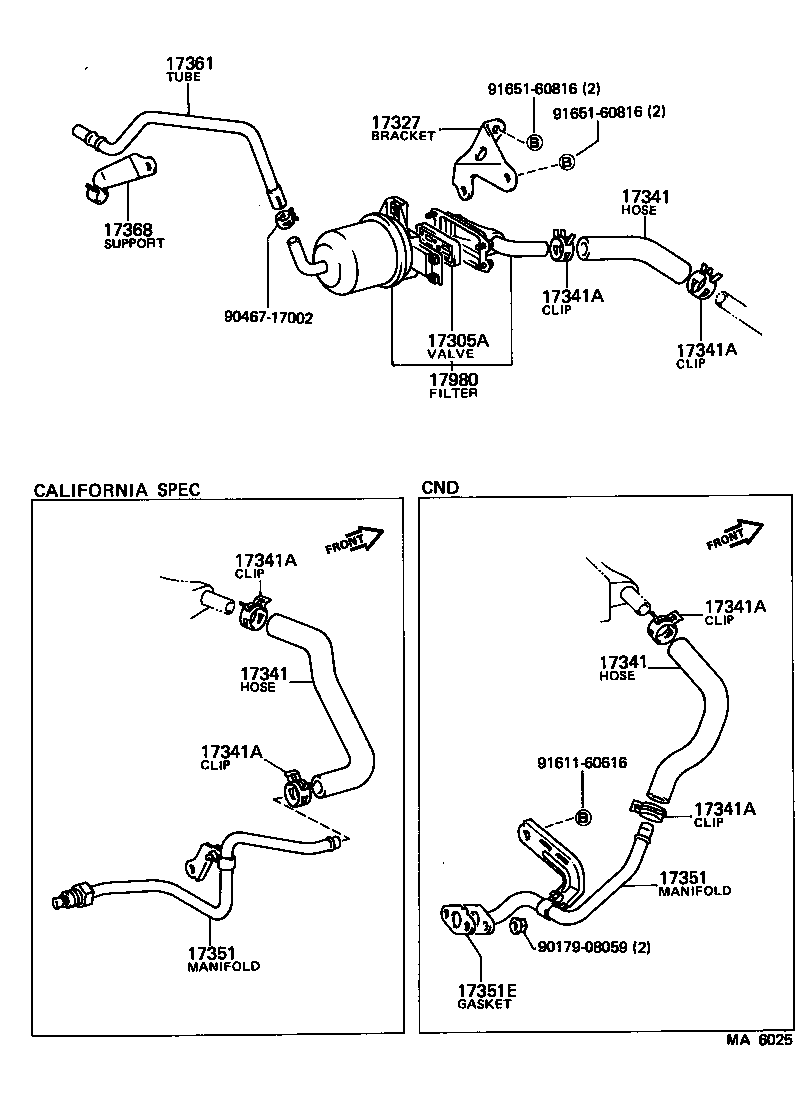

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 17305A - VALVE SUB-ASSY, REED | ||||
| 17305-15010 |
4AC..AE86..USA |
1 | ||
| 17327 - BRACKET, REED VALVE | ||||
| 17327-16011 |
4AC..AE86..USA |
1 | ||
| 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-15050 |
4AC..AE86..USA CALIFORNIA SPEC |
1 | ||
| 17341-16011 |
4AC..AE86..USA |
1 | ||
| 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-15050 |
4AC..AE86..USA CALIFORNIA SPEC |
1 | ||
| 17341-16011 |
4AC..AE86..USA |
1 | ||
| 17341 - HOSE, NO.1(FOR AIR INJECTION SYSTEM) | ||||
| 17341-15050 |
4AC..AE86..USA CALIFORNIA SPEC |
1 | ||
| 17341-16011 |
4AC..AE86..USA |
1 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-28003 |
4AC..AE86 |
2 | ||
| 90467-23003 |
4AC..AE86..USA CALIFORNIA SPEC |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-28003 |
4AC..AE86 |
2 | ||
| 90467-23003 |
4AC..AE86..USA CALIFORNIA SPEC |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-28003 |
4AC..AE86 |
2 | ||
| 90467-23003 |
4AC..AE86..USA CALIFORNIA SPEC |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-28003 |
4AC..AE86 |
2 | ||
| 90467-23003 |
4AC..AE86..USA CALIFORNIA SPEC |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-28003 |
4AC..AE86 |
2 | ||
| 90467-23003 |
4AC..AE86..USA CALIFORNIA SPEC |
2 | ||
| 17341A - CLAMP OR CLIP, NO.1(FOR AIR INJECTION SYSTEM HOSE, NO.1 | ||||
| 90467-23003 |
4AC..AE86..USA CALIFORNIA SPEC |
2 | ||
| 90467-28003 |
4AC..AE86 |
2 | ||
| 17351 - MANIFOLD, AIR INJECTION | ||||
| 17306-15030 |
4AC..AE86..USA CALIFORNIA SPEC |
1 | ||
| 17351 - MANIFOLD, AIR INJECTION | ||||
| 17306-15030 |
4AC..AE86..USA CALIFORNIA SPEC |
1 | ||
| 17361 - TUBE, AIR | ||||
| 17361-16010 |
4AC..AE86..USA |
1 | ||
| 17368 - SUPPORT, AIR TUBE | ||||
| 17368-16010 |
4AC..AE86..USA |
1 | ||
| 17980 - FILTER ASSY, AIR SUCTION | ||||
| 17980-16011 |
4AC..AE86..USA |
1 | ||
| Common parts | ||||
| 90179-08059 | ||||
| 90467-17002 | ||||
| 91611-60616 | ||||
| 91651-60816 | ||||
