AE86L-ECPXCK (1983)
Toyota Corolla Cp
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

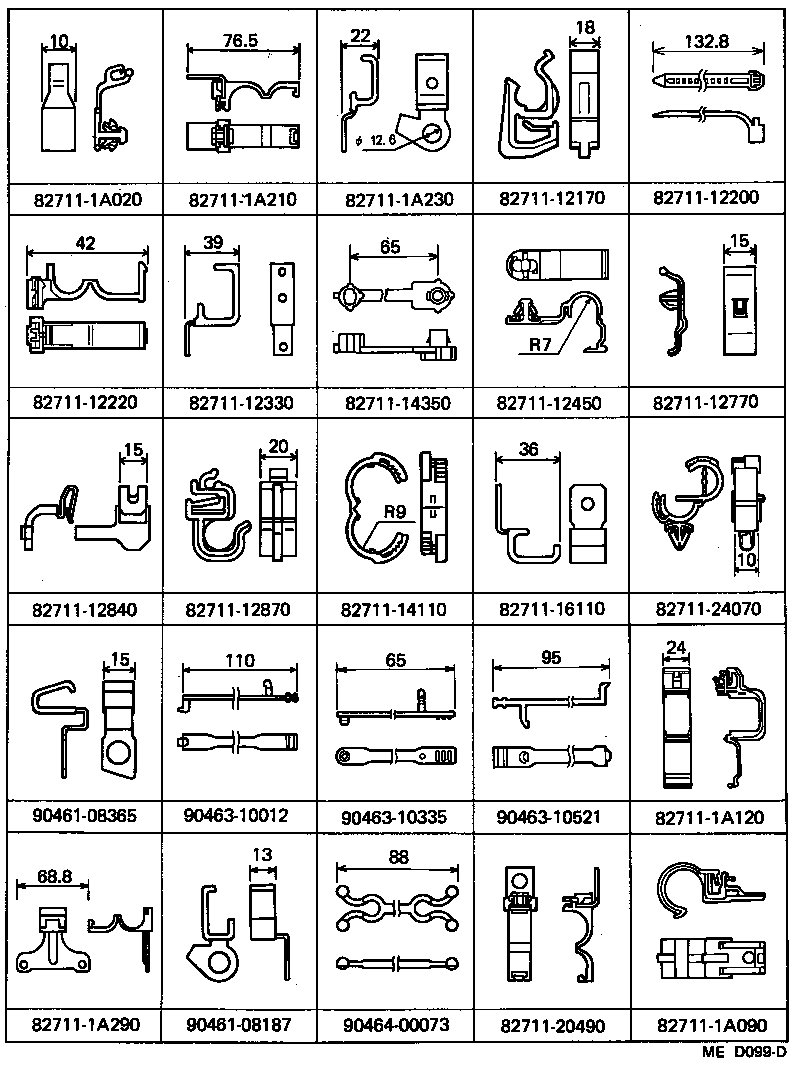

| Common parts | ||||
| 82711-12170 | ||||
| 82711-12200 | ||||
| 82711-12220 | ||||
| 82711-12330 | ||||
| 82711-12450 | ||||
| 82711-12770 | ||||
| 82711-12840 | ||||
| 82711-12870 | ||||
| 82711-14110 | ||||
| 82711-14350 | ||||
| 82711-16110 | ||||
| 82711-1A020 | ||||
| 82711-1A090 | ||||
| 82711-1A120 | ||||
| 82711-1A210 | ||||
| 82711-1A230 | ||||
| 82711-1A290 | ||||
| 82711-20490 | ||||
| 82711-24070 | ||||
| 90461-08187 | ||||
| 90461-08365 | ||||
| 90463-10012 | ||||
| 90463-10335 | ||||
| 90463-10521 | ||||
| 90464-00073 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

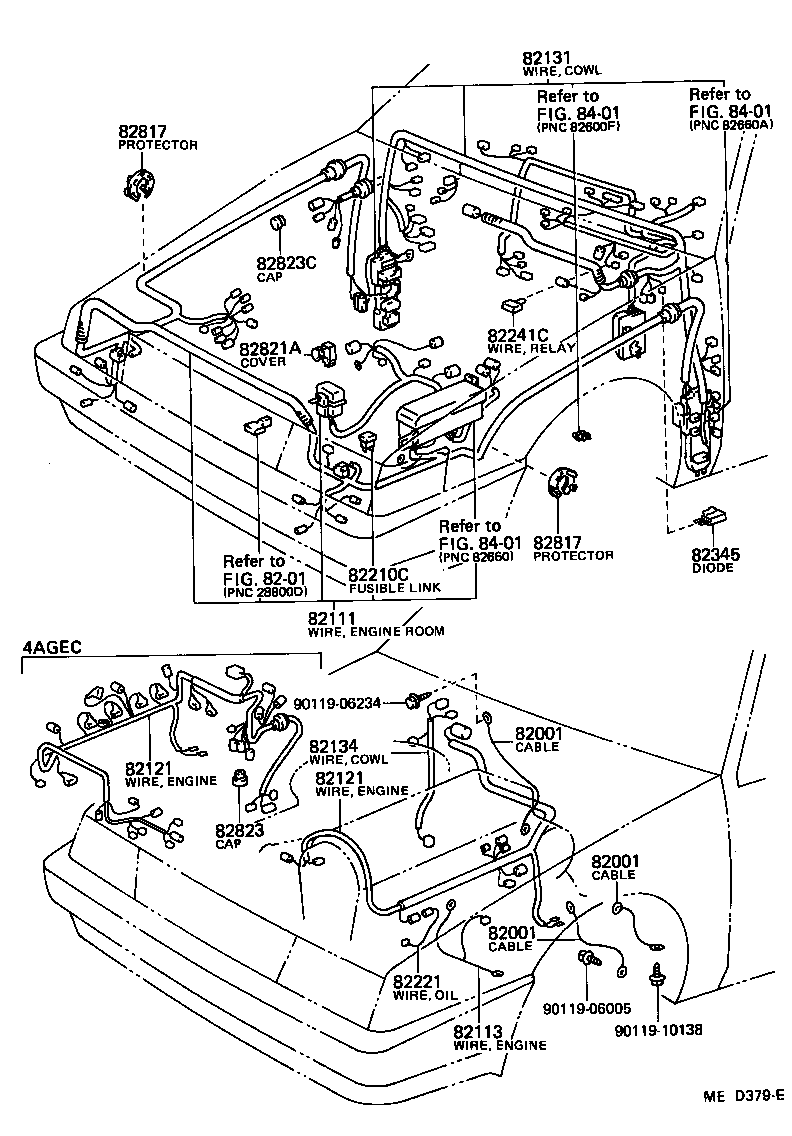

| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07226 |
AE86 CLACH-FLOOR |
1 | ||
| 90980-07200 |
AE86 ENGINE-COWL |
1 | ||
| 90980-07233 |
AE86..DX,SR5 ENGINE-COWL |
1 | ||
| 90980-07148 |
AE86 MISSION-MEMBER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07226 |
AE86 CLACH-FLOOR |
1 | ||
| 90980-07200 |
AE86 ENGINE-COWL |
1 | ||
| 90980-07233 |
AE86..DX,SR5 ENGINE-COWL |
1 | ||
| 90980-07148 |
AE86 MISSION-MEMBER |
1 | ||
| 82001 - CABLE, BOND, NO.1 | ||||
| 90980-07226 |
AE86 CLACH-FLOOR |
1 | ||
| 90980-07200 |
AE86 ENGINE-COWL |
1 | ||
| 90980-07233 |
AE86..DX,SR5 ENGINE-COWL |
1 | ||
| 90980-07148 |
AE86 MISSION-MEMBER |
1 | ||
| 82111 - WIRE, ENGINE ROOM MAIN | ||||
| 82111-12500 |
AE86..CND |
1 | ||
| 82111-1A040 |
AE86..SR5..CND |
1 | ||
| 82111-12501 |
AE86..SR5..CND |
1 | ||
| 82111-1A041 |
AE86..SR5..CND |
1 | ||
| 82113 - WIRE, ENGINE ROOM, NO.3 | ||||
| 82113-12090 |
AE86 |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-12231 |
AE86..4FC |
1 | ||
| 82121-12230 |
AE86..4FC |
1 | ||
| 82121-12820 |
AE86..4FC |
1 | ||
| 82121 - WIRE, ENGINE | ||||
| 82121-12231 |
AE86..4FC |
1 | ||
| 82121-12230 |
AE86..4FC |
1 | ||
| 82121-12820 |
AE86..4FC |
1 | ||
| 82131 - WIRE, COWL | ||||
| 82131-12721 |
AE86..CND |
1 | ||
| 82131-12720 |
AE86..CND |
1 | ||
| 82131-12722 |
AE86..SR5..CND |
1 | ||
| 82131-12723 |
AE86..SR5..CND |
1 | ||
| 82131-1A392 |
AE86..SR5..CND |
1 | ||
| 82131-1A391 |
AE86..SR5..CND |
1 | ||
| 82131-12724 |
AE86..SR5..CND |
1 | ||
| 82131-1A390 |
AE86..SR5..CND |
1 | ||
| 82134 - WIRE, COWL, NO.4 | ||||
| 82134-12060 |
AE86 |
1 | ||
| 82210C - FUSIBLE LINK | ||||
| 90982-08188 |
AE86 30A,TERM.:FEMALE,PNK,30A,RTR |
1 | ||
| 90982-08188 |
AE86..DX,SR5 30A,TERM.:FEMALE,PNK,30A,AM2 |
1 | ||
| 90982-08190 |
AE86..DX,SR5 60A,TERM.:FEMALE,YEL,60A |
1 | ||
| 82221 - WIRE, OIL PRESSURE SWITCH | ||||
| 82221-16030 |
AE86..DX,SR5 |
1 | ||
| 82345 - DIODE | ||||
| 82345-12020 |
AE86..DX,SR5 2 POLE CONNECTOR,BROWN |
1 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32010 |
AE86 |
2 | ||
| 82817 - PROTECTOR, WIRING HARNESS, NO.1 | ||||
| 82817-32010 |
AE86 |
2 | ||
| 82821A - COVER, CONNECTOR | ||||
| 82821-12210 |
AE86..DX,SR5 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06234 | ||||
| 90119-10138 | ||||
| Linked diagrams | ||||
| 8201 | ||||
| 8401 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

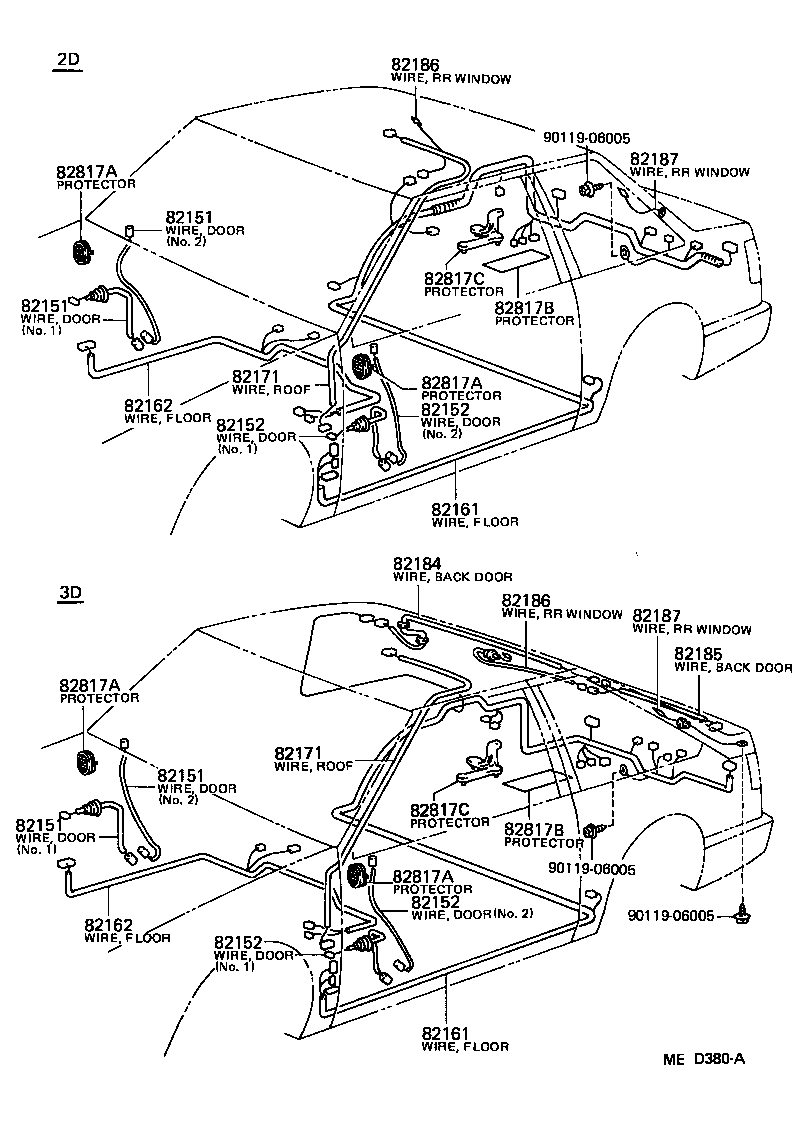

| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12040 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12220 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12041 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12070 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12210 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12040 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12220 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12041 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12070 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12210 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12040 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12220 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12041 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12070 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12210 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151 - WIRE, FRONT DOOR, RH | ||||
| 82151-12040 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12220 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12041 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12070 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12210 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-12070 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12220 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12210 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12041 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12040 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-12070 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12220 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12210 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12041 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12040 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-12070 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12220 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12210 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12041 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12040 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82152 - WIRE, FRONT DOOR, LH | ||||
| 82151-12070 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12220 |
AE86..GTS,SR5 NO.2 |
1 | ||
| 82151-12210 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12041 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82151-12040 |
AE86..GTS,SR5 NO.1 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-12260 |
AE86..3D..SR5 |
1 | ||
| 82161-12810 |
AE86..3D..SR5 |
1 | ||
| 82161 - WIRE, FLOOR | ||||
| 82161-12260 |
AE86..3D..SR5 |
1 | ||
| 82161-12810 |
AE86..3D..SR5 |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12260 |
AE86..4FC |
1 | ||
| 82162 - WIRE, FLOOR, NO.2 | ||||
| 82162-12260 |
AE86..4FC |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12130 |
AE86 W/SUN ROOF |
1 | ||
| 82171-12120 |
AE86 |
1 | ||
| 82171 - WIRE, ROOF, NO.1 | ||||
| 82171-12130 |
AE86 W/SUN ROOF |
1 | ||
| 82171-12120 |
AE86 |
1 | ||
| 82184 - WIRE, BACK DOOR, NO.1 | ||||
| 82184-12050 |
AE86..3D |
1 | ||
| 82184-12060 |
AE86..3D W/RR WIPER |
1 | ||
| 82184-12180 |
AE86..3D |
1 | ||
| 82185 - WIRE, BACK DOOR, NO.2 | ||||
| 82185-12230 |
AE86..3D |
1 | ||
| 82185-12050 |
AE86..3D |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12030 |
AE86..3D |
1 | ||
| 82186-12100 |
AE86..3D |
1 | ||
| 82186 - WIRE, REAR WINDOW, NO.1 | ||||
| 82186-12030 |
AE86..3D |
1 | ||
| 82186-12100 |
AE86..3D |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12110 |
AE86..3D |
1 | ||
| 82187-12040 |
AE86..3D |
1 | ||
| 82187 - WIRE, REAR WINDOW, NO.2 | ||||
| 82187-12110 |
AE86..3D |
1 | ||
| 82187-12040 |
AE86..3D |
1 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12630 |
AE86..GTS,SR5 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12630 |
AE86..GTS,SR5 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12630 |
AE86..GTS,SR5 |
2 | ||
| 82817A - PROTECTOR, WIRING HARNESS, NO.2 | ||||
| 82817-12630 |
AE86..GTS,SR5 |
2 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE86 |
1 | ||
| 82817B - PROTECTOR, WIRING HARNESS, NO.3 | ||||
| 82817-16100 |
AE86 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12600 |
AE86 |
1 | ||
| 82817C - PROTECTOR, WIRING HARNESS, NO.4 | ||||
| 82817-12600 |
AE86 |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|

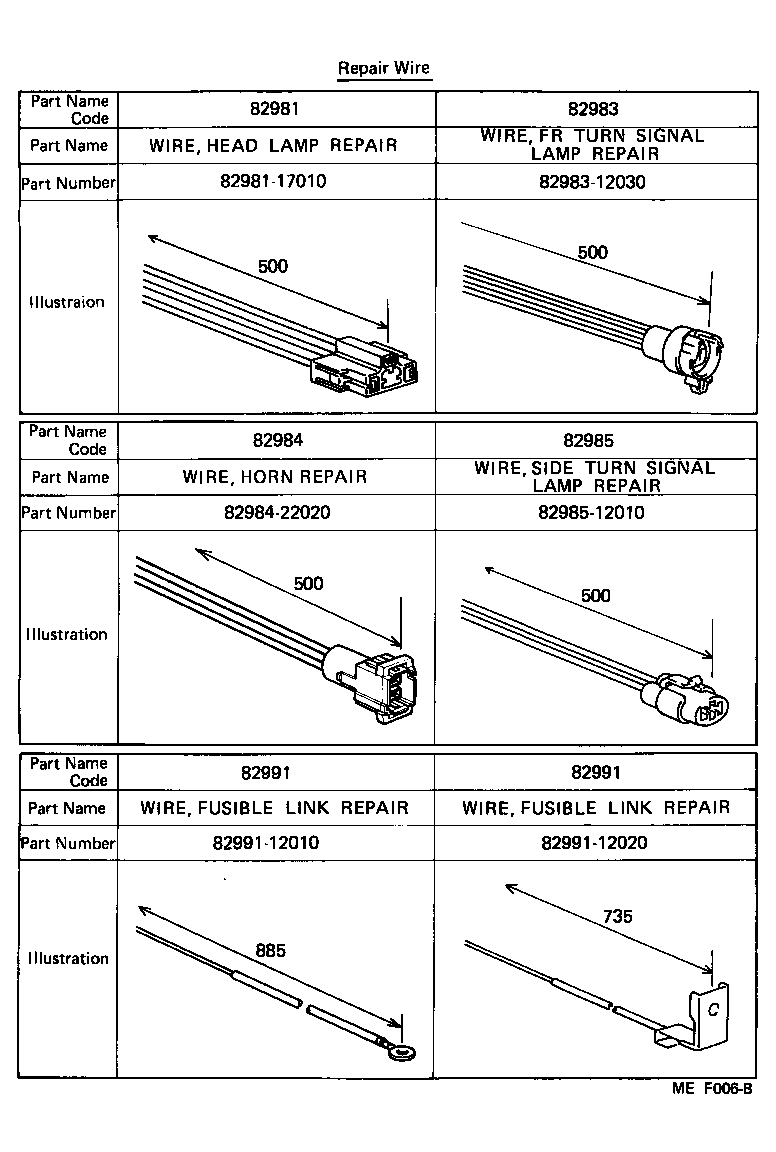

| 82981 - WIRE, HEADLAMP REPAIR | ||||
| 82981-17010 |
AE86 |
1 | ||
| 82983 - WIRE, FRONT TURN SIGNAL LAMP REPAIR | ||||
| 82983-12030 |
AE86 |
1 | ||
| 82984 - WIRE, HORN REPAIR | ||||
| 82984-22020 |
AE86 |
1 | ||
| 82985 - WIRE, SIDE TURN SIGNAL LAMP REPAIR | ||||
| 82985-12010 |
AE86 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12020 |
AE86..DX,SR5 |
1 | ||
| 82991 - WIRE, FUSIBLE LINK REPAIR | ||||
| 82991-12020 |
AE86..DX,SR5 |
1 | ||
| Common parts | ||||
| 82981-17010 | ||||
| 82983-12030 | ||||
| 82984-22020 | ||||
| 82985-12010 | ||||
| 82991-12010 | ||||
| 82991-12020 | ||||
