AE86L-ECPXCK (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D ATM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

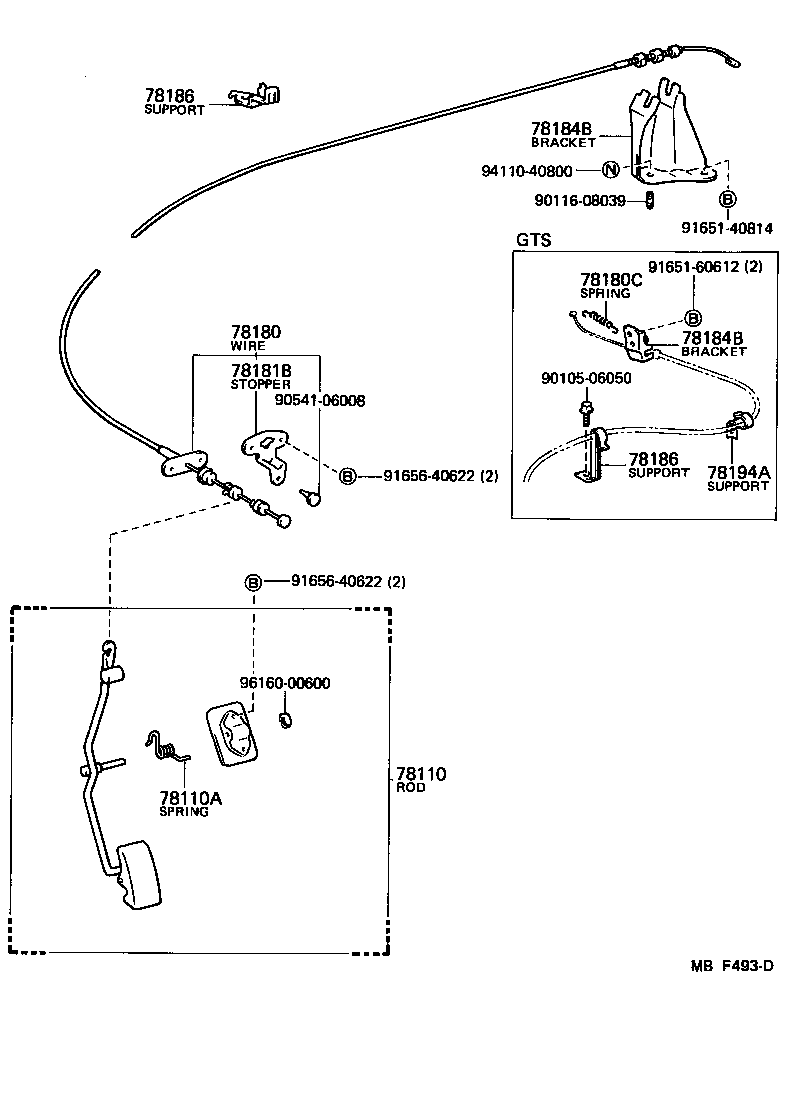

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78010-12120 |
AE86 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18398 |
AE86 |
1 | ||
| 90508-18055 |
AE86 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12400 |
AE86..DX,SR5 |
1 | ||
| 78180-12710 |
AE86..DX,SR5 |
1 | ||
| 78180-12430 |
AE86 W/AUTO DRIVE |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-12090 |
AE86 |
1 | ||
| 78181-12090 |
AE86 W/AUTO DRIVE |
1 | ||
| 78181-12051 |
AE86..DX,SR5 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12140 |
AE86..DX,SR5 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12140 |
AE86..DX,SR5 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-12140 |
AE86..DX,SR5 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-12140 |
AE86..DX,SR5 |
1 | ||
| Common parts | ||||
| 90105-06050 | ||||
| 90116-08039 | ||||
| 90541-06008 | ||||
| 91651-40814 | ||||
| 91651-60612 | ||||
| 91656-40622 | ||||
| 94110-40800 | ||||
| 96160-00600 | ||||
(8308- )

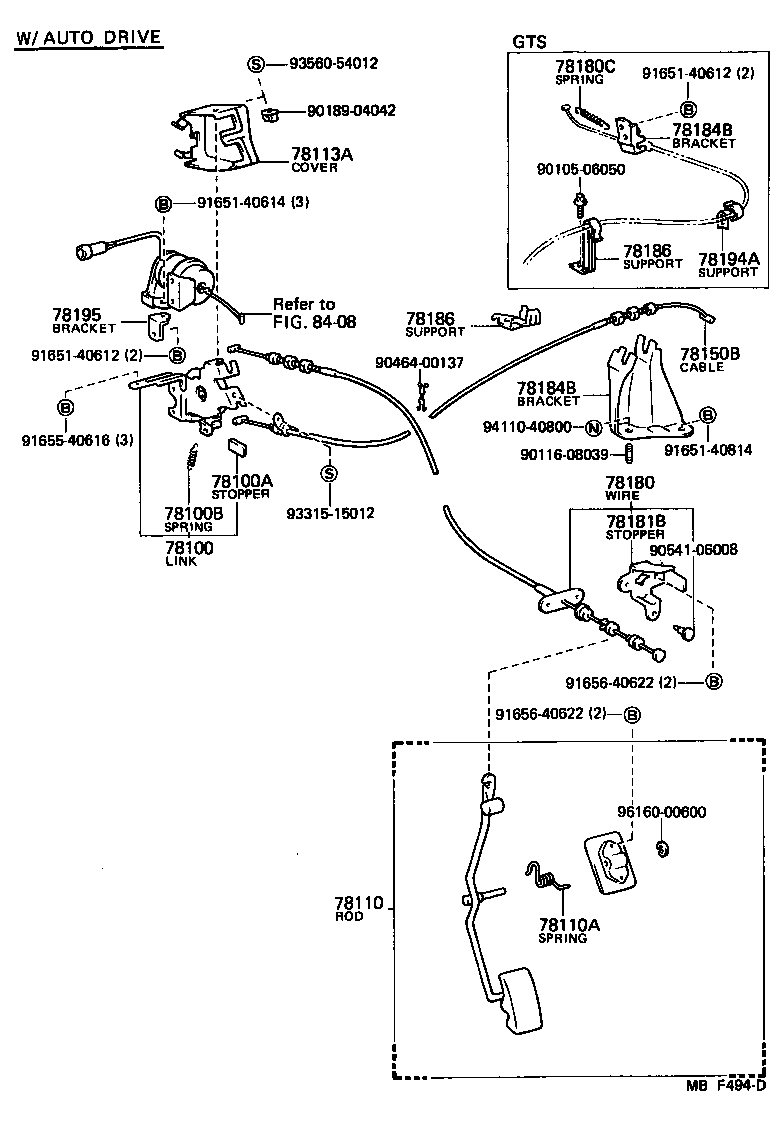

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 78100 - LINK ASSY, ACCELERATOR | ||||
| 78100-12040 |
AE86..DX,SR5 |
1 | ||
| 78100-12071 |
AE86 |
1 | ||
| 78100A - STOPPER, ACCELERATOR LINK | ||||
| 78118-12020 |
AE86 |
1 | ||
| 78118-12010 |
AE86 |
1 | ||
| 78100B - SPRING (FOR ACCELERATOR LINK) | ||||
| 90506-08019 |
AE86 |
1 | ||
| 78110 - ROD ASSY, ACCELERATOR PEDAL | ||||
| 78010-12120 |
AE86 |
1 | ||
| 78110A - SPRING (FOR ACCELERATOR PEDAL ROD) | ||||
| 90508-18398 |
AE86 |
1 | ||
| 90508-18055 |
AE86 |
1 | ||
| 78113A - COVER, AUTO DRIVE ACCELERATOR LINK | ||||
| 78113-12100 |
AE86 |
1 | ||
| 78113-12090 |
AE86..DX,SR5 |
1 | ||
| 78150B - CABLE ASSY, ACCELERATOR AUTO DRIVE | ||||
| 78150-12010 |
AE86..DX,SR5 |
1 | ||
| 78180 - WIRE ASSY, ACCELERATOR | ||||
| 78180-12400 |
AE86..DX,SR5 |
1 | ||
| 78180-12710 |
AE86..DX,SR5 |
1 | ||
| 78180-12430 |
AE86 W/AUTO DRIVE |
1 | ||
| 78181B - STOPPER, ACCELERATOR IDLE ADJUSTING | ||||
| 78181-12090 |
AE86 |
1 | ||
| 78181-12090 |
AE86 W/AUTO DRIVE |
1 | ||
| 78181-12051 |
AE86..DX,SR5 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12140 |
AE86..DX,SR5 |
1 | ||
| 78184B - BRACKET, ACCELERATOR CONTROL CABLE | ||||
| 78184-12140 |
AE86..DX,SR5 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-12140 |
AE86..DX,SR5 |
1 | ||
| 78186 - SUPPORT, ACCELERATOR CONTROL CABLE, NO.1 | ||||
| 78186-12140 |
AE86..DX,SR5 |
1 | ||
| 78195 - BRACKET, ACCELERATOR LINK | ||||
| 78195-12050 |
AE86 |
1 | ||
| 78195-12051 |
AE86 |
1 | ||
| Common parts | ||||
| 90105-06050 | ||||
| 90116-08039 | ||||
| 90189-04042 | ||||
| 90464-00137 | ||||
| 90541-06008 | ||||
| 91651-40612 | ||||
| 91651-40614 | ||||
| 91651-40814 | ||||
| 91655-40616 | ||||
| 91656-40622 | ||||
| 93315-15012 | ||||
| 93560-54012 | ||||
| 94110-40800 | ||||
| 96160-00600 | ||||
| Linked diagrams | ||||
| 8408 | ||||
