AE86L-ECPXCK (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

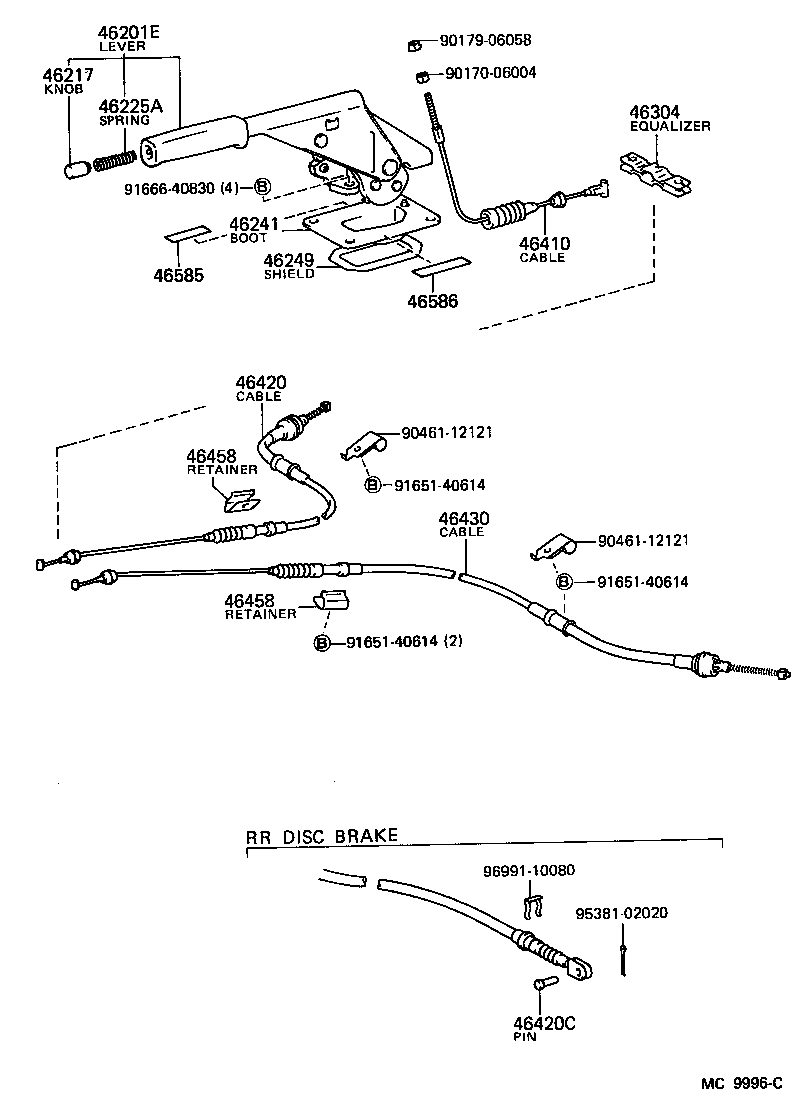

Click highlighted areas on diagram

diagram 46201E 46217 46225A 46241 46249 46304 46410 46420 46420C 46430 46458 46458 46585 46586 9017006004 9017906058 9046112121 9046112121 9165140614 9165140614 9165140614 9166640830 9538102020 9699110080
Part # Description Qty Price
46201E - LEVER SUB-ASSY, PARKING BRAKE
46201-1411001

AE86..DX,SR5

BLACK,BLACK

 1
46217 - KNOB, PARKING BRAKE RELEASE ROD
46217-1002001

AE86

BLACK,BLACK

 1
46225A - SPRING, COMPRESSION(FOR PARKING BRAKE PAWL ROD)
90501-10745

AE86

 1
46241 - BOOT, PARKING BRAKE LEVER
46241-24010

AE86..DX,SR5

 1
46249 - SHIELD, PARKING BRAKE HOLE
46249-24010

AE86

 1
46304 - EQUALIZER SUB-ASSY, PARKING BRAKE
46341-16020

AE86

 1
46410 - CABLE ASSY, PARKING BRAKE, NO.1
46410-12120

AE86..DX,SR5

 1
46420 - CABLE ASSY, PARKING BRAKE, NO.2
46420-12280

AE86..DX,SR5

 1
46430 - CABLE ASSY, PARKING BRAKE, NO.3
46430-12180

AE86..DX,SR5

 1
46458 - RETAINER, CABLE
46458-20020

AE86

 2
46458 - RETAINER, CABLE
46458-20020

AE86

 2
Common parts
90170-06004
90179-06058
90461-12121
91651-40614
91666-40830
95381-02020
96991-10080
