AE86L-ECPXCK (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4AC..4FC

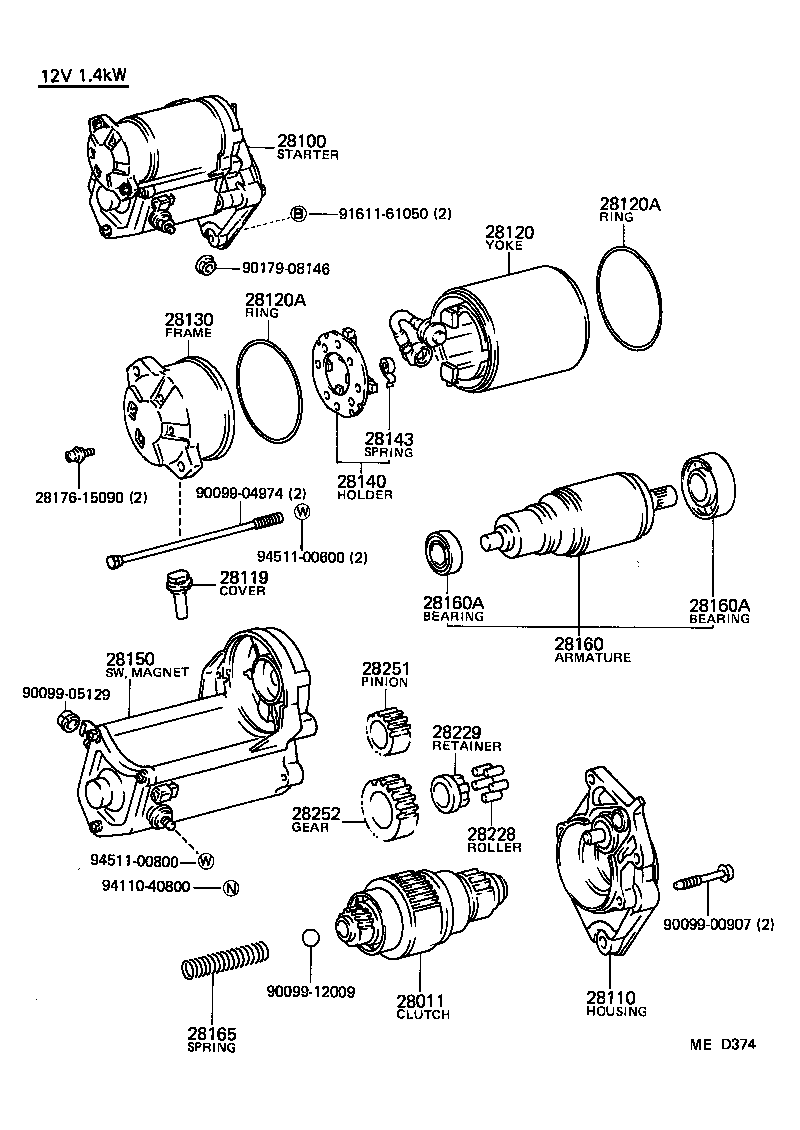

Click highlighted areas on diagram

diagram 28011 28100 28110 28119 28120 28120A 28120A 28130 28140 28143 28150 28160 28160A 28160A 28165 2817615090 28228 28229 28251 28252 9009900907 9009904974 9009905129 9009912009 9017908146 9161161050 9411040800 9451100600 9451100800
Part # Description Qty Price
28011 - CLUTCH SUB-ASSY, STARTER
28011-26042

4A#..AE86

12V 1.0KW,1.4KW

 1
28100 - STARTER ASSY
28100-15090

4AC..AE86..4FC

12V 1.4KW

 1
28110 - HOUSING ASSY, STARTER DRIVE
28110-15090

4AC..AE86..4FC

12V 1.4KW

 1
28119 - COVER, STARTER END FRAME
28199-15090

4AC..AE86..4FC

12V 1.4KW

 1
28120 - YOKE ASSY, STARTER
28120-15090

4AC..AE86..4FC

12V 1.4KW

 1
28120A - RING, O(FOR STARTER YOKE)
90099-14064

4AC..AE86..4FC

12V 1.4KW

 2
28120A - RING, O(FOR STARTER YOKE)
90099-14064

4AC..AE86..4FC

12V 1.4KW

 2
28130 - FRAME ASSY, STARTER COMMUTATOR END
28130-15090

4AC..AE86..4FC

12V 1.4KW

 1
28140 - HOLDER ASSY, STARTER BRUSH
28140-15090

4AC..AE86..4FC

12V 1.4KW

 1
28143 - SPRING, STARTER BRUSH
90099-17112

4A#..AE86

12V 1.0KW,1.4KW

 4
28150 - SWITCH ASSY, MAGNET STARTER
28150-15090

4AC..AE86..4FC

12V 1.4KW

 1
28160 - ARMATURE ASSY, STARTER
28160-15090

4AC..AE86..4FC

12V 1.4KW

 1
28160A - BEARING, STARTER ARMATURE
90099-10144

4AC..AE86..4FC

12V 1.4KW,SMALL TYPE

 1
90099-10143

4AC..AE86..4FC

12V 1.4KW,LARGE TYPE

 1
28160A - BEARING, STARTER ARMATURE
90099-10144

4AC..AE86..4FC

12V 1.4KW,SMALL TYPE

 1
90099-10143

4AC..AE86..4FC

12V 1.4KW,LARGE TYPE

 1
28165 - SPRING, STARTER MAGNET SWITCH RETURN
28165-26040

4A#..AE86

12V 1.0KW,1.4KW

 1
28228 - ROLLER, STARTER IDLE GEAR CLUTCH
28228-26040

4A#..AE86

12V 1.0KW,1.4KW

 5
28229 - RETAINER, STARTER IDLE GEAR
28229-26040

4A#..AE86

12V 1.0KW,1.4KW

 1
28251 - PINION, STARTER DRIVE
28251-15090

4AC..AE86..4FC

12V 1.4KW

 1
28252 - GEAR, STARTER IDLE
28254-45020

4A#..AE86

12V 1.0KW,1.4KW

 1
Common parts
28176-15090
90099-00907
90099-04974
90099-05129
90099-12009
90179-08146
91611-61050
94110-40800
94511-00600
94511-00800
