AE86L-ECPXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D ATM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )4FC

Click highlighted areas on diagram

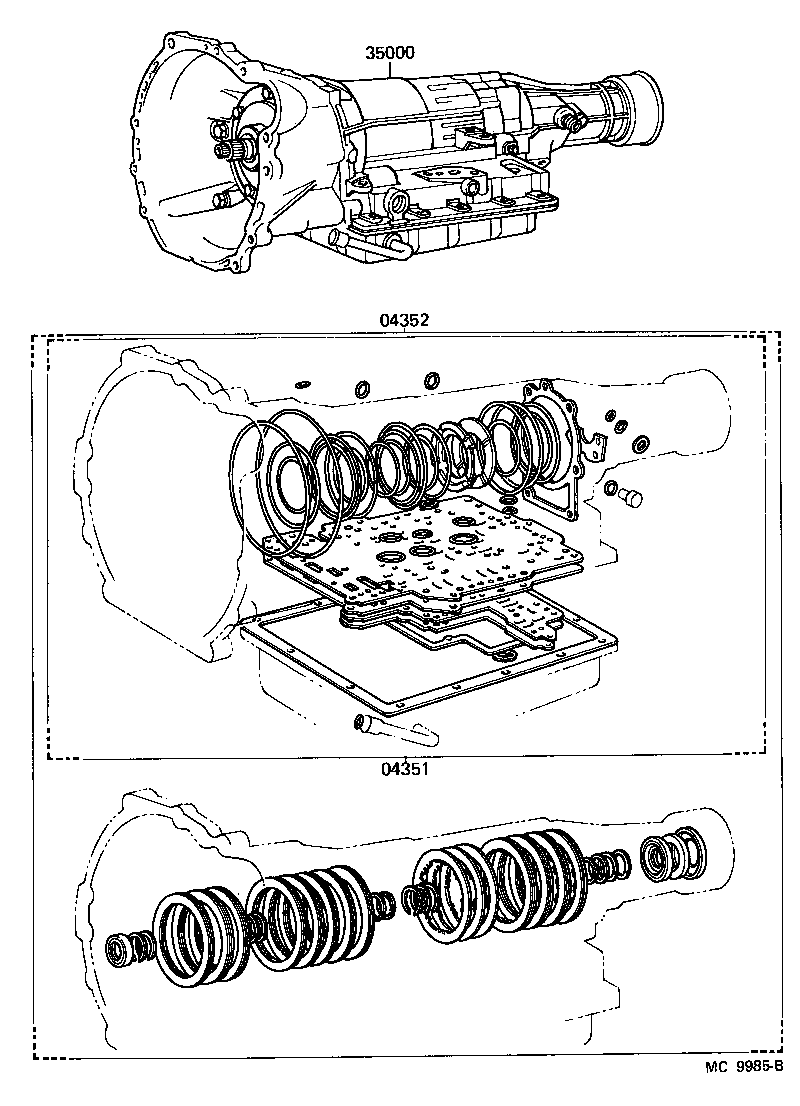

diagram 04351 04352 35000
Part # Description Qty Price
04351 - GASKET KIT, AUTOMATIC TRANSMISSION OVERHAUL
04351-14014

AE86..4FC

 1
04351-14015

AE86..4FC

 1
04351-14030

AE86..4FC

 1
04352 - KIT, AUTOMATIC TRANSMISSION OVERHAUL
04352-12100

AE86..4FC

 1
04352-12030

AE86..4FC

 1
04352-12031

AE86..4FC

 1
35000 - TRANSMISSION ASSY, AUTOMATIC
35000-12730

AE86..4FC

 1
