AE86L-ECMXCK (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Aug 1984
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

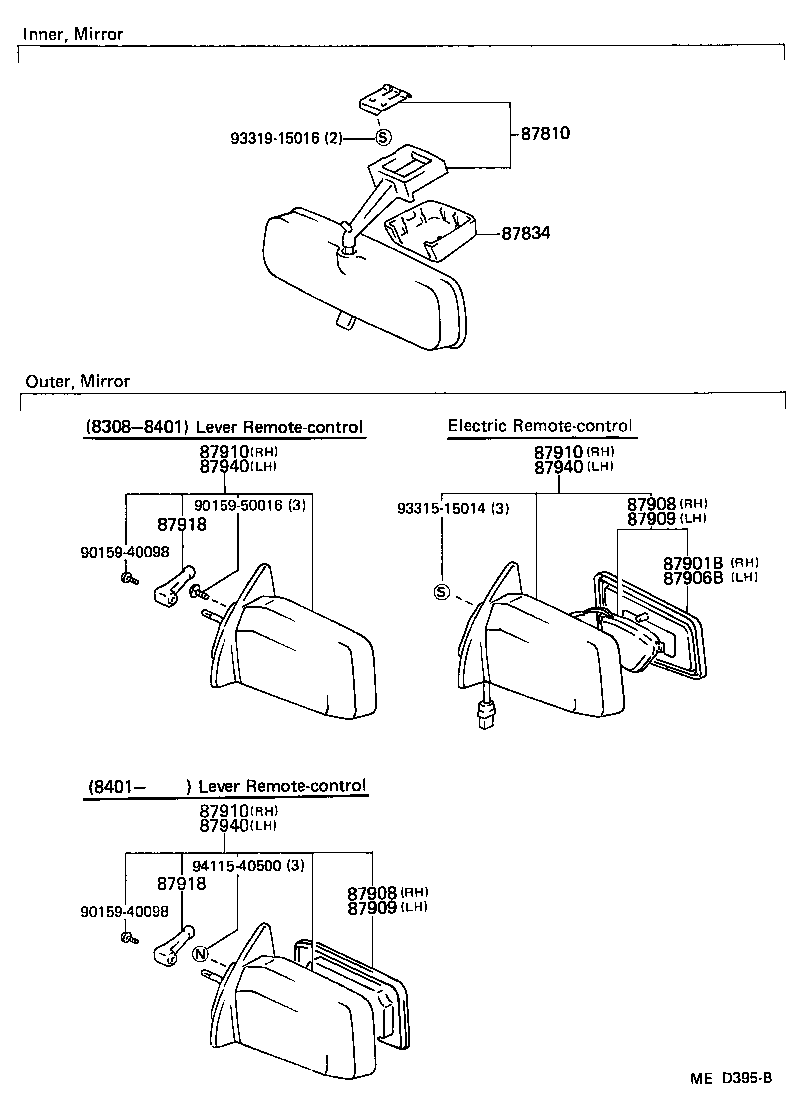

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87810 - MIRROR ASSY, INNER REAR VIEW | ||||
| 87810-1220002 |
AE86 MAROON,RED/MAROON |
1 | ||
| 87810-1220004 |
AE86..DX,SR5 BLUE,BLUE |
1 | ||
| 87834 - COVER, INNER REAR VIEW MIRROR STAY HOLDER | ||||
| 87834-2008024 |
AE86..DX,SR5 BLUE,BLUE |
1 | ||
| 87834-2008002 |
AE86 MAROON,RED/MAROON |
1 | ||
| 87908 - ACTUATOR ASSY, OUTER MIRROR, RH | ||||
| 87908-12070 |
AE86..SR5 ELECTRIC TYPE |
1 | ||
| 87908 - ACTUATOR ASSY, OUTER MIRROR, RH | ||||
| 87908-12070 |
AE86..SR5 ELECTRIC TYPE |
1 | ||
| 87909 - ACTUATOR ASSY, OUTER MIRROR, LH | ||||
| 87909-12060 |
AE86..SR5 ELECTRIC TYPE |
1 | ||
| 87909 - ACTUATOR ASSY, OUTER MIRROR, LH | ||||
| 87909-12060 |
AE86..SR5 ELECTRIC TYPE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-12680 |
AE86..SR5 ELECTRIC TYPE |
1 | ||
| 87910-12690 |
AE86 LEVER TYPE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-12680 |
AE86..SR5 ELECTRIC TYPE |
1 | ||
| 87910-12690 |
AE86 LEVER TYPE |
1 | ||
| 87910 - MIRROR ASSY, OUTER REAR VIEW, RH | ||||
| 87910-12680 |
AE86..SR5 ELECTRIC TYPE |
1 | ||
| 87910-12690 |
AE86 LEVER TYPE |
1 | ||
| 87918 - KNOB, CONTROL OUTER MIRROR | ||||
| 87918-12030 |
AE86 LEVER TYPE |
2 | ||
| 87918 - KNOB, CONTROL OUTER MIRROR | ||||
| 87918-12030 |
AE86 LEVER TYPE |
2 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-12770 |
AE86 LEVER TYPE |
1 | ||
| 87940-12760 |
AE86..SR5 ELECTRIC TYPE |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-12770 |
AE86 LEVER TYPE |
1 | ||
| 87940-12760 |
AE86..SR5 ELECTRIC TYPE |
1 | ||
| 87940 - MIRROR ASSY, OUTER REAR VIEW, LH | ||||
| 87940-12770 |
AE86 LEVER TYPE |
1 | ||
| 87940-12760 |
AE86..SR5 ELECTRIC TYPE |
1 | ||
| Common parts | ||||
| 90159-40098 | ||||
| 90159-50016 | ||||
| 93315-15014 | ||||
| 93319-15016 | ||||
| 94115-40500 | ||||
