AE86L-ECMXCK (1983)

Toyota Corolla Cp

Production Aug 1983 - Aug 1984
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

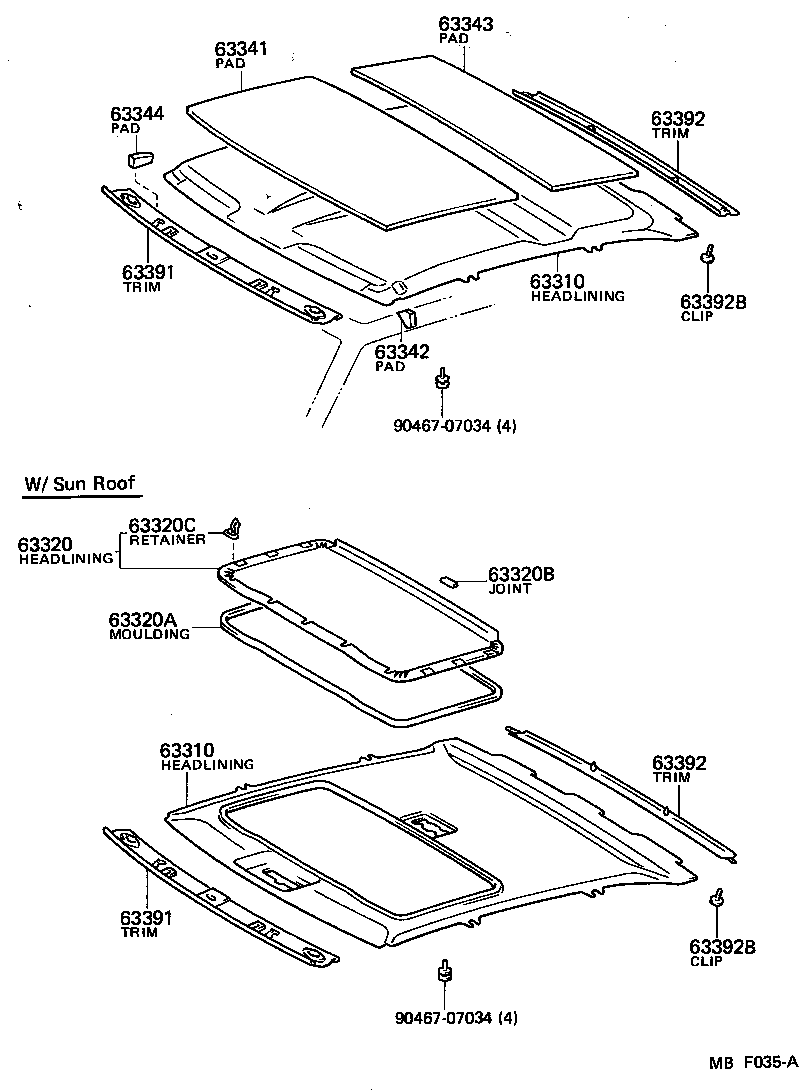

Click highlighted areas on diagram

diagram 63310 63310 63320 63320A 63320B 63320C 63341 63342 63343 63344 63391 63391 63392 63392 63392B 63392B 9046707034 9046707034
Part # Description Qty Price
63310 - HEADLINING ASSY, ROOF
63310-12600

AE86..3D

W/SUN ROOF,IVORY

 1
63311-12500

AE86..3D

IVORY

 1
63310 - HEADLINING ASSY, ROOF
63310-12600

AE86..3D

W/SUN ROOF,IVORY

 1
63311-12500

AE86..3D

IVORY

 1
63320 - HEADLINING ASSY, SUN ROOF OR REMOVABLE ROOF
63320-12040

AE86

IVORY

 1
63320A - MOULDING, SUN ROOF OR REMOVABLE ROOF OPENING TRIM
63318-1202008

AE86

IVORY,IVORY

 1
63320B - JOINT, SUN ROOF OPENING TRIM
63319-14011

AE86

 1
63320C - RETAINER, TRIM BOARD(FOR SUN ROOF)
63317-20030

AE86

 5
63341 - PAD, ROOF SILENCER, NO.1
63341-12090

AE86

 1
63342 - PAD, ROOF SILENCER, NO.2
63342-12050

AE86

 2
63343 - PAD, ROOF SILENCER, NO.3
63343-12050

AE86

 1
63344 - PAD, ROOF SILENCER, NO.4
63344-12010

AE86

 2
63391 - TRIM, ROOF HEADLINING, FRONT
63304-1202004

AE86..DX,SR5

BLUE,BLUE

 1
63304-1202002

AE86

DEEP MAROON,RED/MAROON

 1
63391 - TRIM, ROOF HEADLINING, FRONT
63304-1202004

AE86..DX,SR5

BLUE,BLUE

 1
63304-1202002

AE86

DEEP MAROON,RED/MAROON

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-1211002

AE86..3D

DEEP MAROON,RED/MAROON

 1
63392-1211004

AE86..3D..SR5

BLUE,BLUE

 1
63392 - TRIM, ROOF HEADLINING, REAR
63392-1211002

AE86..3D

DEEP MAROON,RED/MAROON

 1
63392-1211004

AE86..3D..SR5

BLUE,BLUE

 1
63392B - CLIP(FOR ROOF HEADLINING REAR TRIM)
90467-0603804

AE86..3D..SR5

BLUE,BLUE

 2
90467-0603802

AE86..3D

DEEP MAROON,RED/MAROON

 2
63392B - CLIP(FOR ROOF HEADLINING REAR TRIM)
90467-0603804

AE86..3D..SR5

BLUE,BLUE

 2
90467-0603802

AE86..3D

DEEP MAROON,RED/MAROON

 2
Common parts
90467-07034
