AE86L-ECMXCK (1983)

Toyota Corolla Cp

Production Aug 1983 - Aug 1984
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )5F

Click highlighted areas on diagram

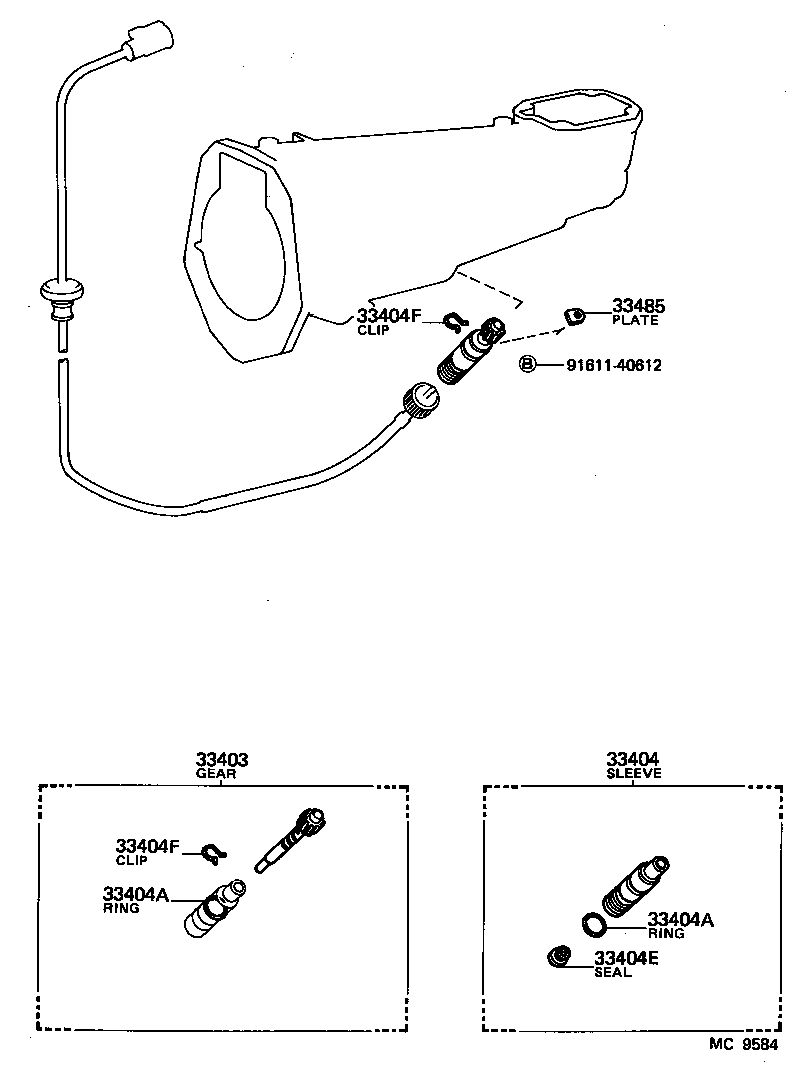

diagram 33403 33404 33404A 33404A 33404E 33404F 33404F 33485 9161140612
Part # Description Qty Price
33403 - GEAR SUB-ASSY, SPEEDOMETER DRIVEN (MTM)
33403-19155

AE86..5F..(DX,SR5)

N=20,MARK 20:6

 1
33404 - SLEEVE SUB-ASSY, SPEEDOMETER SHAFT (MTM)
33404-16010

AE86..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96711-24018

AE86..5F

 1
33404A - RING, O (FOR MTM SPEEDOMETER SHAFT SLEEVE)
96711-24018

AE86..5F

 1
33404E - SEAL, OIL (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90310-09001

AE86..5F

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE86..5F

 1
33404F - CLIP (FOR MTM SPEEDOMETER SHAFT SLEEVE)
90468-12005

AE86..5F

 1
33485 - PLATE, SPEEDOMETER SLEEVE LOCK (MTM)
33485-14010

AE86..5F

 1
Common parts
91611-40612
