AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

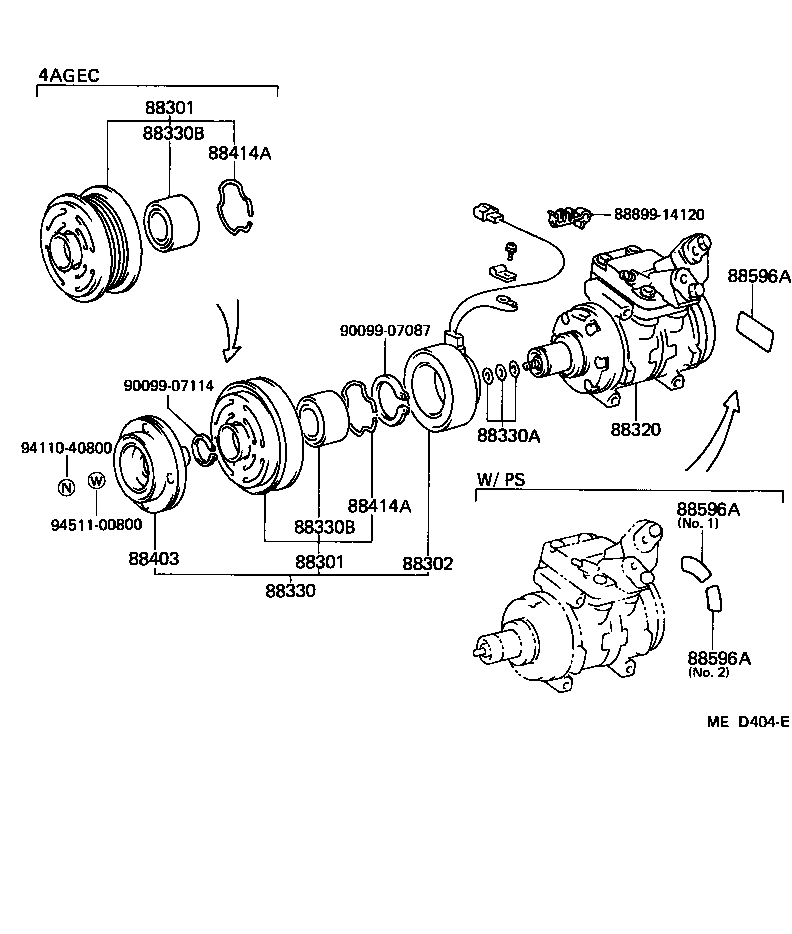

diagram 88301 88301 88302 88320 88330 88330A 88330B 88330B 88403 88414A 88414A 88596A 88596A 88596A 8889914120 9009907087 9009907114 9411040800 9451100800
Part # Description Qty Price
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14030

AE86..DX,SR5

 1
88301 - ROTOR SUB-ASSY, MAGNET CLUTCH
88412-14030

AE86..DX,SR5

 1
88302 - STATOR SUB-ASSY, MAGNET CLUTCH
88411-14060

AE86..DX,SR5

 1
88320 - COMPRESSOR ASSY, COOLER
88320-12430

AE86..(DX,SR5)..USA

MAKER OPTION

 1
88320-12280

AE86..USA

MAKER OPTION

 1
88320-12300

AE86..DX,SR5

DEALER OPTION

 1
88320-12420

AE86..DX,SR5

DEALER OPTION

 1
88330 - CLUTCH ASSY, MAGNET
88410-14110

AE86..DX,SR5

 1
88330A - WASHER (FOR MAGNET CLUTCH)
88335-12050

AE86

 1
88330B - BEARING, MAGNET CLUTCH
90099-10135

AE86..DX,SR5

 1
88330B - BEARING, MAGNET CLUTCH
90099-10135

AE86..DX,SR5

 1
88403 - HUB SUB-ASSY, MAGNET CLUTCH
88403-12040

AE86..DX,SR5

 1
88403-14040

AE86..DX,SR5

 1
88414A - RING, SHIELD SNAP
90099-07114

AE86..DX,SR5

 1
88414A - RING, SHIELD SNAP
90099-07114

AE86..DX,SR5

 1
88596A - PLATE, CAUTION
88356-12010

AE86

 1
88596A - PLATE, CAUTION
88356-12010

AE86

 1
88596A - PLATE, CAUTION
88356-12010

AE86

 1
Common parts
88899-14120
90099-07087
90099-07114
94110-40800
94511-00800

(8308- )

Click highlighted areas on diagram

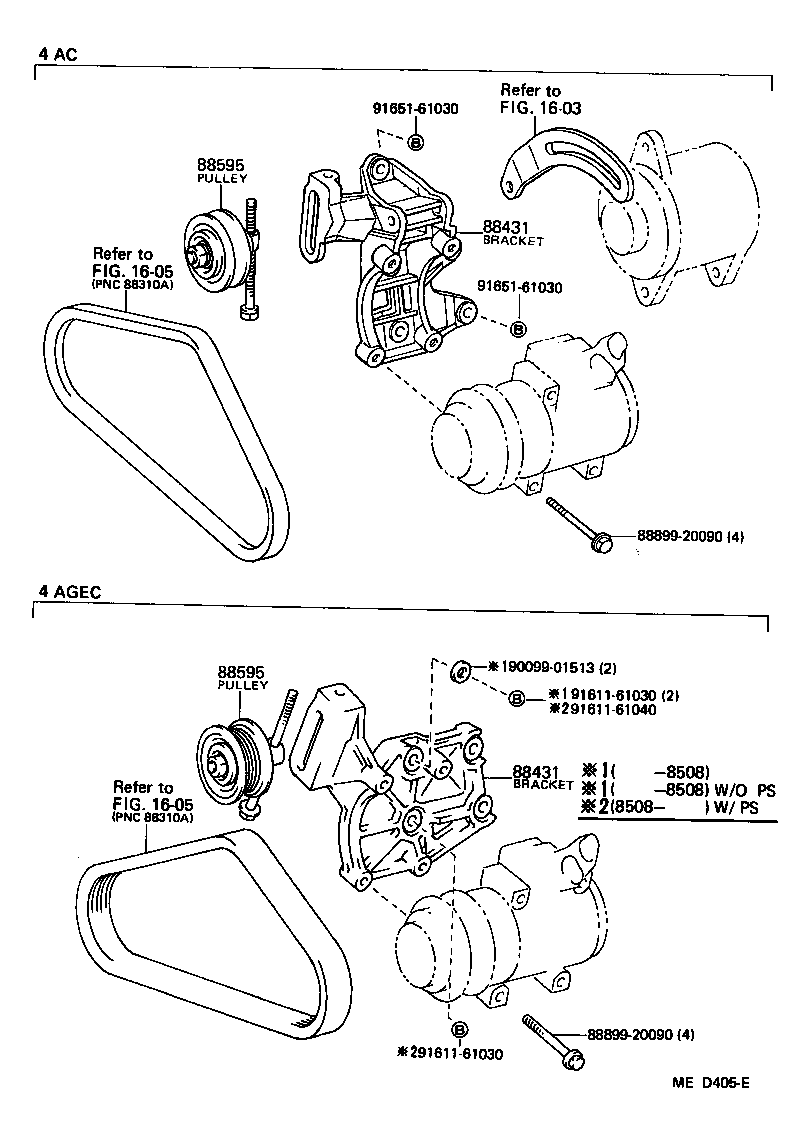

diagram 1603 1605 1605 88431 88431 88595 88595 8889920090 8889920090 9009901513 9161161030 9161161030 9161161040 9165161030 9165161030
Part # Description Qty Price
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12280

AE86..DX,SR5

 1
88431 - BRACKET, COMPRESSOR MOUNTING, NO.1
88431-12280

AE86..DX,SR5

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12120

AE86..DX,SR5

 1
88595 - PULLEY, COOLER COMPRESSOR IDLE
88440-12120

AE86..DX,SR5

 1
Common parts
88899-20090
90099-01513
91611-61030
91611-61040
91651-61030
Linked diagrams
1603
1605

(8308- )

Click highlighted areas on diagram

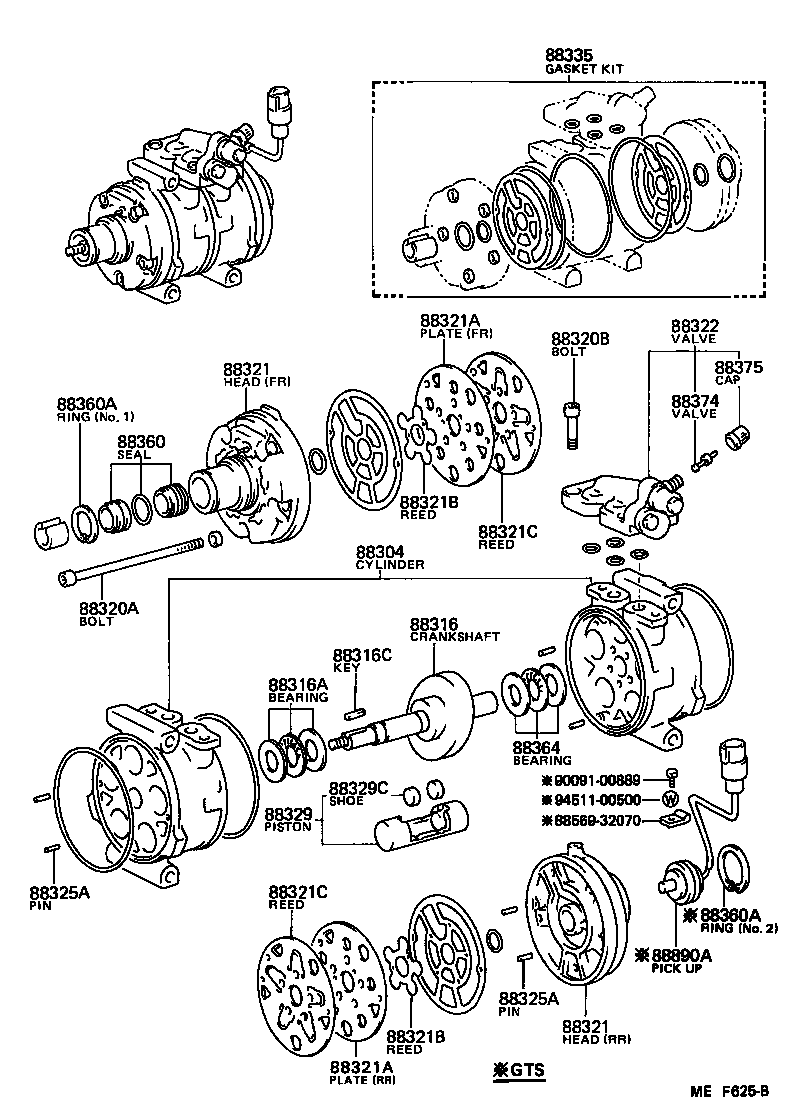

diagram 88304 88316 88316A 88316C 88320A 88320B 88321 88321 88321A 88321A 88321B 88321B 88321C 88321C 88322 88325A 88325A 88329 88329C 88335 88360 88360A 88360A 88364 88374 88375 8856932070 88890A 9009100889 9451100500
Part # Description Qty Price
88304 - CYLINDER SUB-ASSY, COOLER COMPRESSOR
88304-14041

AE86

 1
88316 - CRANKSHAFT, COOLER COMPRESSOR
88316-14021

AE86

 1
88316A - BEARING, COMPRESSOR CRANKSHAFT, FRONT
88366-14010

AE86

 1
88316C - KEY, COMPRESSOR CRANKSHAFT
90099-13024

AE86

 1
90099-13012

AE86

 1
88320A - BOLT, THROUGH
90099-04968

AE86

 5
88320B - BOLT, SERVICE VALVE
90099-04255

AE86

 4
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-14011

AE86

FR

 1
88322-14011

AE86

RR

 1
88321 - HEAD, COOLER COMPRESSOR CYLINDER
88321-14011

AE86

FR

 1
88322-14011

AE86

RR

 1
88321A - PLATE SUB-ASSY, VALVE
88342-14010

AE86

RR

 1
88341-14010

AE86

FR

 1
88321A - PLATE SUB-ASSY, VALVE
88342-14010

AE86

RR

 1
88341-14010

AE86

FR

 1
88321B - REED SUB-ASSY, VALVE
88344-14011

AE86

 2
88321B - REED SUB-ASSY, VALVE
88344-14011

AE86

 2
88321C - REED, SUCTION VALVE
88343-14011

AE86

 2
88321C - REED, SUCTION VALVE
88343-14011

AE86

 2
88322 - VALVE, COOLER COMPRESSOR SUCTION SERVICE
88371-12230

AE86..USA

MAKER OPTION

 1
88371-12220

AE86..DX,SR5

DEALER OPTION

 1
88371-12290

AE86..DX,SR5

DEALER OPTION

 1
88371-12310

AE86..(DX,SR5)..USA

MAKER OPTION

 1
88325A - PIN, CYLINDER BLOCK
90099-08058

AE86

 4
88325A - PIN, CYLINDER BLOCK
90099-08058

AE86

 4
88329 - PISTON SUB-ASSY, COOLER COMPRESSOR
88301-12050

AE86

 5
88329C - SHOE, PISTON
88313-14010

AE86

 10
88335 - GASKET KIT, OVERHAUL
04881-10010

AE86

 1
88335-12030

AE86

 1
88360 - SEAL ASSY, COOLER COMPRESSOR SHAFT
88360-40010

AE86

 1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

AE86

NO.1

 1
88360A - RING, COMPRESSOR SEAL PLATE SNAP
90096-90022

AE86

NO.1

 1
88364 - BEARING, COMPRESSOR CRANKSHAFT, REAR
88366-14010

AE86

 1
88374 - VALVE, COOLER COMPRESSOR SERVICE
88374-12020

AE86..DX,SR5

 1
88374-12020

AE86

 1
88375 - CAP, COOLER COMPRESSOR SERVICE VALVE
88375-30270

AE86..DX,SR5

 1
88375-30270

AE86

 1
Common parts
88569-32070
90091-00889
94511-00500
