AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

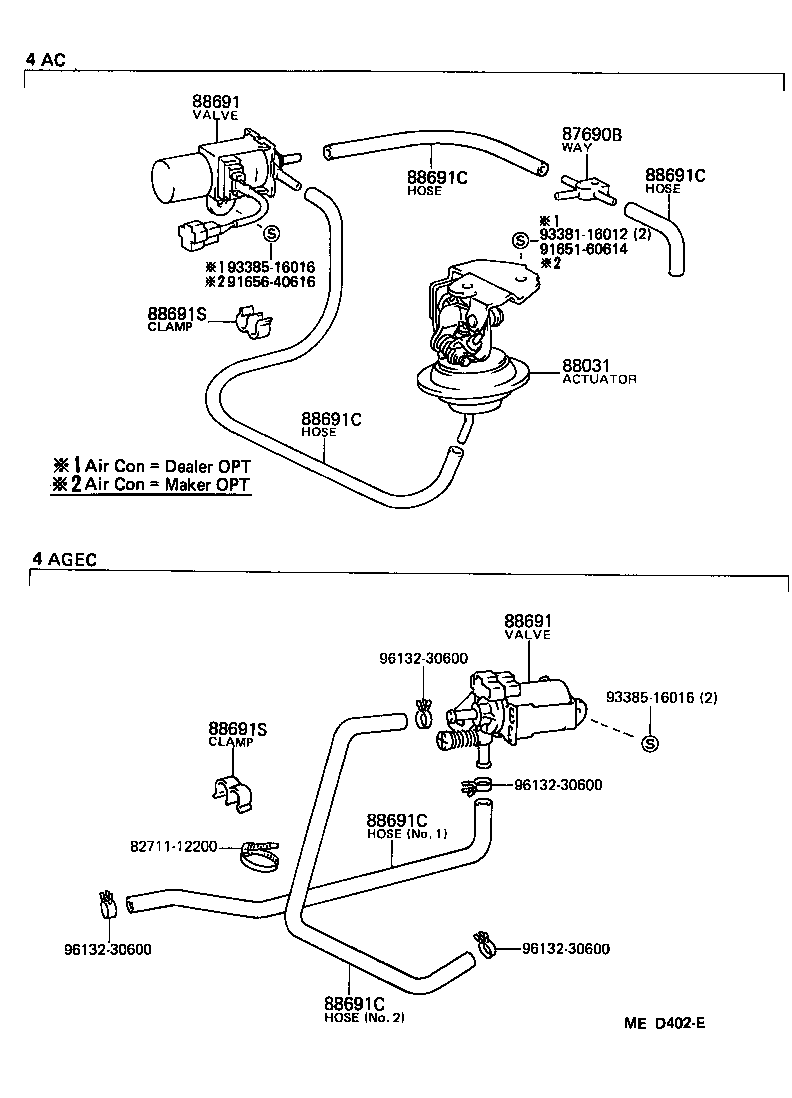

Click highlighted areas on diagram

diagram 8271112200 87690B 88031 88691 88691 88691C 88691C 88691C 88691C 88691C 88691S 88691S 9165160614 9165640616 9338116012 9338516016 9338516016 9613230600 9613230600 9613230600 9613230600
Part # Description Qty Price
87690B - WAY, 3
90413-04005

AE86..DX,SR5

 1
88031 - ACTUATOR SET, IDLE-UP
88031-16020

AE86..DX,SR5

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-30430

AE86..(DX,SR5)..USA

MAKER OPTION

 1
88690-12380

AE86..DX,SR5

DEALER OPTION

 1
88690-14280

AE86..DX,SR5

DEALER OPTION

 1
88691 - VALVE, MAGNET (FOR IDLE UP DEVICE)
88691-30430

AE86..(DX,SR5)..USA

MAKER OPTION

 1
88690-12380

AE86..DX,SR5

DEALER OPTION

 1
88690-14280

AE86..DX,SR5

DEALER OPTION

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

AE86..DX,SR5

*H,L=120,MARK=#0

 1
95411-10030

AE86..DX,SR5

*H,L=40,MARK=#0

 1
95411-19960

AE86..DX,SR5

*H,L=360,MARK=#*

 1
95411-10030

AE86..DX,SR5

*H,L=200,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

AE86..DX,SR5

*H,L=120,MARK=#0

 1
95411-10030

AE86..DX,SR5

*H,L=40,MARK=#0

 1
95411-19960

AE86..DX,SR5

*H,L=360,MARK=#*

 1
95411-10030

AE86..DX,SR5

*H,L=200,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

AE86..DX,SR5

*H,L=120,MARK=#0

 1
95411-10030

AE86..DX,SR5

*H,L=40,MARK=#0

 1
95411-19960

AE86..DX,SR5

*H,L=360,MARK=#*

 1
95411-10030

AE86..DX,SR5

*H,L=200,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

AE86..DX,SR5

*H,L=120,MARK=#0

 1
95411-10030

AE86..DX,SR5

*H,L=40,MARK=#0

 1
95411-19960

AE86..DX,SR5

*H,L=360,MARK=#*

 1
95411-10030

AE86..DX,SR5

*H,L=200,MARK=#0

 1
88691C - HOSE, VACUUM (FOR IDLE UP DEVICE), NO.1
95411-10030

AE86..DX,SR5

*H,L=120,MARK=#0

 1
95411-10030

AE86..DX,SR5

*H,L=40,MARK=#0

 1
95411-19960

AE86..DX,SR5

*H,L=360,MARK=#*

 1
95411-10030

AE86..DX,SR5

*H,L=200,MARK=#0

 1
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00082

AE86..DX,SR5

 1
88691S - CLAMP (FOR IDLE UP DIVICE), NO.1
90464-00082

AE86..DX,SR5

 1
Common parts
82711-12200
91651-60614
91656-40616
93381-16012
93385-16016
96132-30600
