AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

Click highlighted areas on diagram

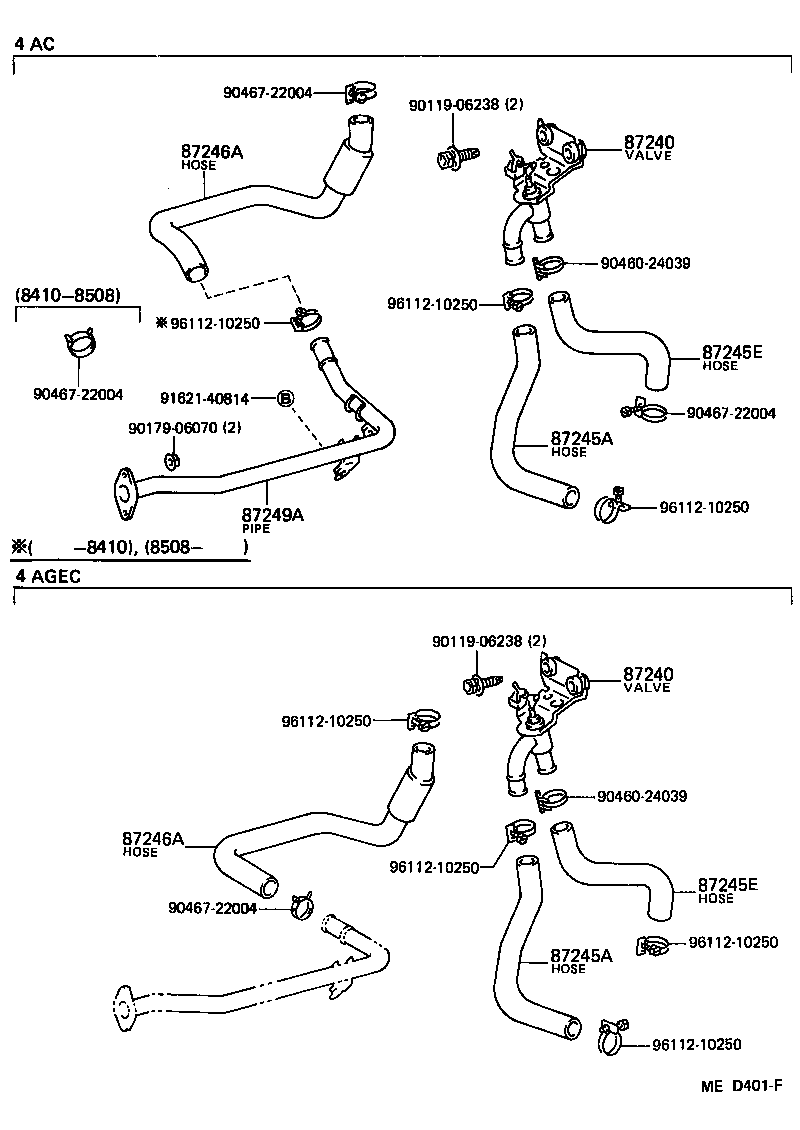

diagram 87240 87240 87245A 87245A 87245E 87245E 87246A 87246A 87249A 9011906238 9011906238 9017906070 9046024039 9046024039 9046722004 9046722004 9046722004 9046722004 9162140814 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87240 - VALVE ASSY, HEATER WATER
87240-12210

AE86

 1
87240 - VALVE ASSY, HEATER WATER
87240-12210

AE86

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12800

AE86

 1
87245A - HOSE, HEATER WATER, INLET A
87245-12800

AE86

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12780

AE86

 1
87245E - HOSE, HEATER WATER, INLET E
87245-12780

AE86

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1A150

AE86..DX,SR5

 1
87245-12830

AE86..DX,SR5

 1
87245-1A050

AE86..(DX,SR5)..USA

W/O HEATER

 1
87246A - HOSE, HEATER WATER, OUTLET A
87245-1A150

AE86..DX,SR5

 1
87245-12830

AE86..DX,SR5

 1
87245-1A050

AE86..(DX,SR5)..USA

W/O HEATER

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-12020

AE86..DX,SR5

 1
Common parts
90119-06238
90179-06070
90460-24039
90467-22004
91621-40814
96112-10250

(8308- )

Click highlighted areas on diagram

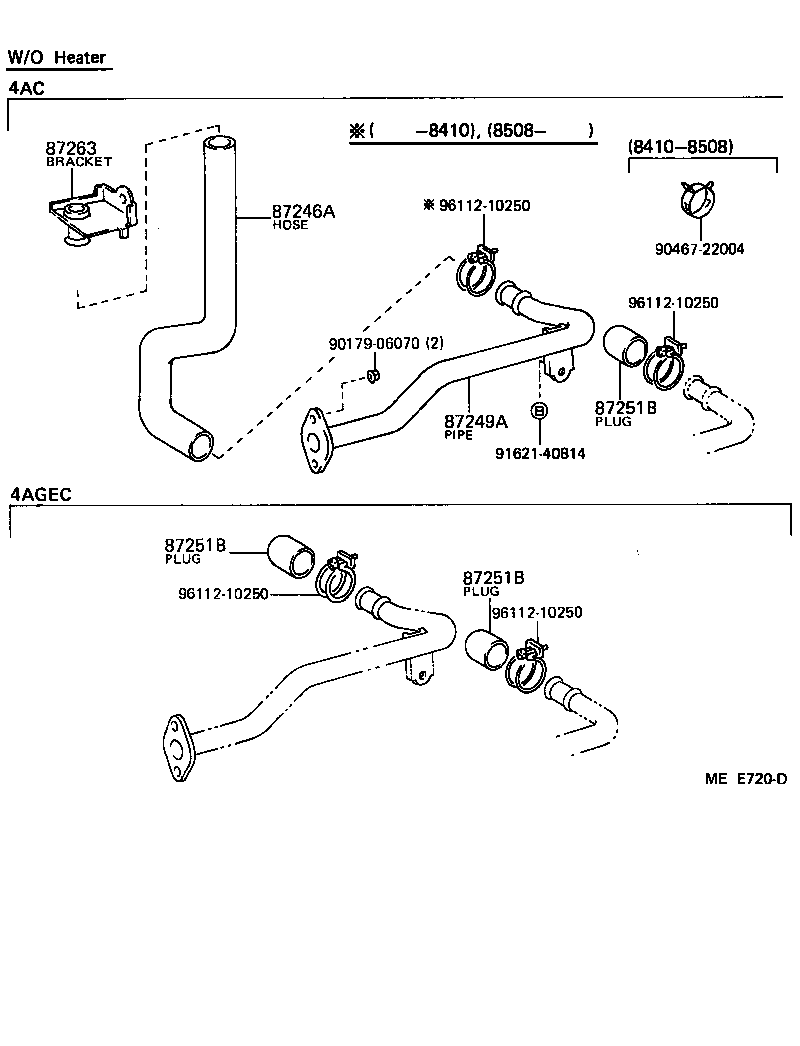

diagram 87246A 87249A 87251B 87251B 87251B 87263 9017906070 9046722004 9162140814 9611210250 9611210250 9611210250 9611210250
Part # Description Qty Price
87246A - HOSE, HEATER WATER, OUTLET A
87245-1A150

AE86..DX,SR5

 1
87245-12830

AE86..DX,SR5

 1
87245-1A050

AE86..(DX,SR5)..USA

W/O HEATER

 1
87249A - PIPE, HEATER WATER OUTLET, A
87208-12020

AE86..DX,SR5

 1
87251B - PLUG, HEATER WATER
90339-16007

AE86..USA

 2
87251B - PLUG, HEATER WATER
90339-16007

AE86..USA

 2
87251B - PLUG, HEATER WATER
90339-16007

AE86..USA

 2
87263 - BRACKET, HEATER WATER PIPE, NO.1
87263-12230

AE86..(DX,SR5)..USA

 1
Common parts
90179-06070
90467-22004
91621-40814
96112-10250
