AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )
Click highlighted areas on diagram

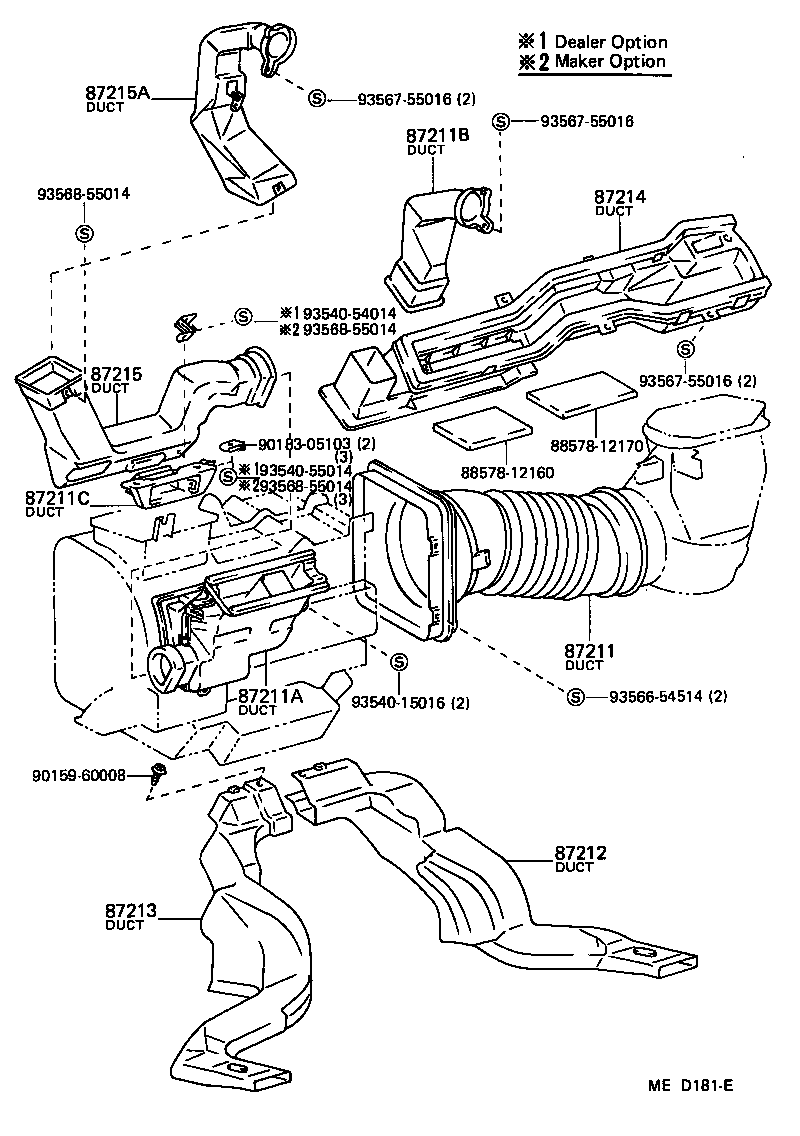

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87211 - DUCT, AIR, NO.1 | ||||
| 87201-12030 |
AE86 |
1 | ||
| 87211A - DUCT, AIR, NO.2 | ||||
| 87201-12070 |
AE86 |
1 | ||
| 87211B - DUCT, AIR, NO.3 | ||||
| 55845-12100 |
AE86 |
1 | ||
| 87211C - DUCT, AIR, NO.4 | ||||
| 55690-12010 |
AE86 |
1 | ||
| 87212 - DUCT, AIR, REAR NO.1 | ||||
| 87212-12050 |
AE86 |
1 | ||
| 87213 - DUCT, AIR, REAR NO.2 | ||||
| 87203-12020 |
AE86 |
1 | ||
| 87214 - DUCT, AIR, SIDE NO.1 RH | ||||
| 55087-12100 |
AE86 |
1 | ||
| 87215 - DUCT, AIR, SIDE NO.1 LH | ||||
| 55085-12120 |
AE86 W/COOLER |
1 | ||
| 55085-12100 |
AE86 |
1 | ||
| 87215A - DUCT, AIR, SIDE NO.2 LH | ||||
| 55084-12120 |
AE86 |
1 | ||
| Common parts | ||||
| 88578-12160 | ||||
| 88578-12170 | ||||
| 90159-60008 | ||||
| 90183-05103 | ||||
| 93540-15016 | ||||
| 93540-54014 | ||||
| 93540-55014 | ||||
| 93566-54514 | ||||
| 93567-55016 | ||||
| 93568-55014 | ||||
(8308- )
Click highlighted areas on diagram

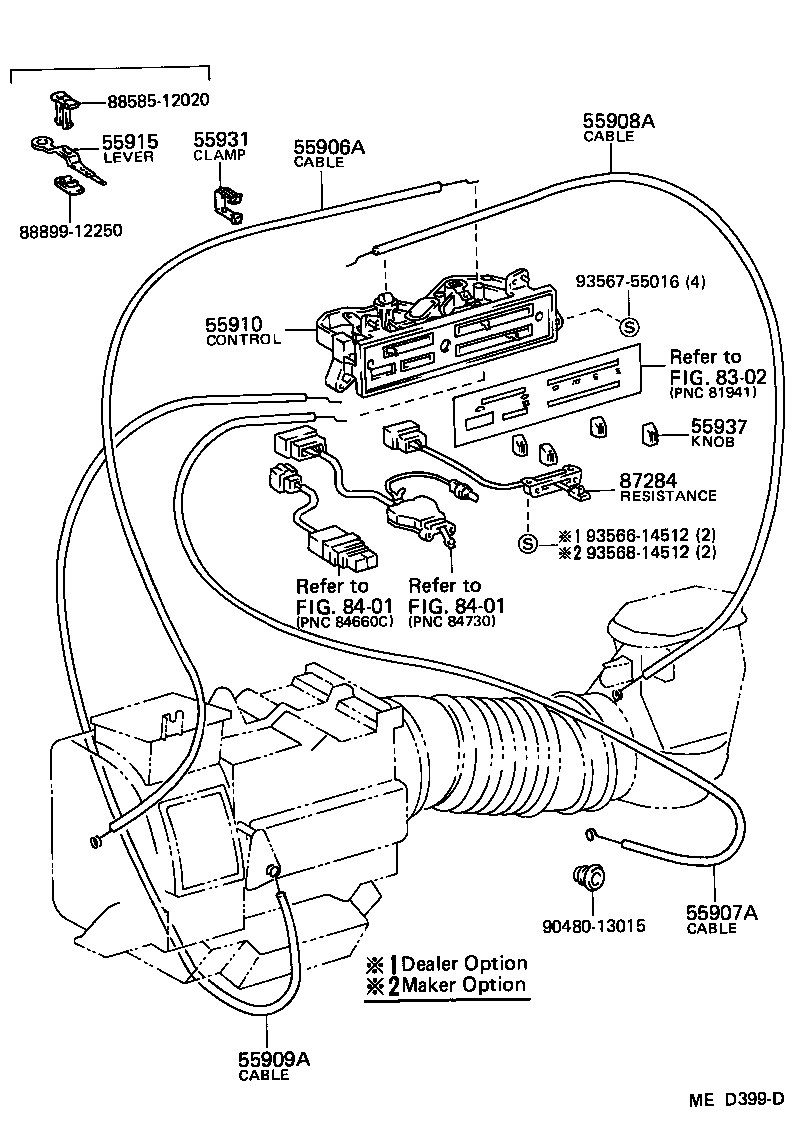

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 55906A - CABLE SUB-ASSY, DEFROSTER DAMPER CONTROL | ||||
| 55906-12170 |
AE86 |
1 | ||
| 55906-12210 |
AE86 |
1 | ||
| 55907A - CABLE SUB-ASSY, WATER VALVE CONTROL | ||||
| 55907-12210 |
AE86 |
1 | ||
| 55908A - CABLE SUB-ASSY, AIR INLET DAMPER CONTROL | ||||
| 55908-12150 |
AE86 |
1 | ||
| 55909A - CABLE SUB-ASSY, AIRMIX DAMPER CONTROL | ||||
| 55909-12130 |
AE86 |
1 | ||
| 55910 - CONTROL ASSY, HEATER OR BOOST VENTILATOR | ||||
| 55910-12370 |
AE86 |
1 | ||
| 55910-12380 |
AE86..USA W/*BV |
1 | ||
| 55910-12420 |
AE86..USA W/O HEATER & *BV |
1 | ||
| 55915 - LEVER, COOLER CONTROL | ||||
| 55917-12081 |
AE86..USA |
1 | ||
| 55917-12080 |
AE86..USA |
1 | ||
| 55931 - CLAMP, HEATER CONTROL WIRE | ||||
| 55933-12010 |
AE86 |
1 | ||
| 55937 - KNOB, HEATER CONTROL LEVER | ||||
| 55905-12060 |
AE86 |
4 | ||
| 87284 - RESISTOR SUB-ASSY, VARIABLE | ||||
| 88032-12060 |
AE86..USA |
1 | ||
| Common parts | ||||
| 88585-12020 | ||||
| 88899-12250 | ||||
| 90480-13015 | ||||
| 93566-14512 | ||||
| 93567-55016 | ||||
| 93568-14512 | ||||
| Linked diagrams | ||||
| 8302 | ||||
| 8401 | ||||
