AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

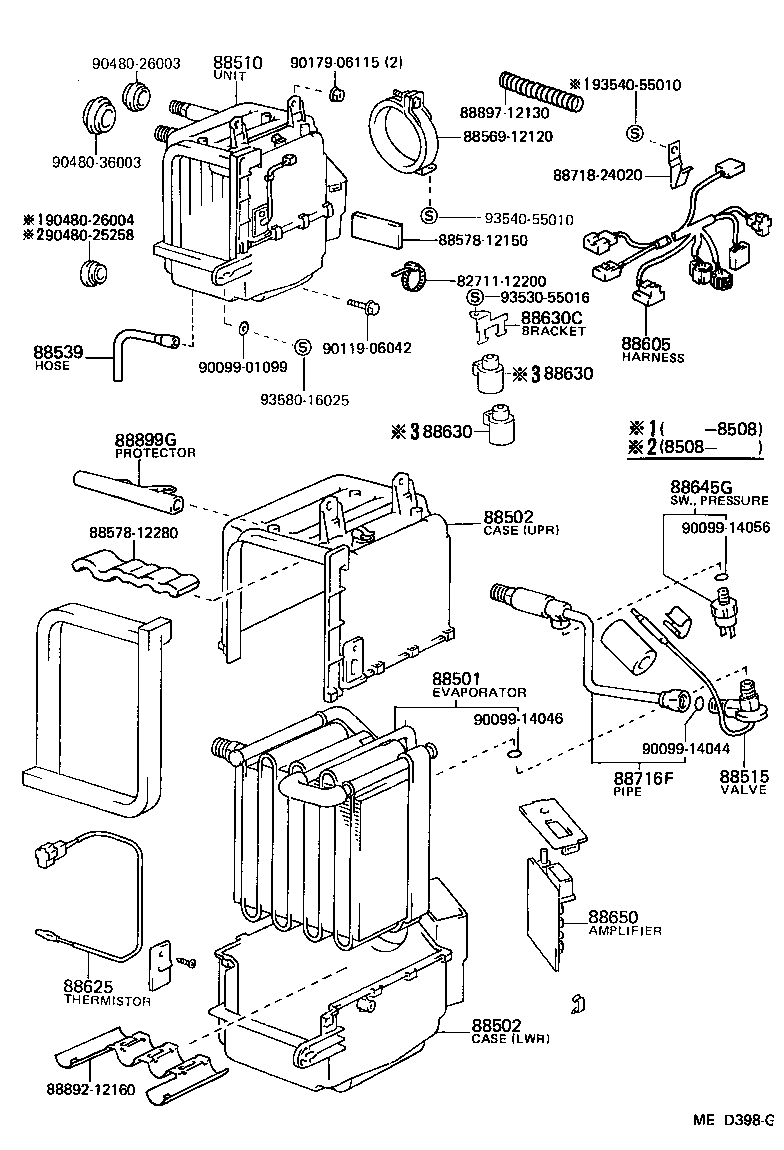

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 88501 - EVAPORATOR SUB-ASSY, COOLER, NO.1 | ||||
| 88501-12301 |
AE86 |
1 | ||
| 88501-12302 |
AE86 |
1 | ||
| 88501-12300 |
AE86..DX,SR5 |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-12080 |
AE86 UPR |
1 | ||
| 88502-12090 |
AE86 LWR |
1 | ||
| 88502 - CASE SUB-ASSY, COOLING UNIT | ||||
| 88502-12080 |
AE86 UPR |
1 | ||
| 88502-12090 |
AE86 LWR |
1 | ||
| 88510 - UNIT ASSY, COOLER | ||||
| 88510-12410 |
AE86..DX,SR5 |
1 | ||
| 88510-12411 |
AE86..DX,SR5 |
1 | ||
| 88510-12660 |
AE86..(DX,SR5)..USA W/*BV |
1 | ||
| 88515 - VALVE, COOLER EXPANSION | ||||
| 88515-16030 |
AE86 |
1 | ||
| 88515-16031 |
AE86 |
1 | ||
| 88539 - HOSE, COOLER UNIT DRAIN, NO.1 | ||||
| 88539-12070 |
AE86 |
1 | ||
| 88605 - HARNESS SUB-ASSY, COOLER WIRING, NO.1 | ||||
| 88605-12410 |
AE86..(DX,SR5)..USA W/*BV |
1 | ||
| 88605-12400 |
AE86..DX,SR5 |
1 | ||
| 88625 - THERMISTOR, COOLER, NO.1 | ||||
| 88625-95A00 |
AE86 |
1 | ||
| 88625-12070 |
AE86 |
1 | ||
| 88645G - SWITCH, PRESSURE | ||||
| 88645-12020 |
AE86 |
1 | ||
| 88650 - AMPLIFIER ASSY, COOLER STABILIZER | ||||
| 88650-10030 |
AE86..DX,SR5 |
1 | ||
| 88650-14140 |
AE86..(DX,SR5)..USA W/*BV |
1 | ||
| 88716F - PIPE, COOLER REFRIGERANT LIQUID, F | ||||
| 88716-12490 |
AE86..DX,SR5 |
1 | ||
| 88726-12070 |
AE86 |
1 | ||
| 88899G - MOULDING, PROTECTOR | ||||
| 88899-12230 |
AE86 |
1 | ||
| Common parts | ||||
| 82711-12200 | ||||
| 88569-12120 | ||||
| 88578-12150 | ||||
| 88578-12280 | ||||
| 88718-24020 | ||||
| 88892-12160 | ||||
| 88897-12130 | ||||
| 90099-01099 | ||||
| 90099-14044 | ||||
| 90099-14046 | ||||
| 90099-14056 | ||||
| 90119-06042 | ||||
| 90179-06115 | ||||
| 90480-25258 | ||||
| 90480-26003 | ||||
| 90480-26004 | ||||
| 90480-36003 | ||||
| 93530-55016 | ||||
| 93540-55010 | ||||
| 93580-16025 | ||||
(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price |
|---|
