AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )
Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12040 |
AE86..USA NO.1 |
3 | ||
| 87126-12050 |
AE86 NO.2 |
1 | ||
| 88910 - VENTILATOR ASSY, BOOST | ||||
| 88910-12050 |
AE86..USA |
1 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90179-06162 | ||||
(8308- )

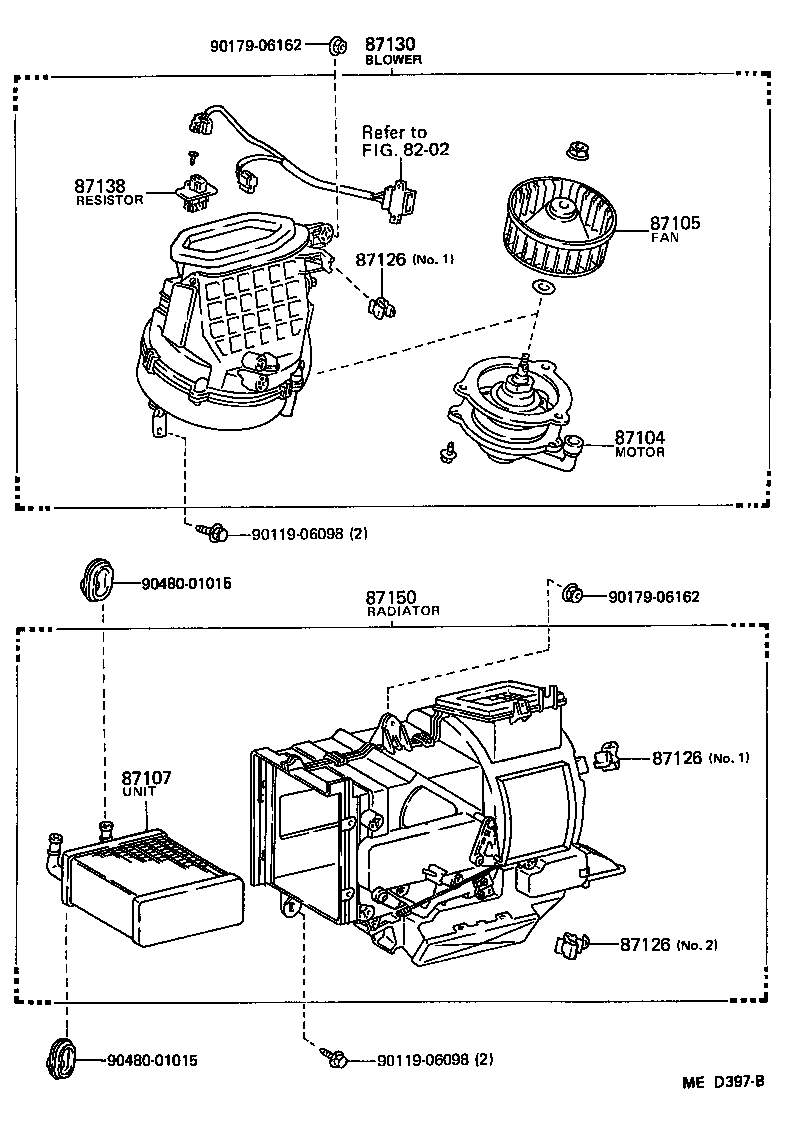

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 87104 - MOTOR SUB-ASSY, HEATER BLOWER | ||||
| 87104-12120 |
AE86 |
1 | ||
| 87105 - FAN SUB-ASSY, HEATER BLOWER | ||||
| 87105-12060 |
AE86 |
1 | ||
| 87107 - UNIT SUB-ASSY, HEATER RADIATOR | ||||
| 87107-12280 |
AE86..USA |
1 | ||
| 87107-12290 |
AE86..USA COLD SPEC |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12040 |
AE86..USA NO.1 |
3 | ||
| 87126-12050 |
AE86 NO.2 |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12040 |
AE86..USA NO.1 |
3 | ||
| 87126-12050 |
AE86 NO.2 |
1 | ||
| 87126 - CLAMP, HEATER CONTROL | ||||
| 87126-12040 |
AE86..USA NO.1 |
3 | ||
| 87126-12050 |
AE86 NO.2 |
1 | ||
| 87130 - BLOWER ASSY, HEATER, FRONT | ||||
| 87130-12170 |
AE86 |
1 | ||
| 87138 - RESISTOR, HEATER BLOWER | ||||
| 87138-12091 |
AE86 |
1 | ||
| 87150 - RADIATOR ASSY, HEATER | ||||
| 87150-12240 |
AE86..USA |
1 | ||
| 87150-12260 |
AE86..USA COLD SPEC |
1 | ||
| Common parts | ||||
| 90119-06098 | ||||
| 90179-06162 | ||||
| 90480-01015 | ||||
| Linked diagrams | ||||
| 8202 | ||||
