AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

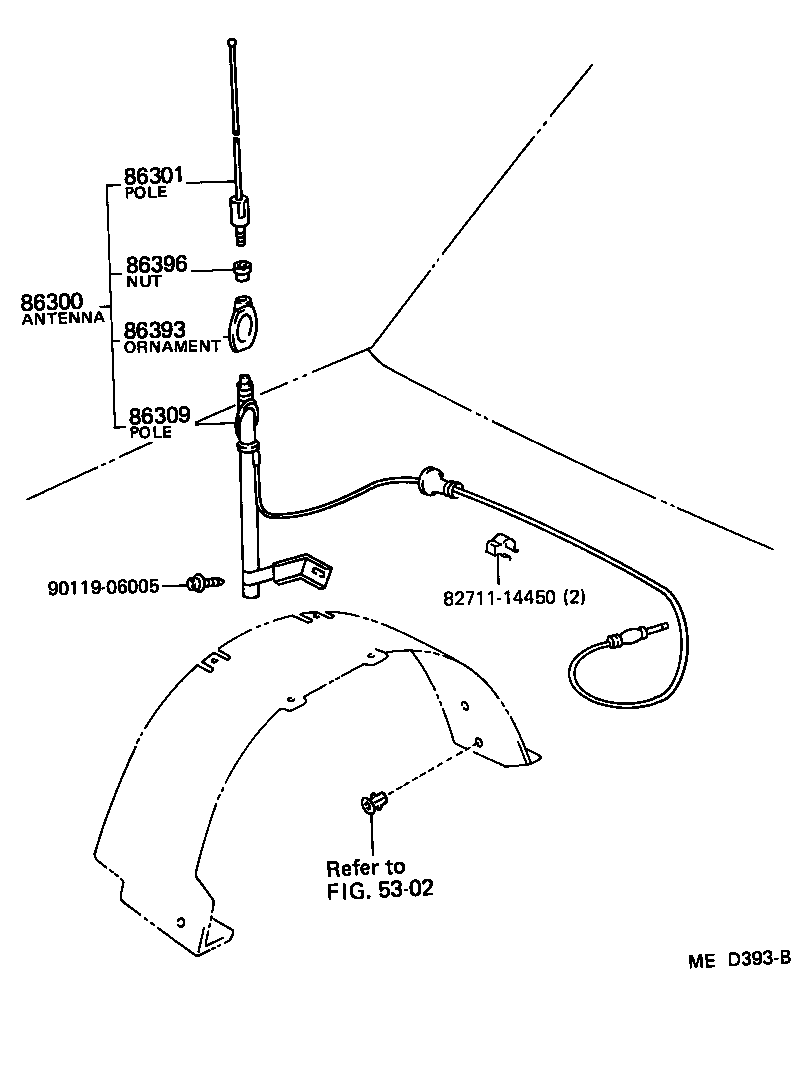

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 86300 - ANTENNA ASSY, W/HOLDER | ||||
| 86300-12280 |
AE86 |
1 | ||
| 86301 - POLE SUB-ASSY, ANTENNA | ||||
| 86309-16041 |
AE86 |
1 | ||
| 86309 - POLE SUB-ASSY, PILLAR ANTENNA | ||||
| 86309-12110 |
AE86 |
1 | ||
| 86393 - ORNAMENT, ANTENNA | ||||
| 86392-12060 |
AE86 |
1 | ||
| 86396 - NUT, ANTENNA | ||||
| 86396-12020 |
AE86 |
1 | ||
| Common parts | ||||
| 82711-14450 | ||||
| 90119-06005 | ||||
| Linked diagrams | ||||
| 5302 | ||||
