AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987

Engine 4AC

Transmission 3D MTM

Displacement 2500cc

Power 168 HP (125 kW)

(8308- )

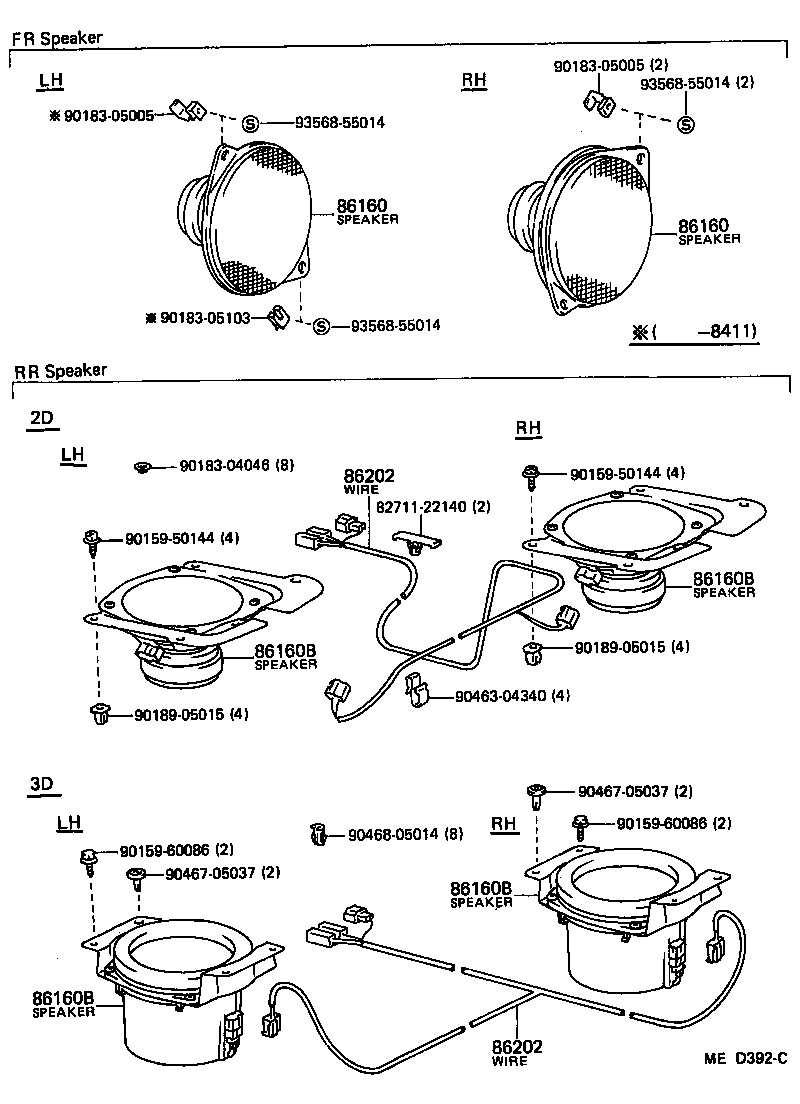

Click highlighted areas on diagram

diagram

Part #	Description	Period	Qty	Price
86160 - SPEAKER ASSY, FRONT NO.1
86160-12170	AE86	08/1983 - 02/1986	2
86160-12210	AE86	02/1986 - 07/1987	2
86160 - SPEAKER ASSY, FRONT NO.1
86160-12170	AE86	08/1983 - 02/1986	2
86160-12210	AE86	02/1986 - 07/1987	2
86160B - SPEAKER ASSY, REAR
86160-12140	AE86..3D	08/1985 - 07/1987	2
86150-12040	AE86..3D RH	08/1983 - 08/1985	1
86160-12150	AE86..3D LH	08/1983 - 08/1985	1
86160B - SPEAKER ASSY, REAR
86160-12140	AE86..3D	08/1985 - 07/1987	2
86150-12040	AE86..3D RH	08/1983 - 08/1985	1
86160-12150	AE86..3D LH	08/1983 - 08/1985	1
86160B - SPEAKER ASSY, REAR
86160-12140	AE86..3D	08/1985 - 07/1987	2
86150-12040	AE86..3D RH	08/1983 - 08/1985	1
86160-12150	AE86..3D LH	08/1983 - 08/1985	1
86160B - SPEAKER ASSY, REAR
86160-12140	AE86..3D	08/1985 - 07/1987	2
86150-12040	AE86..3D RH	08/1983 - 08/1985	1
86160-12150	AE86..3D LH	08/1983 - 08/1985	1
86202 - WIRE, SPEAKER, NO.1
82561-12030	AE86..3D	08/1983 - 07/1987	1
86202 - WIRE, SPEAKER, NO.1
82561-12030	AE86..3D	08/1983 - 07/1987	1
Common parts
82711-22140
90159-50144
90159-60086
90183-04046
90183-05005
90183-05103
90189-05015
90463-04340
90467-05037
90468-05014
93568-55014
