AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

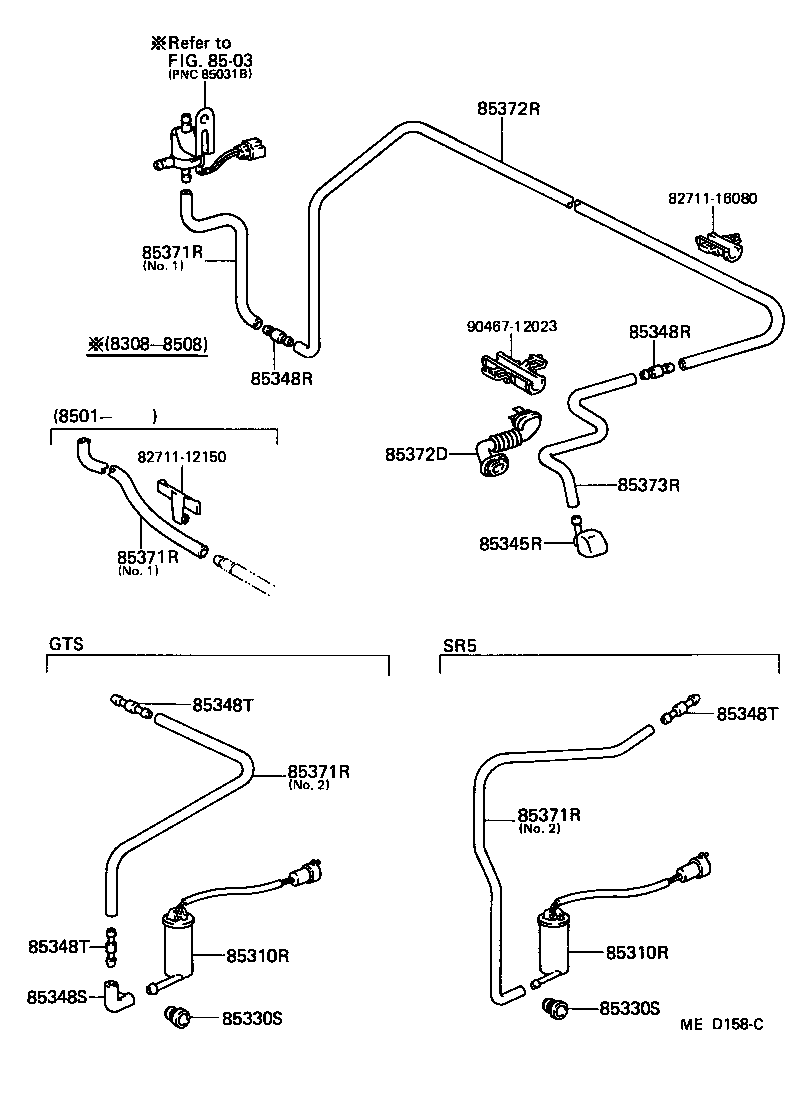

Click highlighted areas on diagram

diagram 8271112150 8271116080 8503 85310R 85310R 85330S 85330S 85345R 85348R 85348R 85348S 85348T 85348T 85348T 85371R 85371R 85371R 85371R 85372D 85372R 85373R 9046712023
Part # Description Qty Price
85310R - MOTOR ASSY, REAR WASHER
85310-10140

AE86..3D

 1
85310R - MOTOR ASSY, REAR WASHER
85310-10140

AE86..3D

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

AE86..3D

 1
85330S - BUSH, REAR WASHER JAR
90099-32089

AE86..3D

 1
85345R - NOZZLE, REAR WASHER
85035-12160

AE86..3D

 1
85035-12280

AE86..3D

 1
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

AE86..3D

 2
85355-89122

AE86..3D

 2
85348R - JOINT, REAR WASHER HOSE, NO.1
85355-87201

AE86..3D

 2
85355-89122

AE86..3D

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AE86..3D

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AE86..3D

 2
85348T - JOINT, REAR WASHER HOSE, NO.2
85349-89122

AE86..3D

 2
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
85370-12220

AE86..3D

NO.1,L=600

 1
90099-33080

AE86..3D..SR5

*H,L=1300,NO.1

 1
90446-07001

AE86..3D

*H,L=810,NO.1

 1
90446-07001

AE86..3D

*H,L=450,NO.2

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
85370-12220

AE86..3D

NO.1,L=600

 1
90099-33080

AE86..3D..SR5

*H,L=1300,NO.1

 1
90446-07001

AE86..3D

*H,L=810,NO.1

 1
90446-07001

AE86..3D

*H,L=450,NO.2

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
85370-12220

AE86..3D

NO.1,L=600

 1
90099-33080

AE86..3D..SR5

*H,L=1300,NO.1

 1
90446-07001

AE86..3D

*H,L=810,NO.1

 1
90446-07001

AE86..3D

*H,L=450,NO.2

 1
85371R - HOSE, REAR WASHER (FROM MOTOR TO JOINT)
85370-12220

AE86..3D

NO.1,L=600

 1
90099-33080

AE86..3D..SR5

*H,L=1300,NO.1

 1
90446-07001

AE86..3D

*H,L=810,NO.1

 1
90446-07001

AE86..3D

*H,L=450,NO.2

 1
85372D - GROMMET, REAR WASHER HOSE
85372-12010

AE86..3D

 1
85372R - HOSE, REAR WASHER (FROM JOINT TO JOINT OR NOZZLE)
90099-33420

AE86..3D

*H,L=2400

 1
90099-33497

AE86..3D

L=2320

 1
85373R - HOSE, REAR WASHER (FROM JOINT TO NOZZLE)
90099-33299

AE86..3D

*H,L=310

 1
90099-33082

AE86..3D

*H,L=310

 1
Common parts
82711-12150
82711-16080
90467-12023
Linked diagrams
8503
