AE86L-ECMXCA (1983)
Toyota Corolla Cp
(8308-8508)DX,SR5

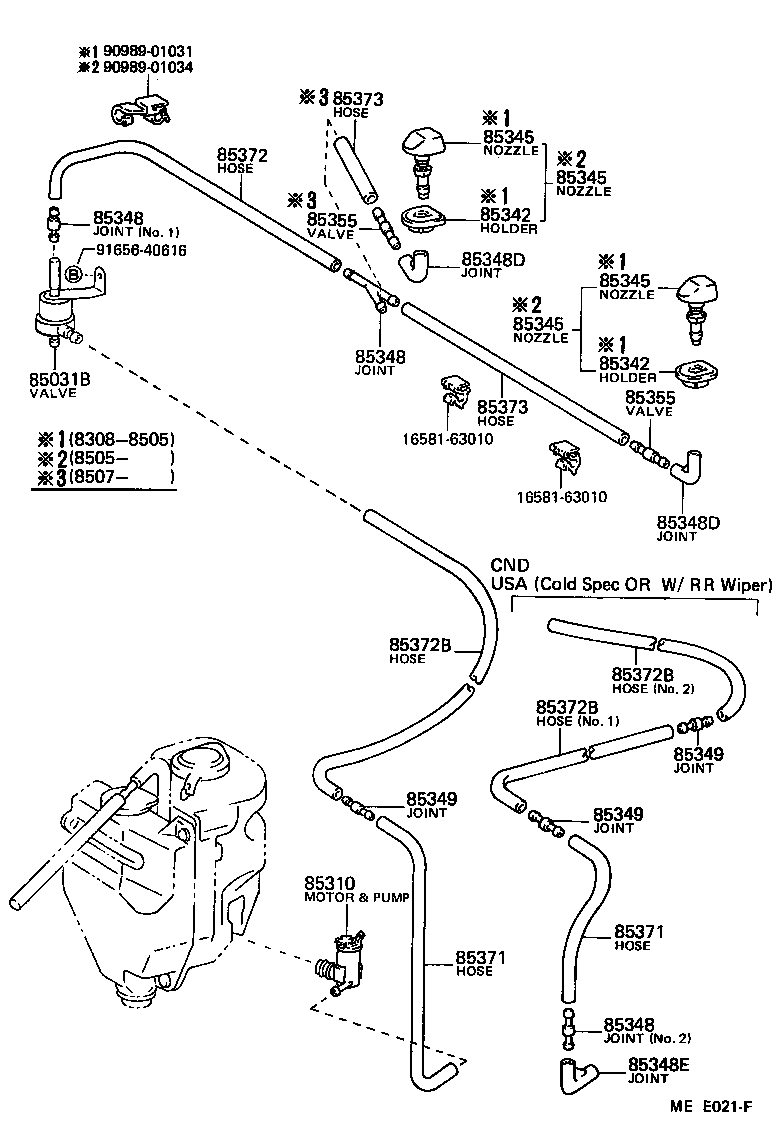

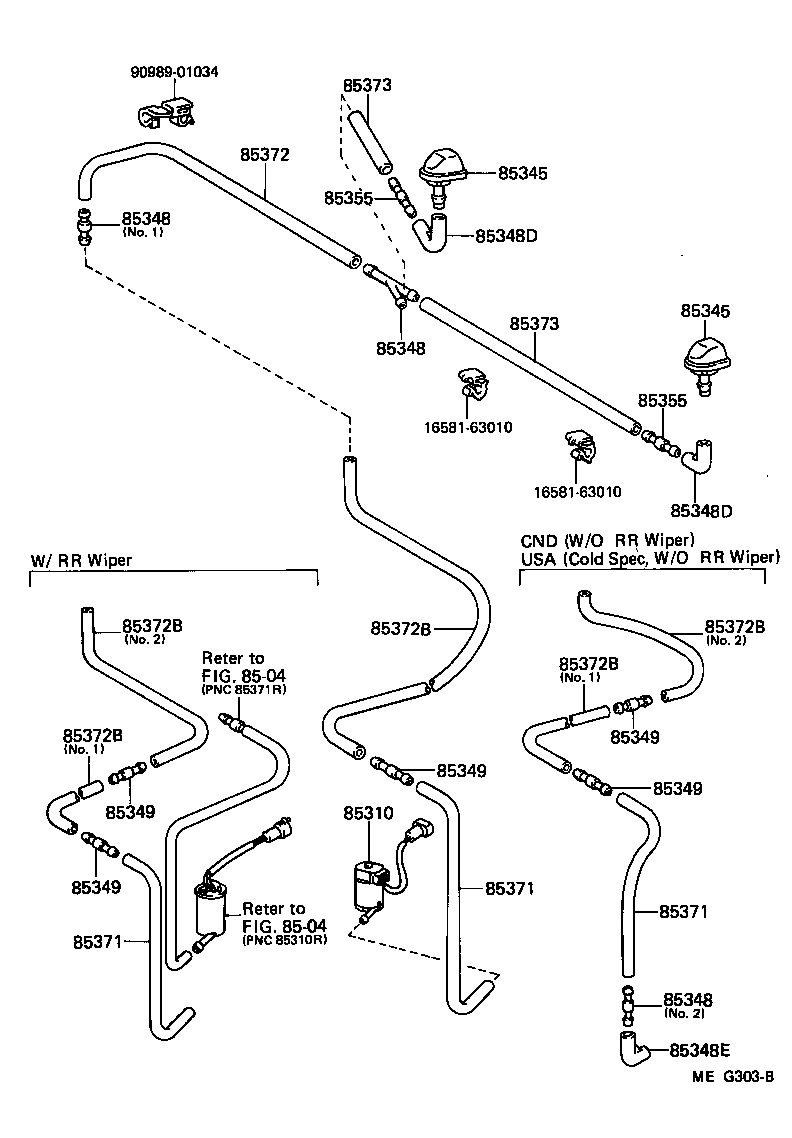

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85031B - VALVE SUB-ASSY, WASHER | ||||
| 85031-12070 |
AE86..3D |
1 | ||
| 85031-12090 |
AE86..3D |
1 | ||
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22111 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85310-10140 |
AE86..USA |
1 | ||
| 85310-20130 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85310-10150 |
AE86..USA |
1 | ||
| 85310-12130 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
AE86 |
2 | ||
| 85342 - HOLDER, WASHER NOZZLE | ||||
| 85342-14010 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85035-12180 |
AE86 |
2 | ||
| 85035-12260 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85035-12180 |
AE86 |
2 | ||
| 85035-12260 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85035-12180 |
AE86 |
2 | ||
| 85035-12260 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85035-12180 |
AE86 |
2 | ||
| 85035-12260 |
AE86 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85348-12250 |
AE86..USA COLD SPEC OR W/*RW,3 WAY |
1 | ||
| 85355-87201 |
AE86..USA 2 WAY,NO.1 |
1 | ||
| 85349-14030 |
AE86..USA COLD SPEC OR W/*RW,2 WAY |
2 | ||
| 85349-12250 |
AE86..(DX,SR5)..USA COLD SPEC,W/O *RW,2 WAY,NO.2 |
1 | ||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85349-14030 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW,2 WAY,NO.2 |
1 | ||
| 85349-89122 |
AE86 2 WAY,NO.1 |
1 | ||
| 85349-12250 |
AE86..USA COLD SPEC OR W/*RW,2 WAY,NO.1 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85348-12250 |
AE86..USA COLD SPEC OR W/*RW,3 WAY |
1 | ||
| 85355-87201 |
AE86..USA 2 WAY,NO.1 |
1 | ||
| 85349-14030 |
AE86..USA COLD SPEC OR W/*RW,2 WAY |
2 | ||
| 85349-12250 |
AE86..(DX,SR5)..USA COLD SPEC,W/O *RW,2 WAY,NO.2 |
1 | ||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85349-14030 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW,2 WAY,NO.2 |
1 | ||
| 85349-89122 |
AE86 2 WAY,NO.1 |
1 | ||
| 85349-12250 |
AE86..USA COLD SPEC OR W/*RW,2 WAY,NO.1 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85348-12250 |
AE86..USA COLD SPEC OR W/*RW,3 WAY |
1 | ||
| 85355-87201 |
AE86..USA 2 WAY,NO.1 |
1 | ||
| 85349-14030 |
AE86..USA COLD SPEC OR W/*RW,2 WAY |
2 | ||
| 85349-12250 |
AE86..(DX,SR5)..USA COLD SPEC,W/O *RW,2 WAY,NO.2 |
1 | ||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85349-14030 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW,2 WAY,NO.2 |
1 | ||
| 85349-89122 |
AE86 2 WAY,NO.1 |
1 | ||
| 85349-12250 |
AE86..USA COLD SPEC OR W/*RW,2 WAY,NO.1 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE86..USA |
2 | ||
| 85355-14481 |
AE86..USA COLD SPEC OR W/*RW |
2 | ||
| 85355-20070 |
AE86 |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE86..USA |
2 | ||
| 85355-14481 |
AE86..USA COLD SPEC OR W/*RW |
2 | ||
| 85355-20070 |
AE86 |
2 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-16192 |
AE86..USA COLD SPEC,W/*RW |
1 | ||
| 85355-16192 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85355-12390 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349-14010 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
2 | ||
| 85349-89122 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349-14010 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
2 | ||
| 85349-89122 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349-14010 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
2 | ||
| 85349-89122 |
AE86..(DX,SR5)..USA |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-14080 |
AE86..USA |
1 | ||
| 85031-12250 |
AE86 |
2 | ||
| 85031-12250 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85031-12250 |
AE86..USA |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-14080 |
AE86..USA |
1 | ||
| 85031-12250 |
AE86 |
2 | ||
| 85031-12250 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85031-12250 |
AE86..USA |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
AE86..USA *H,L=300,COLD SPEC OR W/*RW |
1 | ||
| 90446-06013 |
AE86..(DX,SR5)..USA *H,L=270 |
1 | ||
| 90099-33058 |
AE86..(DX,SR5)..USA *H,L=300,COLD SPEC OR W/*RW |
1 | ||
| 90099-33058 |
AE86..(DX,SR5)..USA *H,L=300,COLD SPEC,W/O *RW |
1 | ||
| 90099-33103 |
AE86..3D..SR5 W/*RW,L=350 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
AE86..USA *H,L=300,COLD SPEC OR W/*RW |
1 | ||
| 90446-06013 |
AE86..(DX,SR5)..USA *H,L=270 |
1 | ||
| 90099-33058 |
AE86..(DX,SR5)..USA *H,L=300,COLD SPEC OR W/*RW |
1 | ||
| 90099-33058 |
AE86..(DX,SR5)..USA *H,L=300,COLD SPEC,W/O *RW |
1 | ||
| 90099-33103 |
AE86..3D..SR5 W/*RW,L=350 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
AE86..USA *H,L=370 |
1 | ||
| 90099-33299 |
AE86 *H,L=450 |
1 | ||
| 90099-33299 |
AE86..USA *H,L=410 |
1 | ||
| 90099-33299 |
AE86..USA *H,L=410,COLD SPEC OR W/*RW |
1 | ||
| 90099-33299 |
AE86..USA *H,L=370,COLD SPEC |
1 | ||
| 90099-33299 |
AE86..USA *H,L=450 |
1 | ||
| 90099-33077 |
AE86..USA L=450,COLD SPEC OR W/*RW |
1 | ||
| 90099-33299 |
AE86..USA *H,L=360,COLD SPEC |
1 | ||
| 90099-33299 |
AE86..USA *H,L=360 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
AE86..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90099-33332 |
AE86..USA COLD SPEC OR *RW,NO.1,*H,L=800 |
1 | ||
| 90099-33087 |
AE86..(DX,SR5)..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90446-07001 |
AE86..(DX,SR5)..USA *H,L=850 |
1 | ||
| 90099-33097 |
AE86..(DX,SR5)..USA *H,L=100,COLD SPEC OR W/*RW,NO.2,L=100 |
1 | ||
| 90099-33072 |
AE86..(DX,SR5)..USA L=800,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 90099-33075 |
AE86..(DX,SR5)..USA *H,L=750,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
AE86..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90099-33332 |
AE86..USA COLD SPEC OR *RW,NO.1,*H,L=800 |
1 | ||
| 90099-33087 |
AE86..(DX,SR5)..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90446-07001 |
AE86..(DX,SR5)..USA *H,L=850 |
1 | ||
| 90099-33097 |
AE86..(DX,SR5)..USA *H,L=100,COLD SPEC OR W/*RW,NO.2,L=100 |
1 | ||
| 90099-33072 |
AE86..(DX,SR5)..USA L=800,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 90099-33075 |
AE86..(DX,SR5)..USA *H,L=750,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
AE86..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90099-33332 |
AE86..USA COLD SPEC OR *RW,NO.1,*H,L=800 |
1 | ||
| 90099-33087 |
AE86..(DX,SR5)..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90446-07001 |
AE86..(DX,SR5)..USA *H,L=850 |
1 | ||
| 90099-33097 |
AE86..(DX,SR5)..USA *H,L=100,COLD SPEC OR W/*RW,NO.2,L=100 |
1 | ||
| 90099-33072 |
AE86..(DX,SR5)..USA L=800,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 90099-33075 |
AE86..(DX,SR5)..USA *H,L=750,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE86..USA *H,L=490,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=490,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=490 |
1 | ||
| 90099-33080 |
AE86..USA *H,L=30,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=30 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE86..USA *H,L=490,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=490,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=490 |
1 | ||
| 90099-33080 |
AE86..USA *H,L=30,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=30 |
1 | ||
| Common parts | ||||
| 16581-63010 | ||||
| 90989-01031 | ||||
| 90989-01034 | ||||
| 91656-40616 | ||||
(8308-8508)

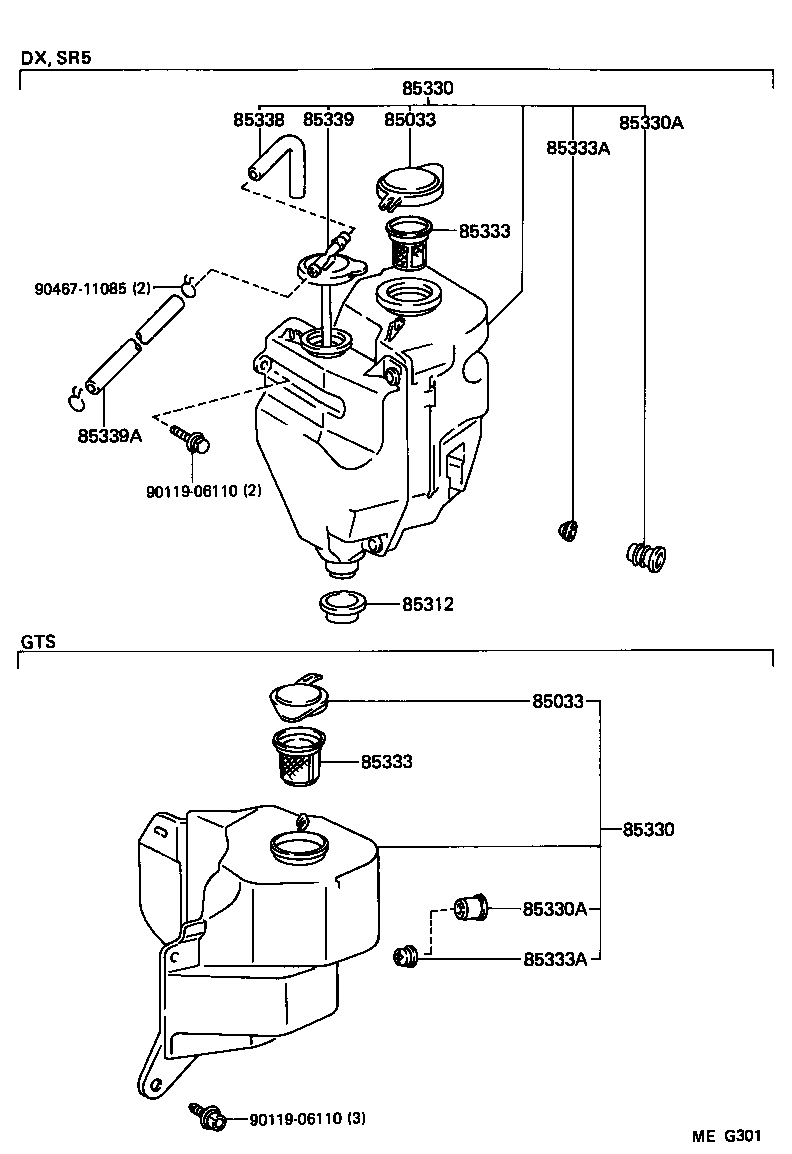

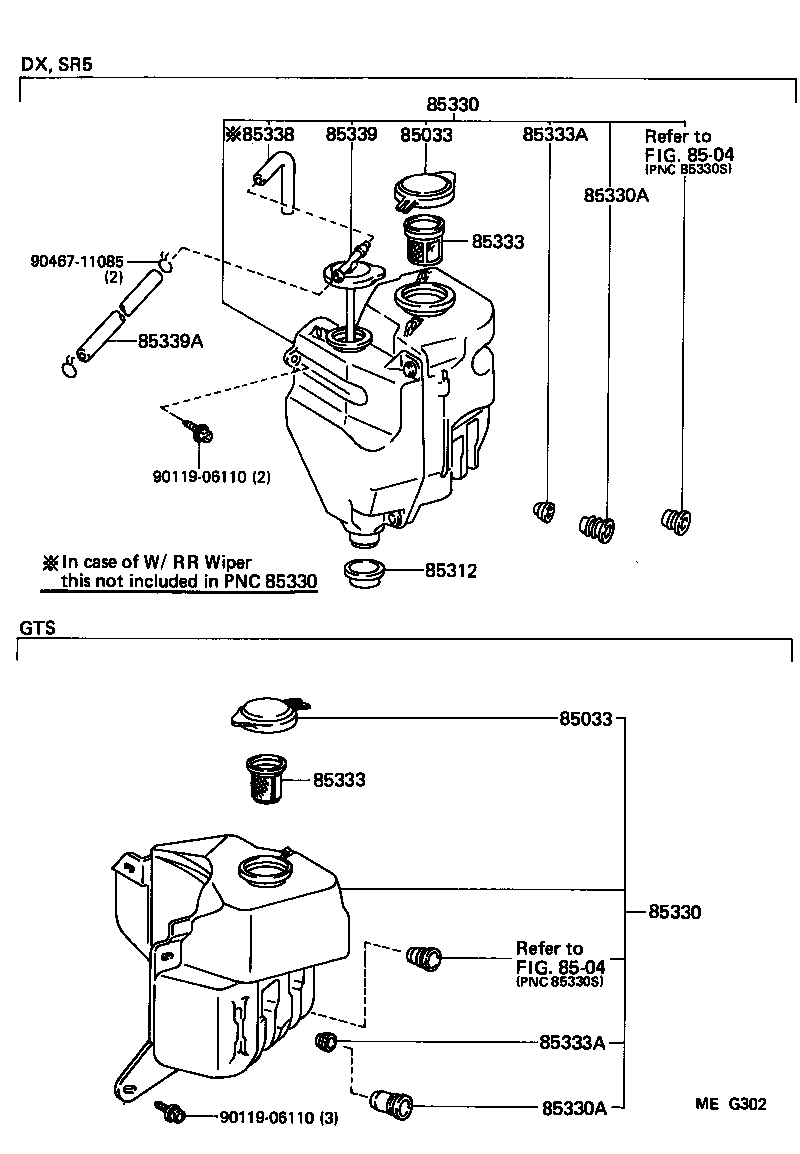

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-12320 |
AE86 |
1 | ||
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-12320 |
AE86 |
1 | ||
| 85312 - PACKING, WINDSHIELD WASHER TANK | ||||
| 85312-32010 |
AE86..DX,SR5 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-12390 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
1 | ||
| 85331-12320 |
AE86..(DX,SR5)..USA |
1 | ||
| 85331-12600 |
AE86..3D..SR5 W/*RW |
1 | ||
| 85331-12390 |
AE86..(DX,SR5)..USA COLD SPEC,W/O *RW |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-12390 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
1 | ||
| 85331-12320 |
AE86..(DX,SR5)..USA |
1 | ||
| 85331-12600 |
AE86..3D..SR5 W/*RW |
1 | ||
| 85331-12390 |
AE86..(DX,SR5)..USA COLD SPEC,W/O *RW |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32103 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 90099-32089 |
AE86..USA |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32103 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 90099-32089 |
AE86..USA |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-20010 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-20010 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85333A - FILTER, WINDSHIELD WASHER JAR, NO.2 | ||||
| 85333-20020 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85333A - FILTER, WINDSHIELD WASHER JAR, NO.2 | ||||
| 85333-20020 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85338 - HOSE, BREATHER | ||||
| 85338-16010 |
AE86..DX,SR5 |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-12010 |
AE86..DX,SR5 |
1 | ||
| 85339A - HOSE (FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
AE86..DX,SR5 |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90467-11085 | ||||
(8508- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-12320 |
AE86 |
1 | ||
| 85033 - CAP ASSY, WINDSHIELD WASHER | ||||
| 85332-12320 |
AE86 |
1 | ||
| 85312 - PACKING, WINDSHIELD WASHER TANK | ||||
| 85312-32010 |
AE86..DX,SR5 |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-12390 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
1 | ||
| 85331-12320 |
AE86..(DX,SR5)..USA |
1 | ||
| 85331-12600 |
AE86..3D..SR5 W/*RW |
1 | ||
| 85331-12390 |
AE86..(DX,SR5)..USA COLD SPEC,W/O *RW |
1 | ||
| 85330 - JAR ASSY, WINDSHIELD WASHER | ||||
| 85331-12390 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
1 | ||
| 85331-12320 |
AE86..(DX,SR5)..USA |
1 | ||
| 85331-12600 |
AE86..3D..SR5 W/*RW |
1 | ||
| 85331-12390 |
AE86..(DX,SR5)..USA COLD SPEC,W/O *RW |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32103 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 90099-32089 |
AE86..USA |
1 | ||
| 85330A - BUSH, WINDSHIELD WASHER JAR | ||||
| 90099-32103 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 90099-32089 |
AE86..USA |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-20010 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85333 - FILTER, WINDSHIELD WASHER JAR | ||||
| 85333-20010 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85333A - FILTER, WINDSHIELD WASHER JAR, NO.2 | ||||
| 85333-20020 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85333A - FILTER, WINDSHIELD WASHER JAR, NO.2 | ||||
| 85333-20020 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85338 - HOSE, BREATHER | ||||
| 85338-16010 |
AE86..DX,SR5 |
1 | ||
| 85339 - CAP SUB-ASSY, RESERVE TANK | ||||
| 85339-12010 |
AE86..DX,SR5 |
1 | ||
| 85339A - HOSE (FOR RADIATOR RESERVE TANK) | ||||
| 90445-12073 |
AE86..DX,SR5 |
1 | ||
| Common parts | ||||
| 90119-06110 | ||||
| 90467-11085 | ||||
| Linked diagrams | ||||
| 8504 | ||||
(8508- )DX,SR5
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85310 - MOTOR AND PUMP ASSY, WINDSHIELD WASHER | ||||
| 85310-22111 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85310-10140 |
AE86..USA |
1 | ||
| 85310-20130 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85310-10150 |
AE86..USA |
1 | ||
| 85310-12130 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85035-12180 |
AE86 |
2 | ||
| 85035-12260 |
AE86 |
2 | ||
| 85345 - NOZZLE, WINDSHIELD WASHER | ||||
| 85035-12150 |
AE86 |
2 | ||
| 85035-12180 |
AE86 |
2 | ||
| 85035-12260 |
AE86 |
2 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85348-12250 |
AE86..USA COLD SPEC OR W/*RW,3 WAY |
1 | ||
| 85355-87201 |
AE86..USA 2 WAY,NO.1 |
1 | ||
| 85349-14030 |
AE86..USA COLD SPEC OR W/*RW,2 WAY |
2 | ||
| 85349-12250 |
AE86..(DX,SR5)..USA COLD SPEC,W/O *RW,2 WAY,NO.2 |
1 | ||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85349-14030 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW,2 WAY,NO.2 |
1 | ||
| 85349-89122 |
AE86 2 WAY,NO.1 |
1 | ||
| 85349-12250 |
AE86..USA COLD SPEC OR W/*RW,2 WAY,NO.1 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85348-12250 |
AE86..USA COLD SPEC OR W/*RW,3 WAY |
1 | ||
| 85355-87201 |
AE86..USA 2 WAY,NO.1 |
1 | ||
| 85349-14030 |
AE86..USA COLD SPEC OR W/*RW,2 WAY |
2 | ||
| 85349-12250 |
AE86..(DX,SR5)..USA COLD SPEC,W/O *RW,2 WAY,NO.2 |
1 | ||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85349-14030 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW,2 WAY,NO.2 |
1 | ||
| 85349-89122 |
AE86 2 WAY,NO.1 |
1 | ||
| 85349-12250 |
AE86..USA COLD SPEC OR W/*RW,2 WAY,NO.1 |
1 | ||
| 85348 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85348-12250 |
AE86..USA COLD SPEC OR W/*RW,3 WAY |
1 | ||
| 85355-87201 |
AE86..USA 2 WAY,NO.1 |
1 | ||
| 85349-14030 |
AE86..USA COLD SPEC OR W/*RW,2 WAY |
2 | ||
| 85349-12250 |
AE86..(DX,SR5)..USA COLD SPEC,W/O *RW,2 WAY,NO.2 |
1 | ||
| 85348-12250 |
AE86 3 WAY |
1 | ||
| 85349-14030 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW,2 WAY,NO.2 |
1 | ||
| 85349-89122 |
AE86 2 WAY,NO.1 |
1 | ||
| 85349-12250 |
AE86..USA COLD SPEC OR W/*RW,2 WAY,NO.1 |
1 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE86..USA |
2 | ||
| 85355-14481 |
AE86..USA COLD SPEC OR W/*RW |
2 | ||
| 85355-20070 |
AE86 |
2 | ||
| 85348D - JOINT, WINDSHIELD WASHER ELBOW, NO.1 | ||||
| 85355-20070 |
AE86..USA |
2 | ||
| 85355-14481 |
AE86..USA COLD SPEC OR W/*RW |
2 | ||
| 85355-20070 |
AE86 |
2 | ||
| 85348E - JOINT, WINDSHIELD WASHER ELBOW, NO.2 | ||||
| 85355-16192 |
AE86..USA COLD SPEC,W/*RW |
1 | ||
| 85355-16192 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85355-12390 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349-14010 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
2 | ||
| 85349-89122 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349-14010 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
2 | ||
| 85349-89122 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349-14010 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
2 | ||
| 85349-89122 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349-14010 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
2 | ||
| 85349-89122 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349 - JOINT, WINDSHIELD WASHER HOSE, NO.1 | ||||
| 85355-87201 |
AE86..(DX,SR5)..USA |
1 | ||
| 85349-14010 |
AE86..(DX,SR5)..USA COLD SPEC OR W/*RW |
2 | ||
| 85349-89122 |
AE86..(DX,SR5)..USA |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-14080 |
AE86..USA |
1 | ||
| 85031-12250 |
AE86 |
2 | ||
| 85031-12250 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85031-12250 |
AE86..USA |
1 | ||
| 85355 - VALVE, WINDSHIELD WASHER HOSE | ||||
| 85031-14080 |
AE86..USA |
1 | ||
| 85031-12250 |
AE86 |
2 | ||
| 85031-12250 |
AE86..USA COLD SPEC OR W/*RW |
1 | ||
| 85031-12250 |
AE86..USA |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
AE86..USA *H,L=300,COLD SPEC OR W/*RW |
1 | ||
| 90446-06013 |
AE86..(DX,SR5)..USA *H,L=270 |
1 | ||
| 90099-33058 |
AE86..(DX,SR5)..USA *H,L=300,COLD SPEC OR W/*RW |
1 | ||
| 90099-33058 |
AE86..(DX,SR5)..USA *H,L=300,COLD SPEC,W/O *RW |
1 | ||
| 90099-33103 |
AE86..3D..SR5 W/*RW,L=350 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
AE86..USA *H,L=300,COLD SPEC OR W/*RW |
1 | ||
| 90446-06013 |
AE86..(DX,SR5)..USA *H,L=270 |
1 | ||
| 90099-33058 |
AE86..(DX,SR5)..USA *H,L=300,COLD SPEC OR W/*RW |
1 | ||
| 90099-33058 |
AE86..(DX,SR5)..USA *H,L=300,COLD SPEC,W/O *RW |
1 | ||
| 90099-33103 |
AE86..3D..SR5 W/*RW,L=350 |
1 | ||
| 85371 - HOSE, WINDSHIELD WASHER (FROM MOTOR TO JOINT) | ||||
| 90099-33299 |
AE86..USA *H,L=300,COLD SPEC OR W/*RW |
1 | ||
| 90446-06013 |
AE86..(DX,SR5)..USA *H,L=270 |
1 | ||
| 90099-33058 |
AE86..(DX,SR5)..USA *H,L=300,COLD SPEC OR W/*RW |
1 | ||
| 90099-33058 |
AE86..(DX,SR5)..USA *H,L=300,COLD SPEC,W/O *RW |
1 | ||
| 90099-33103 |
AE86..3D..SR5 W/*RW,L=350 |
1 | ||
| 85372 - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.1 | ||||
| 90099-33299 |
AE86..USA *H,L=370 |
1 | ||
| 90099-33299 |
AE86 *H,L=450 |
1 | ||
| 90099-33299 |
AE86..USA *H,L=410 |
1 | ||
| 90099-33299 |
AE86..USA *H,L=410,COLD SPEC OR W/*RW |
1 | ||
| 90099-33299 |
AE86..USA *H,L=370,COLD SPEC |
1 | ||
| 90099-33299 |
AE86..USA *H,L=450 |
1 | ||
| 90099-33077 |
AE86..USA L=450,COLD SPEC OR W/*RW |
1 | ||
| 90099-33299 |
AE86..USA *H,L=360,COLD SPEC |
1 | ||
| 90099-33299 |
AE86..USA *H,L=360 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
AE86..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90099-33332 |
AE86..USA COLD SPEC OR *RW,NO.1,*H,L=800 |
1 | ||
| 90099-33087 |
AE86..(DX,SR5)..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90446-07001 |
AE86..(DX,SR5)..USA *H,L=850 |
1 | ||
| 90099-33097 |
AE86..(DX,SR5)..USA *H,L=100,COLD SPEC OR W/*RW,NO.2,L=100 |
1 | ||
| 90099-33072 |
AE86..(DX,SR5)..USA L=800,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 90099-33075 |
AE86..(DX,SR5)..USA *H,L=750,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
AE86..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90099-33332 |
AE86..USA COLD SPEC OR *RW,NO.1,*H,L=800 |
1 | ||
| 90099-33087 |
AE86..(DX,SR5)..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90446-07001 |
AE86..(DX,SR5)..USA *H,L=850 |
1 | ||
| 90099-33097 |
AE86..(DX,SR5)..USA *H,L=100,COLD SPEC OR W/*RW,NO.2,L=100 |
1 | ||
| 90099-33072 |
AE86..(DX,SR5)..USA L=800,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 90099-33075 |
AE86..(DX,SR5)..USA *H,L=750,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
AE86..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90099-33332 |
AE86..USA COLD SPEC OR *RW,NO.1,*H,L=800 |
1 | ||
| 90099-33087 |
AE86..(DX,SR5)..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90446-07001 |
AE86..(DX,SR5)..USA *H,L=850 |
1 | ||
| 90099-33097 |
AE86..(DX,SR5)..USA *H,L=100,COLD SPEC OR W/*RW,NO.2,L=100 |
1 | ||
| 90099-33072 |
AE86..(DX,SR5)..USA L=800,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 90099-33075 |
AE86..(DX,SR5)..USA *H,L=750,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
AE86..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90099-33332 |
AE86..USA COLD SPEC OR *RW,NO.1,*H,L=800 |
1 | ||
| 90099-33087 |
AE86..(DX,SR5)..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90446-07001 |
AE86..(DX,SR5)..USA *H,L=850 |
1 | ||
| 90099-33097 |
AE86..(DX,SR5)..USA *H,L=100,COLD SPEC OR W/*RW,NO.2,L=100 |
1 | ||
| 90099-33072 |
AE86..(DX,SR5)..USA L=800,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 90099-33075 |
AE86..(DX,SR5)..USA *H,L=750,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 85372B - HOSE, WINDSHIELD WASHER (FROM JOINT TO JOINT), NO.2 | ||||
| 90099-33299 |
AE86..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90099-33332 |
AE86..USA COLD SPEC OR *RW,NO.1,*H,L=800 |
1 | ||
| 90099-33087 |
AE86..(DX,SR5)..USA *H,L=40,COLD SPEC OR W/*RW,NO.2 |
1 | ||
| 90446-07001 |
AE86..(DX,SR5)..USA *H,L=850 |
1 | ||
| 90099-33097 |
AE86..(DX,SR5)..USA *H,L=100,COLD SPEC OR W/*RW,NO.2,L=100 |
1 | ||
| 90099-33072 |
AE86..(DX,SR5)..USA L=800,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 90099-33075 |
AE86..(DX,SR5)..USA *H,L=750,COLD SPEC OR W/*RW,NO.1 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE86..USA *H,L=490,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=490,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=490 |
1 | ||
| 90099-33080 |
AE86..USA *H,L=30,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=30 |
1 | ||
| 85373 - HOSE, WINDSHIELD WASHER (FROM JOINT TO NOZZLE) | ||||
| 90099-33080 |
AE86..USA *H,L=490,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=490,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=490 |
1 | ||
| 90099-33080 |
AE86..USA *H,L=30,COLD SPEC OR W/*RW |
1 | ||
| 90099-33080 |
AE86..USA *H,L=30 |
1 | ||
| Common parts | ||||
| 16581-63010 | ||||
| 90989-01034 | ||||
| Linked diagrams | ||||
| 8504 | ||||
Part Price Details
Loading price information...
Part Number:
Price:
