AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

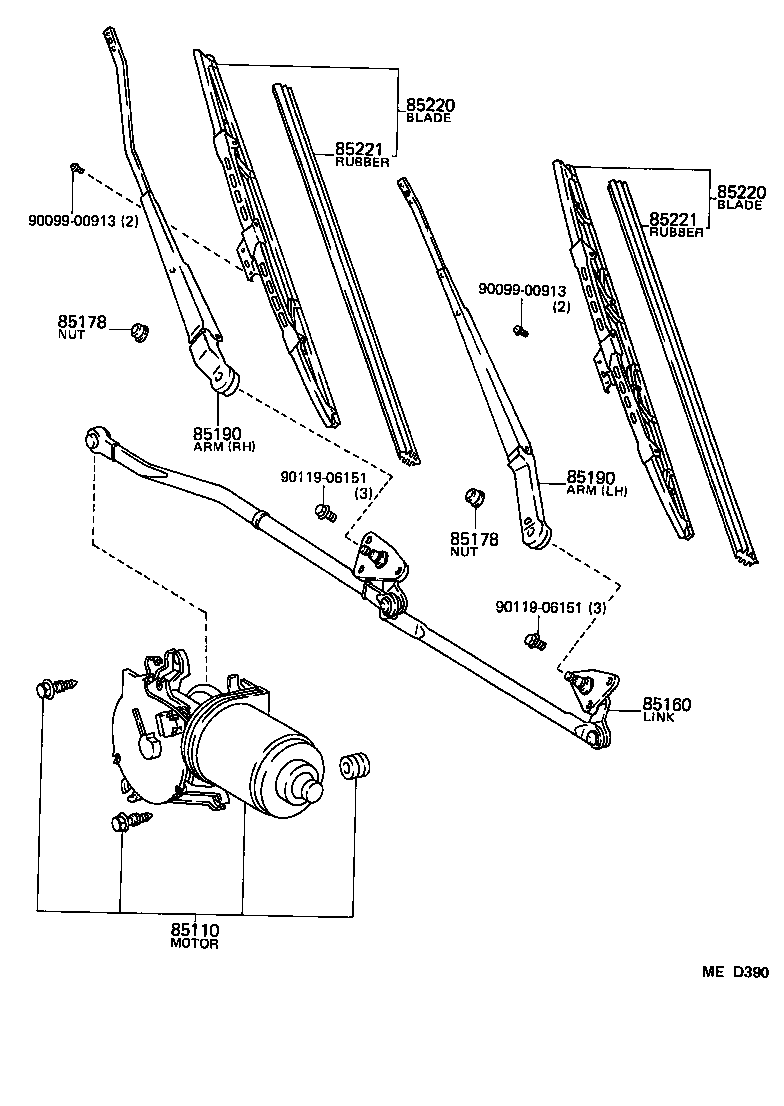

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 85110 - MOTOR ASSY, WINDSHIELD WIPER | ||||
| 85110-12330 |
AE86..USA COLD SPEC |
1 | ||
| 85110-12320 |
AE86..USA |
1 | ||
| 85110-12580 |
AE86..USA COLD SPEC |
1 | ||
| 85110-12570 |
AE86..USA |
1 | ||
| 85110-12581 |
AE86..USA COLD SPEC |
1 | ||
| 85160 - LINK ASSY, WINDSHIELD WIPER | ||||
| 85160-12380 |
AE86 |
1 | ||
| 85160-12381 |
AE86 |
1 | ||
| 85160-12380 |
AE86..USA COLD SPEC |
1 | ||
| 85160-12370 |
AE86..USA |
1 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08033 |
AE86 |
2 | ||
| 90176-08029 |
AE86 |
2 | ||
| 85178 - NUT (FOR FRONT WIPER ARM SETTING) | ||||
| 90176-08033 |
AE86 |
2 | ||
| 90176-08029 |
AE86 |
2 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-12600 |
AE86 LH |
1 | ||
| 85210-12230 |
AE86 RH |
1 | ||
| 85210-12140 |
AE86 RH |
1 | ||
| 85190 - ARM ASSY, WINDSHIELD WIPER | ||||
| 85190-12600 |
AE86 LH |
1 | ||
| 85210-12230 |
AE86 RH |
1 | ||
| 85210-12140 |
AE86 RH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-12510 |
AE86 RH |
1 | ||
| 85220-32280 |
AE86 LH |
1 | ||
| 85220 - BLADE ASSY, WINDSHIELD WIPER | ||||
| 85220-12510 |
AE86 RH |
1 | ||
| 85220-32280 |
AE86 LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-12210 |
AE86 RH |
1 | ||
| 85221-32060 |
AE86 LH |
1 | ||
| 85221 - BLADE, WINDSHIELD WIPER | ||||
| 85221-12210 |
AE86 RH |
1 | ||
| 85221-32060 |
AE86 LH |
1 | ||
| Common parts | ||||
| 90099-00913 | ||||
| 90119-06151 | ||||
