AE86L-ECMXCA (1983)
Toyota Corolla Cp
(8308- )

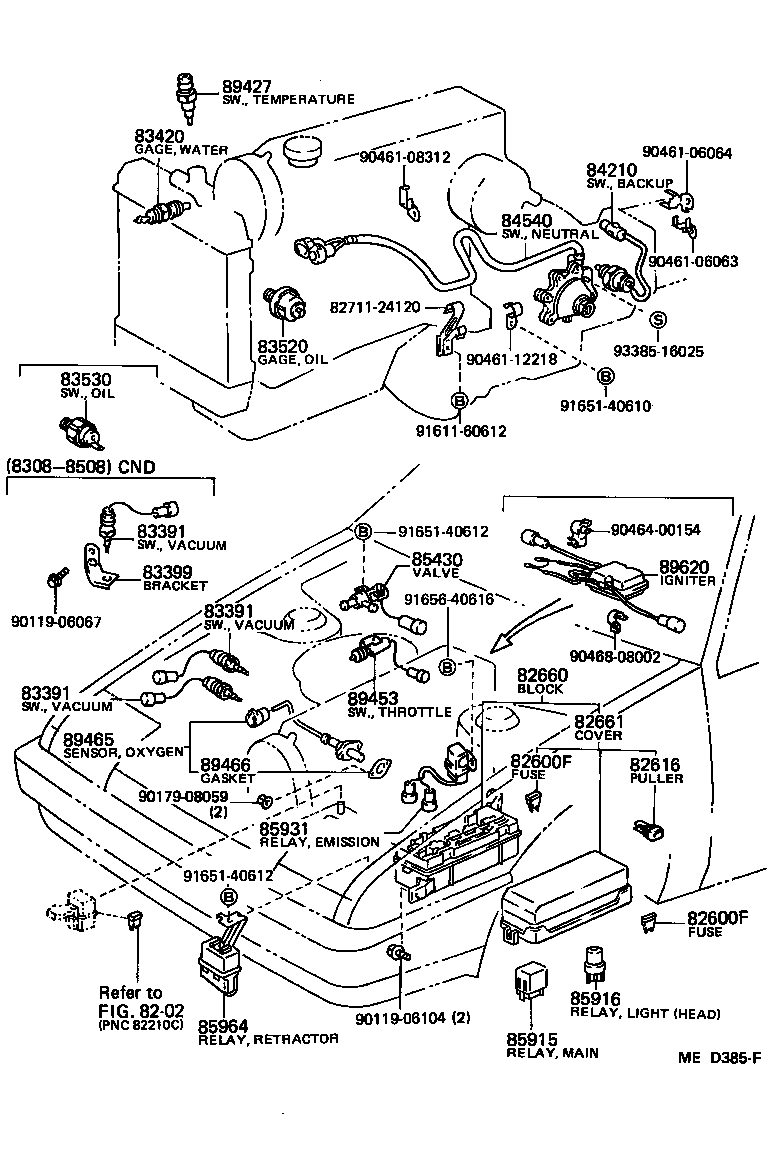

| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE86 30A,GREEN,30A |
1 | ||
| 90982-09005 |
AE86 7.5A,7.5A |
6 | ||
| 90982-09004 |
AE86 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
AE86 10A,10A |
9 | ||
| 90982-09003 |
AE86 15A,15A |
5 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-09004 |
AE86 20A,YELLOW,20A |
1 | ||
| 90982-07011 |
AE86 30A,GREEN,30A |
1 | ||
| 90982-09005 |
AE86 7.5A,7.5A |
6 | ||
| 90982-09002 |
AE86 10A,10A |
9 | ||
| 90982-09003 |
AE86 15A,15A |
5 | ||
| 82616 - PULLER, FUSE | ||||
| 82616-12010 |
AE86 |
1 | ||
| 82660 - BLOCK ASSY, RELAY, ENGINE ROOM | ||||
| 82660-12100 |
AE86 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12100 |
AE86 NO.2 |
1 | ||
| 82661-12110 |
AE86 ENGINE ROOM |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16060 |
AE86..DX,SR5 MARK=200B |
1 | ||
| 83391-16040 |
AE86..(DX,SR5)..USA MARK=80M |
1 | ||
| 83391-12150 |
AE86..(DX,SR5)..USA MARK=80FM |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16060 |
AE86..DX,SR5 MARK=200B |
1 | ||
| 83391-16040 |
AE86..(DX,SR5)..USA MARK=80M |
1 | ||
| 83391-12150 |
AE86..(DX,SR5)..USA MARK=80FM |
1 | ||
| 83391 - SWITCH, VACUUM | ||||
| 83391-16060 |
AE86..DX,SR5 MARK=200B |
1 | ||
| 83391-16040 |
AE86..(DX,SR5)..USA MARK=80M |
1 | ||
| 83391-12150 |
AE86..(DX,SR5)..USA MARK=80FM |
1 | ||
| 83420 - GAGE ASSY, WATER TEMPERATURE SENDER | ||||
| 83420-20020 |
AE86 |
1 | ||
| 83520 - GAGE ASSY,OIL PRESSURE SENDER | ||||
| 83520-14022 |
AE86 |
1 | ||
| 83520-14023 |
AE86 |
1 | ||
| 83520-55011 |
AE86 |
1 | ||
| 84210 - SWITCH ASSY, BACK-UP LAMP | ||||
| 84210-10051 |
AE86..5F |
1 | ||
| 85430 - VALVE, OUTER VENT CONTROL | ||||
| 90925-09010 |
AE86..(DX,SR5)..USA |
1 | ||
| 85430-12040 |
AE86..(DX,SR5)..USA |
1 | ||
| 85915 - RELAY, MAIN | ||||
| 90987-04002 |
AE86 |
1 | ||
| 85913-30020 |
AE86 |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AE86 |
2 | ||
| 85931 - RELAY, EMISSION CONTROL | ||||
| 85931-14020 |
AE86..(DX,SR5)..USA |
1 | ||
| 85964 - RELAY, LIGHT RETRACTOR | ||||
| 85964-12010 |
AE86 |
1 | ||
| 89427 - SWITCH, TEMPERATURE DETECT | ||||
| 89427-16020 |
AE86..(DX,SR5)..USA |
1 | ||
| 89453 - SWITCH, THROTTLE POSITION (FOR T.C.S.) | ||||
| 89453-12010 |
AE86..(DX,SR5)..USA |
1 | ||
| 89465 - SENSOR, OXYGEN | ||||
| 89465-29075 |
AE86..(DX,SR5)..USA |
1 | ||
| 89465-29055 |
AE86..(DX,SR5)..USA |
1 | ||
| 89466 - GASKET, OXYGEN SENSOR | ||||
| 89466-30010 |
AE86..USA |
1 | ||
| Common parts | ||||
| 82711-24120 | ||||
| 90119-06067 | ||||
| 90119-06104 | ||||
| 90179-08059 | ||||
| 90461-06063 | ||||
| 90461-06064 | ||||
| 90461-08312 | ||||
| 90461-12218 | ||||
| 90464-00154 | ||||
| 90468-08002 | ||||
| 91611-60612 | ||||
| 91651-40610 | ||||
| 91651-40612 | ||||
| 91656-40616 | ||||
| 93385-16025 | ||||
| Linked diagrams | ||||
| 8202 | ||||

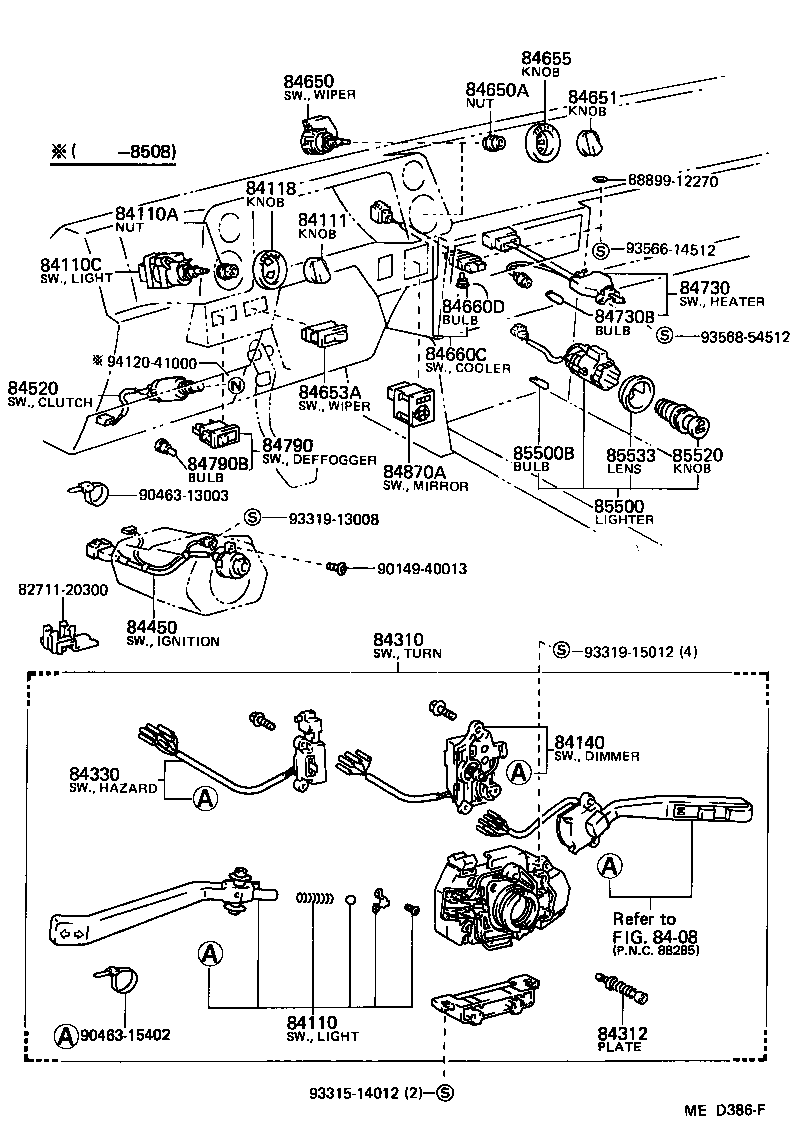

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 84110 - SWITCH ASSY, LIGHT CONTROL, NO.1 | ||||
| 84112-19575 |
AE86 |
1 | ||
| 84110A - BOLT OR NUT, LIGHT CONTROL SWITCH SET | ||||
| 90179-14010 |
AE86 |
1 | ||
| 84110C - SWITCH ASSY, LIGHT CONTROL, NO.2 | ||||
| 84110-12080 |
AE86 |
1 | ||
| 84111 - KNOB, LIGHT CONTROL SWITCH | ||||
| 84111-12060 |
AE86 |
1 | ||
| 84118 - KNOB, LIGHT CONTROL RHEOSTAT | ||||
| 84118-12060 |
AE86 |
1 | ||
| 84140 - SWITCH ASSY, HEADLAMP DIMMER | ||||
| 84140-19315 |
AE86 |
1 | ||
| 84310 - SWITCH ASSY, TURN SIGNAL | ||||
| 84310-12770 |
AE86..USA W/*CRC |
1 | ||
| 84310-12770 |
AE86 W/*CRC |
1 | ||
| 84310-12540 |
AE86 |
1 | ||
| 84312 - PLATE, HORN CONTACT | ||||
| 84312-32020 |
AE86 |
1 | ||
| 84330 - SWITCH ASSY, HAZARD WARNING SIGNAL | ||||
| 84332-19285 |
AE86 |
1 | ||
| 84450 - SWITCH ASSY, IGNITION OR STARTER | ||||
| 84450-12130 |
AE86 |
1 | ||
| 84520 - SWITCH ASSY, CLUTCH START | ||||
| 84520-17020 |
AE86..5F |
1 | ||
| 84520-12010 |
AE86..5F |
1 | ||
| 84650 - SWITCH ASSY, WINDSHIELD WIPER | ||||
| 84650-12080 |
AE86 W/*IW |
1 | ||
| 84650A - BOLT OR NUT, WINDSHIELD WIPER SWITCH SET | ||||
| 90179-14010 |
AE86 |
1 | ||
| 84651 - KNOB, WINDSHIELD WIPER SWITCH | ||||
| 84651-12040 |
AE86 |
1 | ||
| 84653A - SWITCH, REAR WIPER | ||||
| 84653-12120 |
AE86..3D |
1 | ||
| 84655 - KNOB, WINDSHIELD WIPER VOLUME SWITCH | ||||
| 84118-12040 |
AE86 |
1 | ||
| 84660C - SWITCH, COOLER | ||||
| 84660-12080 |
AE86 |
1 | ||
| 84660D - BULB(FOR COOLER SWITCH) | ||||
| 88607-12010 |
AE86 |
2 | ||
| 84730 - SWITCH ASSY, HEATER BLOWER | ||||
| 84732-12140 |
AE86 |
1 | ||
| 84730B - BULB, HEATER BLOWER SWITCH | ||||
| 90981-11014 |
AE86 14V 1.4W,12V 1.4W |
1 | ||
| 84790 - SWITCH ASSY, REAR WINDOW DEFOGGER | ||||
| 84790-12160 |
AE86 |
1 | ||
| 84790-12190 |
AE86 |
1 | ||
| 84790B - BULB(FOR REAR WINDOW DEFOGGER SWITCH) | ||||
| 84999-10110 |
AE86 12V 1.12W,12V 1.1W |
1 | ||
| 84999-10130 |
AE86 12V 0.56W |
2 | ||
| 84870A - SWITCH ASSY, OUTER MIRROR | ||||
| 84870-22040 |
AE86..GTS,SR5 |
1 | ||
| 85500 - LIGHTER ASSY, CIGARETTE | ||||
| 85500-12190 |
AE86 |
1 | ||
| 85500B - BULB, CIGARETTE LIGHTER | ||||
| 90981-11014 |
AE86 14V 1.4W,12V 1.4W |
1 | ||
| 85520 - KNOB AND ELEMENT ASSY, CIGARETTE LIGHTER | ||||
| 85520-14030 |
AE86 |
1 | ||
| 85533 - LENS, CIGARETTE LIGHTER INDICATOR | ||||
| 85533-20011 |
AE86 |
1 | ||
| Common parts | ||||
| 82711-20300 | ||||
| 88899-12270 | ||||
| 90149-40013 | ||||
| 90463-13003 | ||||
| 90463-15402 | ||||
| 93315-14012 | ||||
| 93319-13008 | ||||
| 93319-15012 | ||||
| 93566-14512 | ||||
| 93568-54512 | ||||
| 94120-41000 | ||||
| Linked diagrams | ||||
| 8408 | ||||

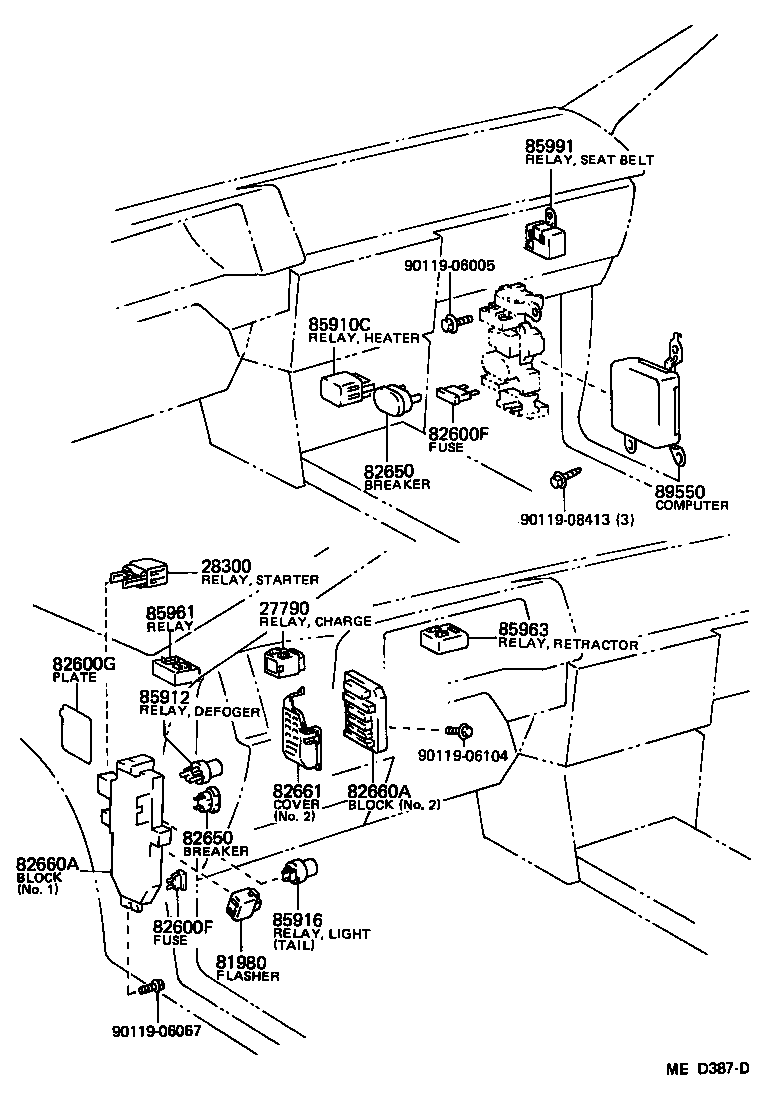

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 27790 - RELAY ASSY, CHARGE LAMP | ||||
| 27790-13010 |
4AC..AE86..USA |
1 | ||
| 28300 - RELAY ASSY, STARTER | ||||
| 28300-16010 |
4A#..AE86..5F |
1 | ||
| 81980 - FLASHER ASSY, TURN SIGNAL | ||||
| 81980-22070 |
AE86 |
1 | ||
| 81980-16010 |
AE86 |
1 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE86 30A,GREEN,30A |
1 | ||
| 90982-09005 |
AE86 7.5A,7.5A |
6 | ||
| 90982-09004 |
AE86 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
AE86 10A,10A |
9 | ||
| 90982-09003 |
AE86 15A,15A |
5 | ||
| 82600F - FUSE, FUSE BLOCK | ||||
| 90982-07011 |
AE86 30A,GREEN,30A |
1 | ||
| 90982-09005 |
AE86 7.5A,7.5A |
6 | ||
| 90982-09004 |
AE86 20A,YELLOW,20A |
1 | ||
| 90982-09002 |
AE86 10A,10A |
9 | ||
| 90982-09003 |
AE86 15A,15A |
5 | ||
| 82600G - PLATE, CAUTION(FOR FUSE) | ||||
| 82683-12080 |
AE86 |
1 | ||
| 82683-12100 |
AE86 |
1 | ||
| 82683-12081 |
AE86 |
1 | ||
| 82683-12082 |
AE86 |
1 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE86 30A,30A |
3 | ||
| 82650 - BREAKER ASSY, WIRING CIRCUIT, NO.1 | ||||
| 82650-20011 |
AE86 30A,30A |
3 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-12130 |
AE86 NO.1 |
1 | ||
| 82660-12220 |
AE86 NO.2 |
1 | ||
| 82660A - BLOCK ASSY, RELAY, COWL SIDE | ||||
| 82660-12130 |
AE86 NO.1 |
1 | ||
| 82660-12220 |
AE86 NO.2 |
1 | ||
| 82661 - COVER, RELAY BLOCK, NO.1 | ||||
| 82661-12100 |
AE86 NO.2 |
1 | ||
| 82661-12110 |
AE86 ENGINE ROOM |
1 | ||
| 85910C - RELAY ASSY (FOR HEATER BLOWER MOTOR) | ||||
| 85913-30020 |
AE86 |
1 | ||
| 90987-04002 |
AE86 |
1 | ||
| 85912 - RELAY, DEFOGGER | ||||
| 90987-02002 |
AE86 MARUKO |
1 | ||
| 90987-02004 |
AE86 |
1 | ||
| 90987-02004 |
AE86 DENSO |
1 | ||
| 85916 - RELAY, LIGHT CONTROL | ||||
| 90987-01003 |
AE86 |
2 | ||
| 85961 - RELAY, HEADLAMP RETAINER | ||||
| 85961-24010 |
AE86..GTS,SR5 |
1 | ||
| 85963 - RELAY, LIGHT RETRACTOR CONTROL | ||||
| 85963-14011 |
AE86 |
1 | ||
| 85991 - RELAY, SEAT BELT WARNING | ||||
| 85991-12050 |
AE86 |
1 | ||
| 85991-12020 |
AE86 |
1 | ||
| 89550 - COMPUTER ASSY, EMISSION CONTROL | ||||
| 89550-12681 |
AE86..(DX,SR5)..USA |
1 | ||
| 89550-12680 |
AE86..USA |
1 | ||
| 89550-12691 |
AE86..(DX,SR5)..USA W/*CAL |
1 | ||
| 89550-12860 |
AE86..(DX,SR5)..USA |
1 | ||
| 89550-12690 |
AE86..USA W/*CAL |
1 | ||
| 89550-12870 |
AE86..SR5..USA W/*CAL |
1 | ||
| Common parts | ||||
| 90119-06005 | ||||
| 90119-06067 | ||||
| 90119-06104 | ||||
| 90119-08413 | ||||

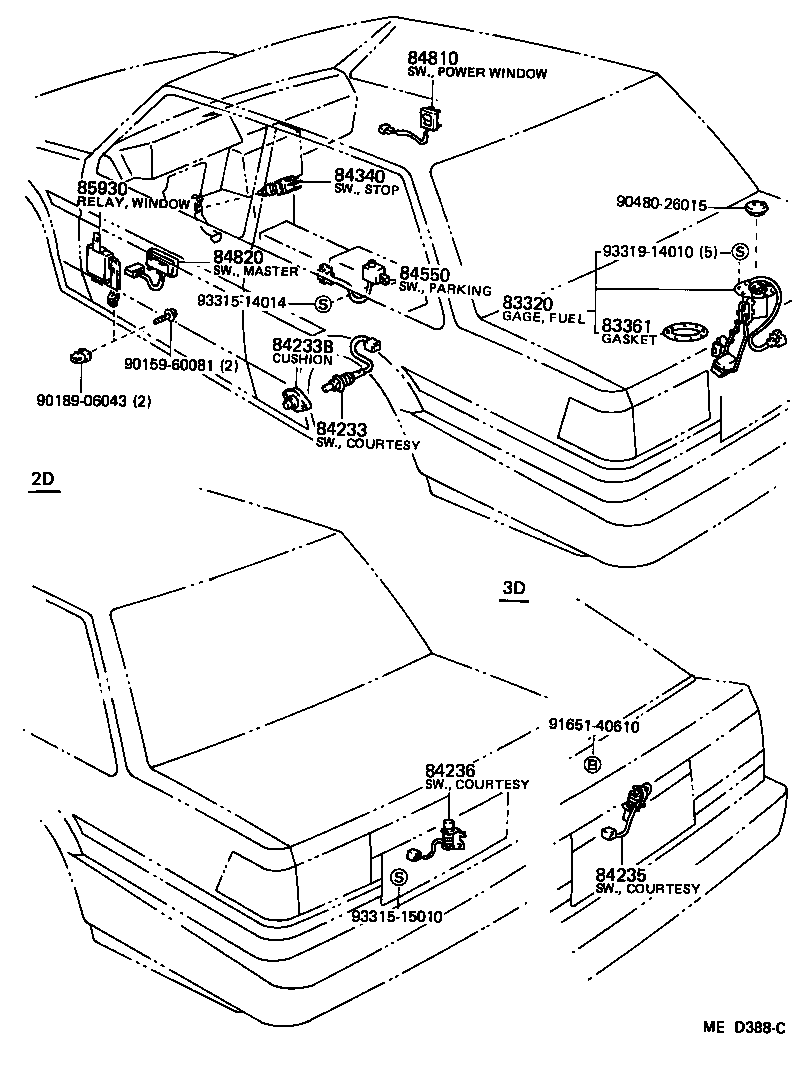

(8308- )
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 83320 - GAGE ASSY, FUEL SENDER | ||||
| 83320-19885 |
AE86 |
1 | ||
| 83320-80039 |
AE86 |
1 | ||
| 83320-19715 |
AE86 |
1 | ||
| 83361 - GASKET, FUEL SENDER GAGE | ||||
| 77169-14020 |
AE86 |
1 | ||
| 84233 - SWITCH ASSY, COURTESY LAMP (FOR FRONT DOOR) | ||||
| 84230-12131 |
AE86 |
2 | ||
| 84230-12130 |
AE86 |
2 | ||
| 84233B - CUSHION, COURTESY SWITCH (FOR FRONT DOOR) | ||||
| 84234-24010 |
AE86 |
2 | ||
| 84235 - SWITCH ASSY, COURTESY LAMP(FOR BACK DOOR) | ||||
| 84231-32010 |
AE86..3D |
1 | ||
| 84340 - SWITCH ASSY, STOP LAMP | ||||
| 84340-32010 |
AE86 |
1 | ||
| 84340-22110 |
AE86 W/*CRC,TOKAIRIKA |
1 | ||
| 84340-30030 |
AE86 MATSUSHITA |
1 | ||
| 84340-32010 |
AE86 TOKAIRIKA |
1 | ||
| 84340-20030 |
AE86 W/*CRC |
1 | ||
| 84340-22100 |
AE86 W/*CRC,MATSUSHITA |
1 | ||
| 84340-22100 |
AE86..USA W/*CRC,MATSUSHITA |
1 | ||
| 84340-22110 |
AE86..USA W/*CRC,TOKAIRIKA |
1 | ||
| 84550 - SWITCH ASSY, PARKING BRAKE | ||||
| 84550-12060 |
AE86 |
1 | ||
| Common parts | ||||
| 90159-60081 | ||||
| 90189-06043 | ||||
| 90480-26015 | ||||
| 91651-40610 | ||||
| 93315-14014 | ||||
| 93315-15010 | ||||
| 93319-14010 | ||||
