AE86L-ECMXCA (1983)
Toyota Corolla Cp
Production
Aug 1983
-
Jul 1987
Engine
4AC
Transmission
3D MTM
Displacement
2500cc
Power
168 HP (125 kW)
(8308- )

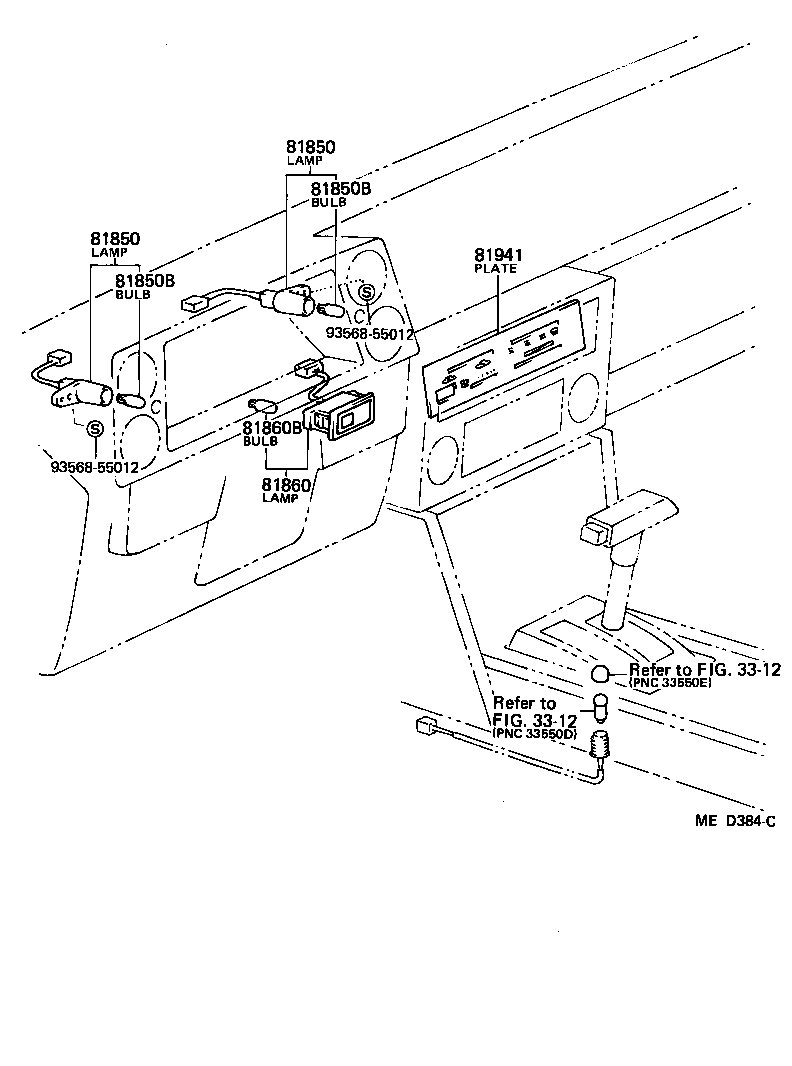

Click highlighted areas on diagram
| Part # | Description | Qty | Price | |
|---|---|---|---|---|
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-12180 |
AE86 |
2 | ||
| 81850 - LAMP ASSY, INDICATOR | ||||
| 81850-12180 |
AE86 |
2 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 90981-11018 |
AE86 12V 1.2W W/O SOCKET,12V 1.4W |
2 | ||
| 81850B - BULB, INDICATOR LAMP | ||||
| 90981-11018 |
AE86 12V 1.2W W/O SOCKET,12V 1.4W |
2 | ||
| 81941 - PLATE, HEATER CONTROL NAME | ||||
| 55519-12041 |
AE86..USA W/*BV |
1 | ||
| 55519-12040 |
AE86..USA W/*BV |
1 | ||
| 55519-12030 |
AE86 |
1 | ||
| 55519-12031 |
AE86 |
1 | ||
| 55519-12042 |
AE86..USA W/*BV |
1 | ||
| 55519-12032 |
AE86 |
1 | ||
| 55519-12060 |
AE86..USA W/O HEATER & *BV |
1 | ||
| 55519-12070 |
AE86 W/HEATER & COOLER |
1 | ||
| 55519-12071 |
AE86 W/HEATER & COOLER |
1 | ||
| 55519-12061 |
AE86..USA W/O HEATER & *BV |
1 | ||
| Common parts | ||||
| 93568-55012 | ||||
| Linked diagrams | ||||
| 3312 | ||||
