AE86L-ECMXCA (1983)

Toyota Corolla Cp

Production Aug 1983 - Jul 1987
Engine 4AC
Transmission 3D MTM
Displacement 2500cc
Power 168 HP (125 kW)

(8308- )

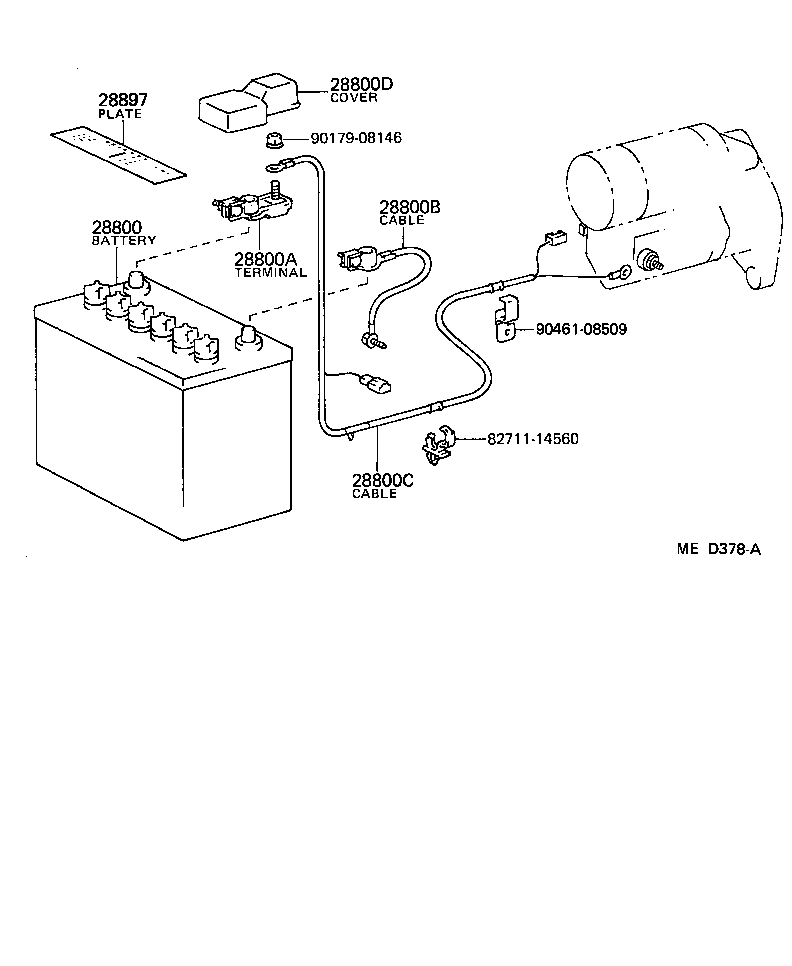

Click highlighted areas on diagram

diagram 28800 28800A 28800B 28800C 28800D 28897 8271114560 9017908146 9046108509
Part # Description Qty Price
28800 - BATTERY
28800-43090

4A#..AE86..USA

50D20L-MF(12V 50AH-20HR)

 1
28800-31200

4A#..AE86..USA

50D20L,50D20L-MF(12V 50AH-20HR)

 1
28800-31031

4A#..AE86..USA

32C24L,N40L(12V 40AH-20HR)

 1
28800-43070

4A#..AE86

55D23L-MF(12V 60AH-20HR)

 1
28800-31190

4A#..AE86..USA

50D20L-MF(12V 50AH-20HR)

 1
28800-15050

4A#..AE86

55D23L,55D23L-MF(12V 60AH-20HR)

 1
28800A - TERMINAL, BATTERY POSITIVE
90982-05030

4A#..AE86

 1
90982-05029

4A#..AE86

 1
28800B - CABLE, BATTERY TO GROUND
82123-12090

4A#..AE86

 1
28800C - CABLE, BATTERY TO STARTER(FOR BATTERY TO MAIN SWITCH)
82122-12180

4AC..AE86

 1
28800D - COVER, CONNECTOR(FOR BATTERY TERMINAL)
82821-12190

4A#..AE86

 1
28897 - PLATE, BATTERY CAUTION
28898-26010

4A#..AE86..USA

DISTRIBUTOR NAME

 1
28897-26010

4A#..AE86..USA

POISON/DANGER

 1
Common parts
82711-14560
90179-08146
90461-08509
